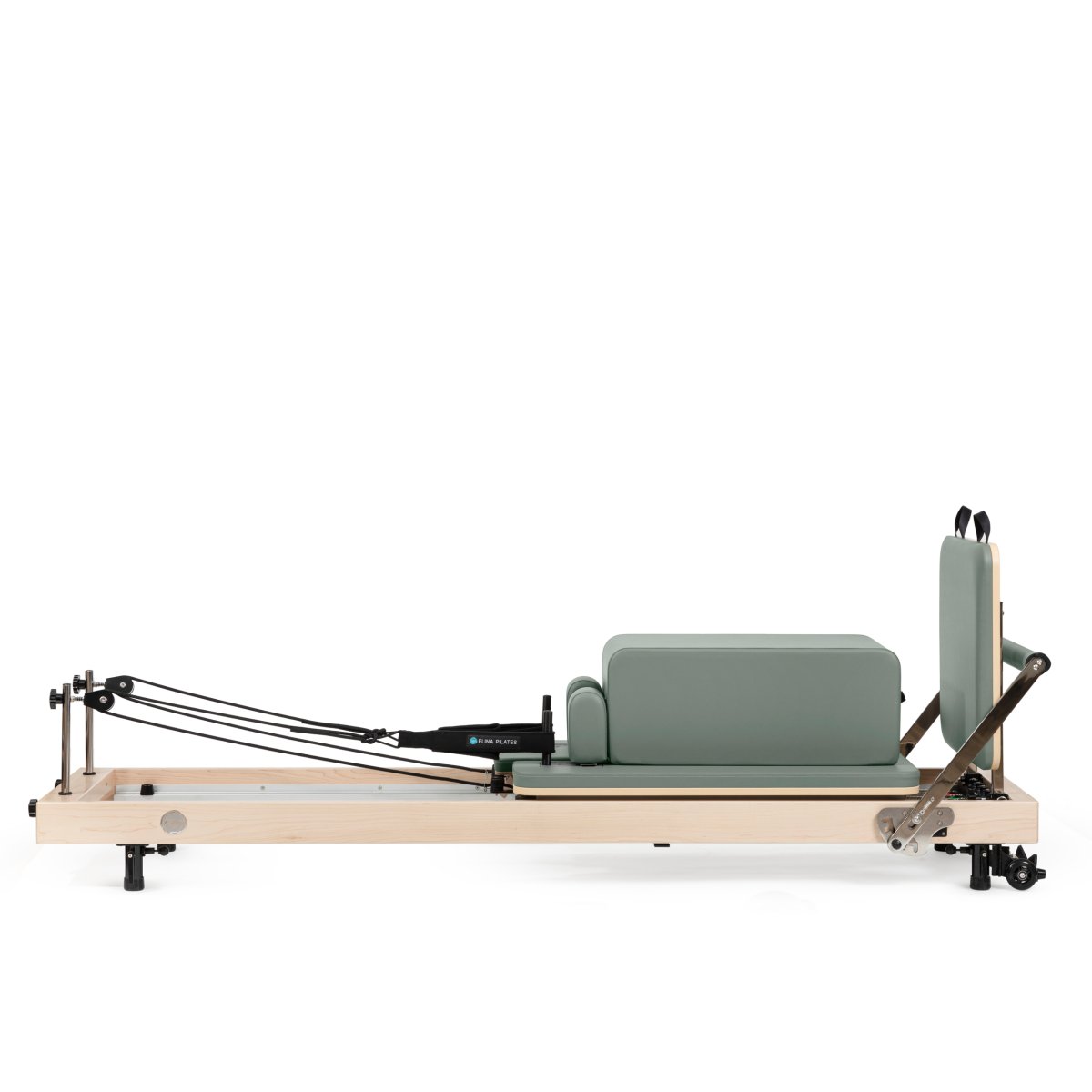

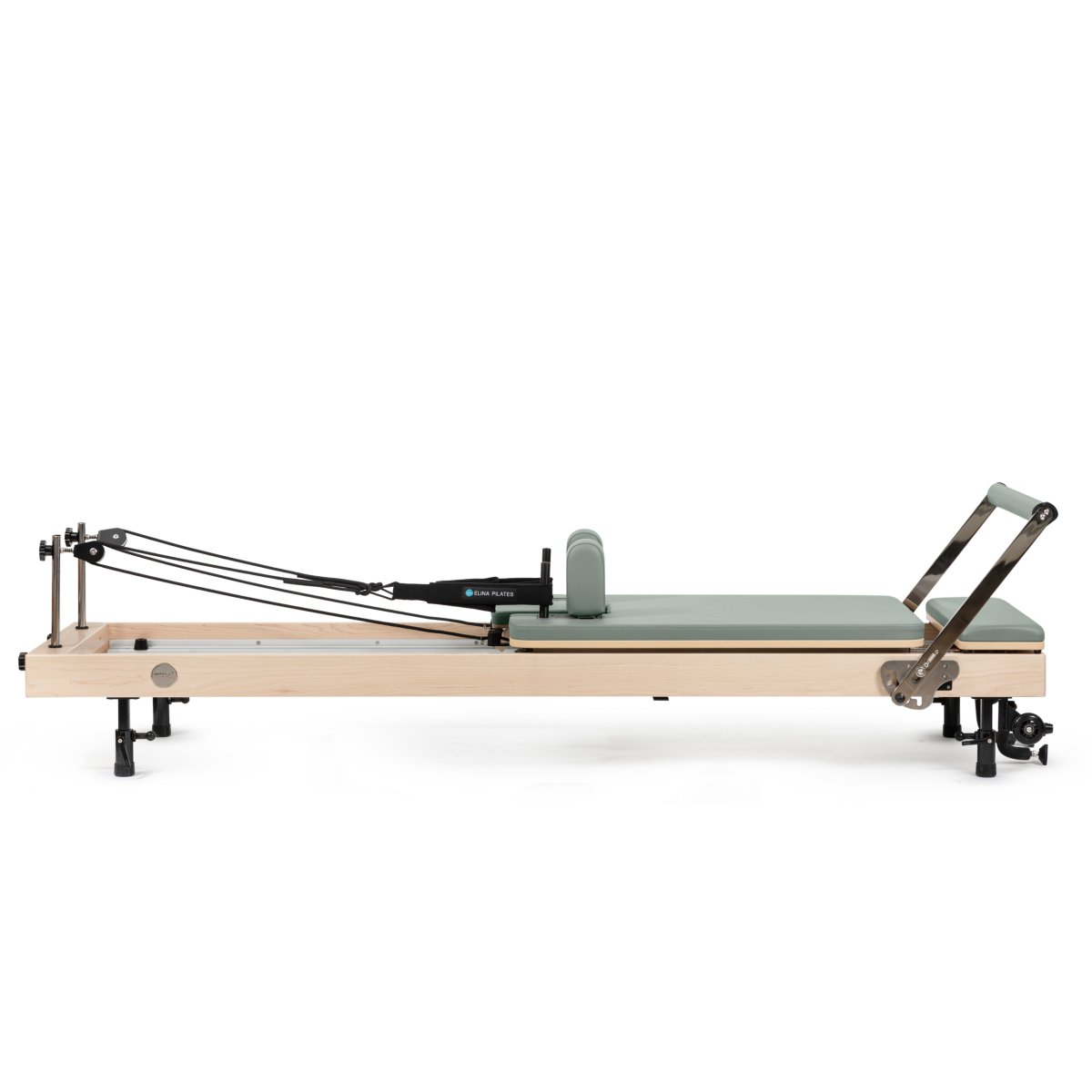

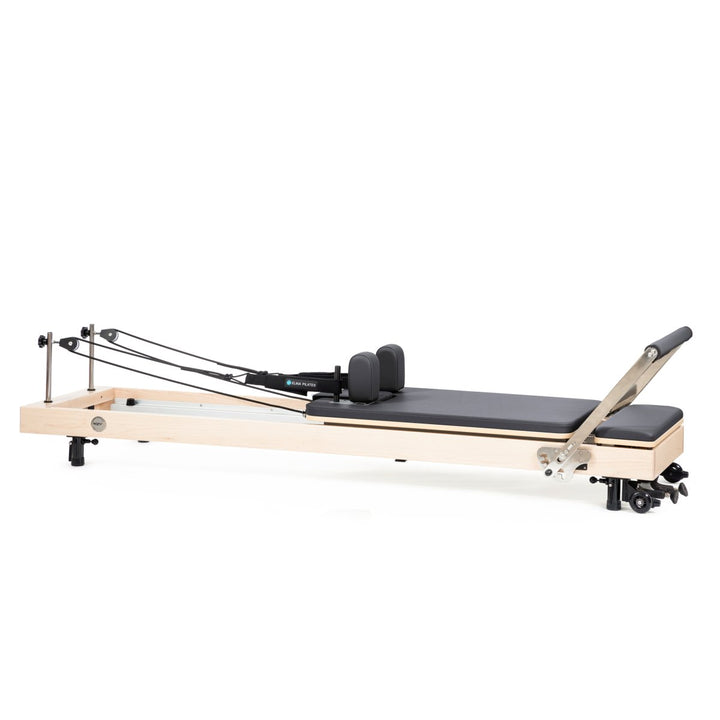

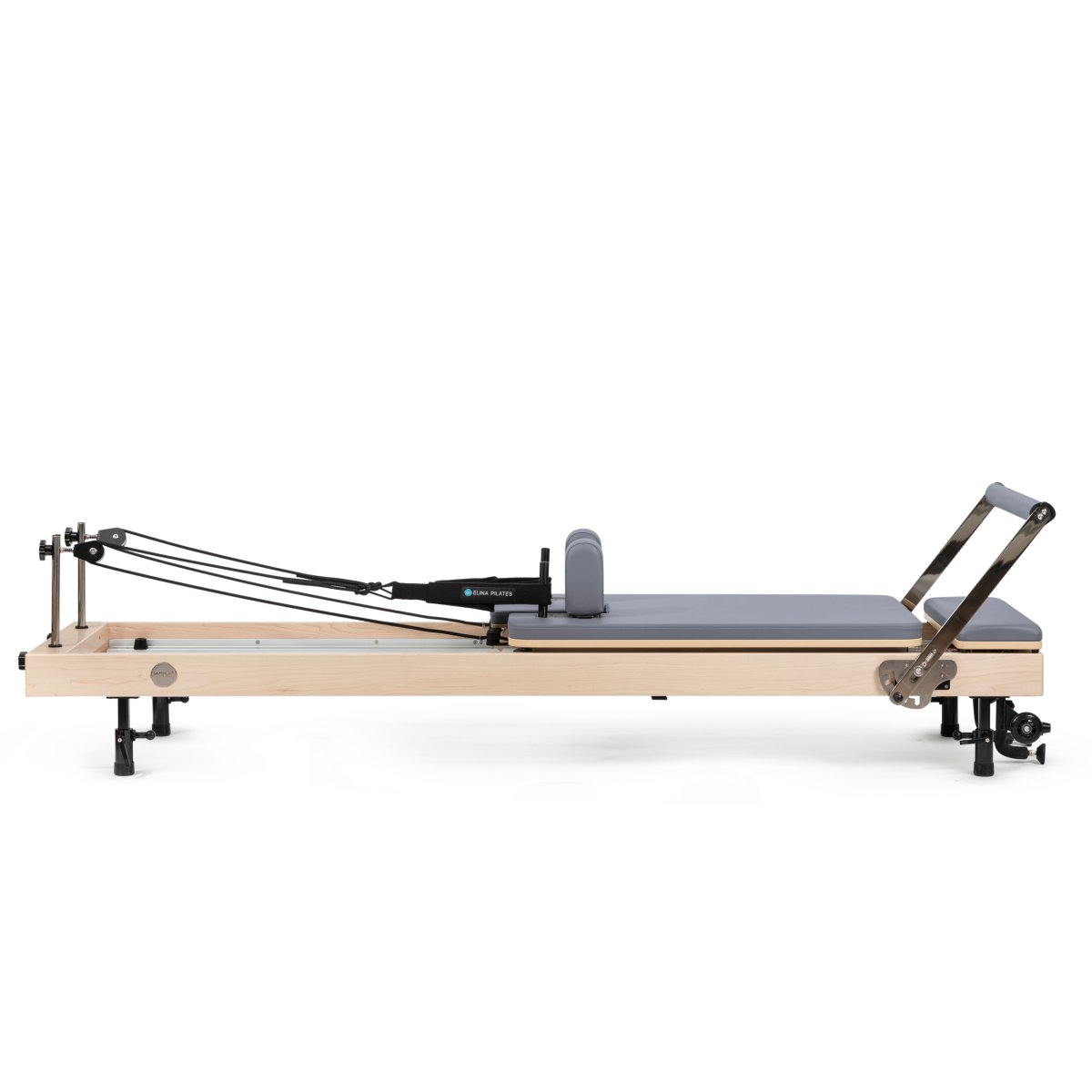

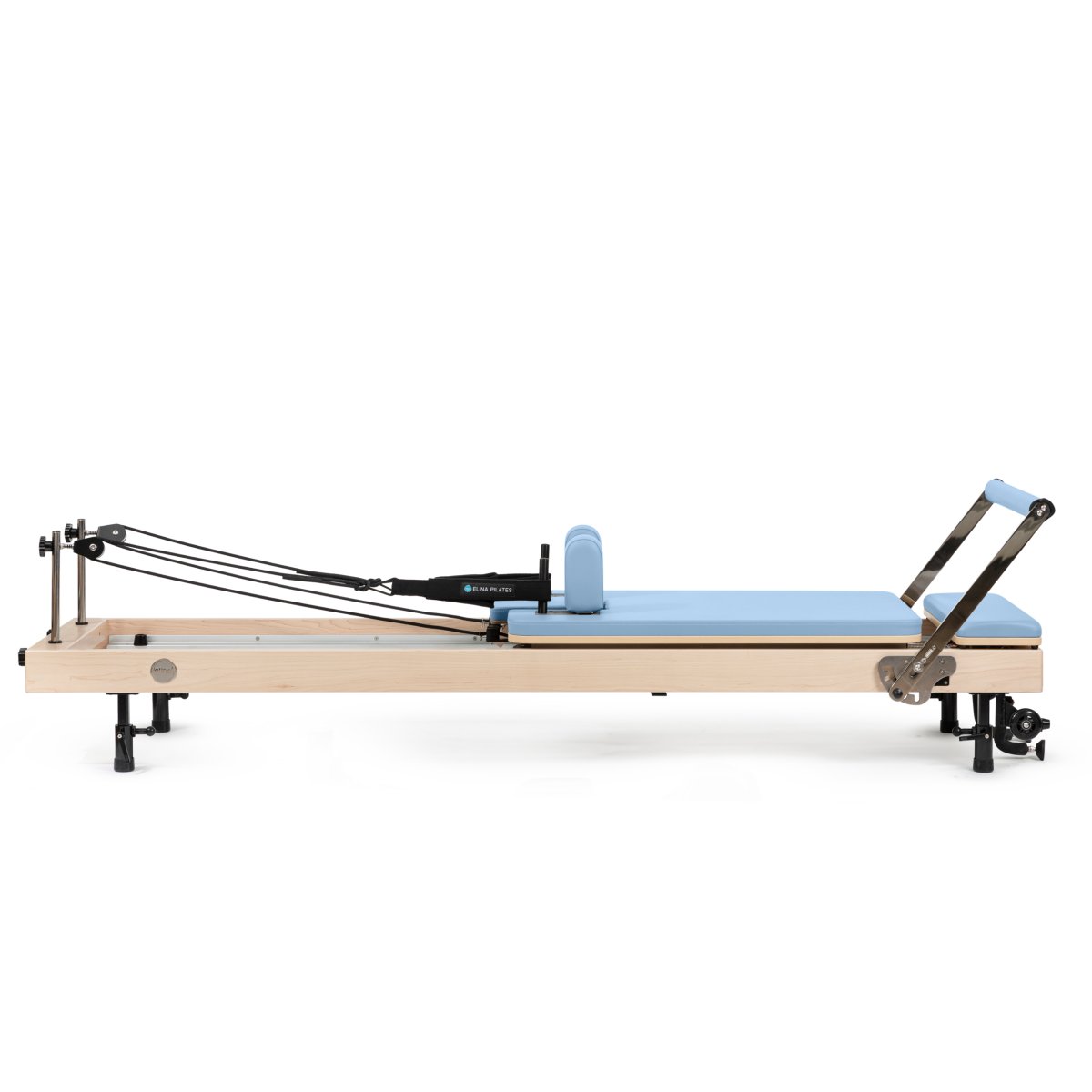

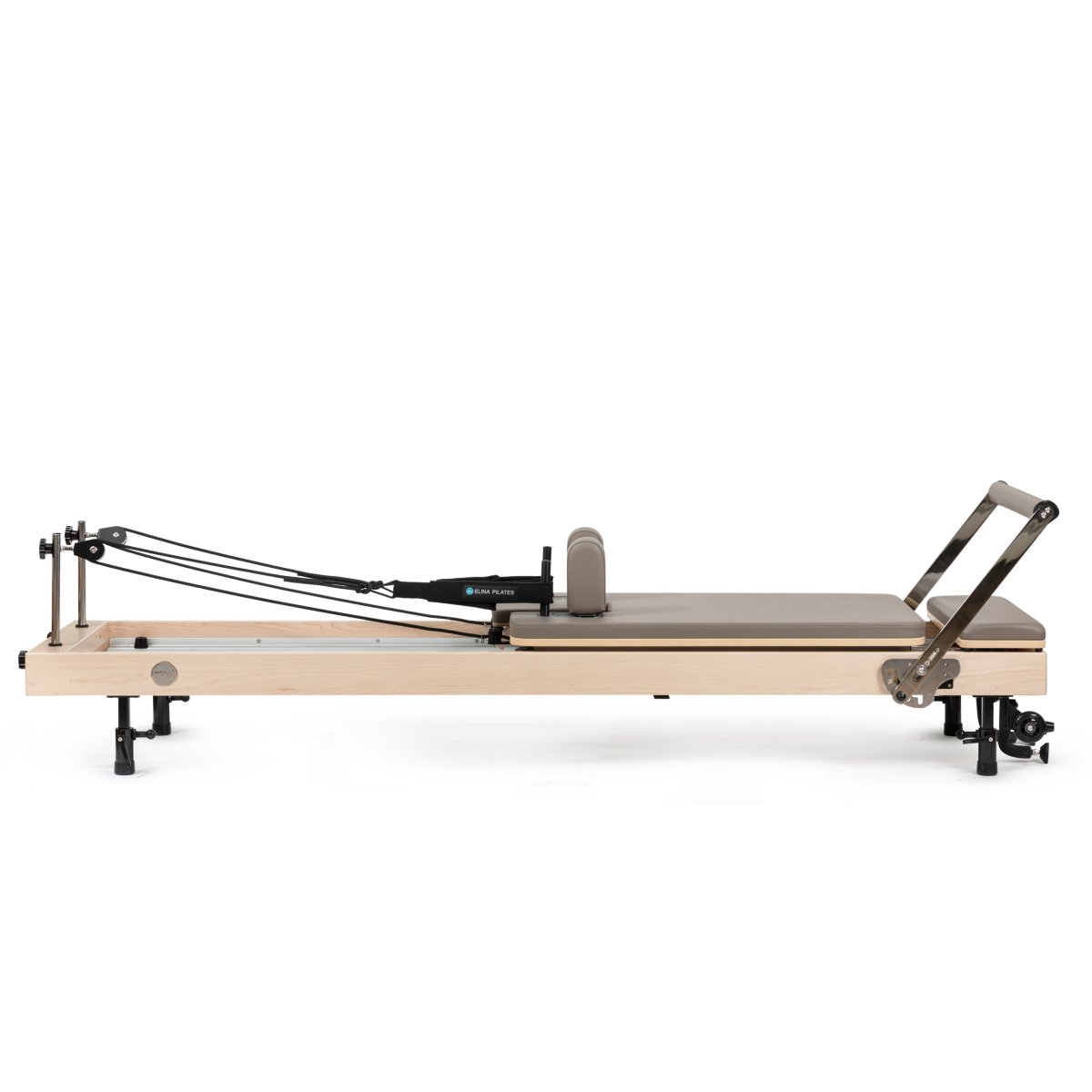

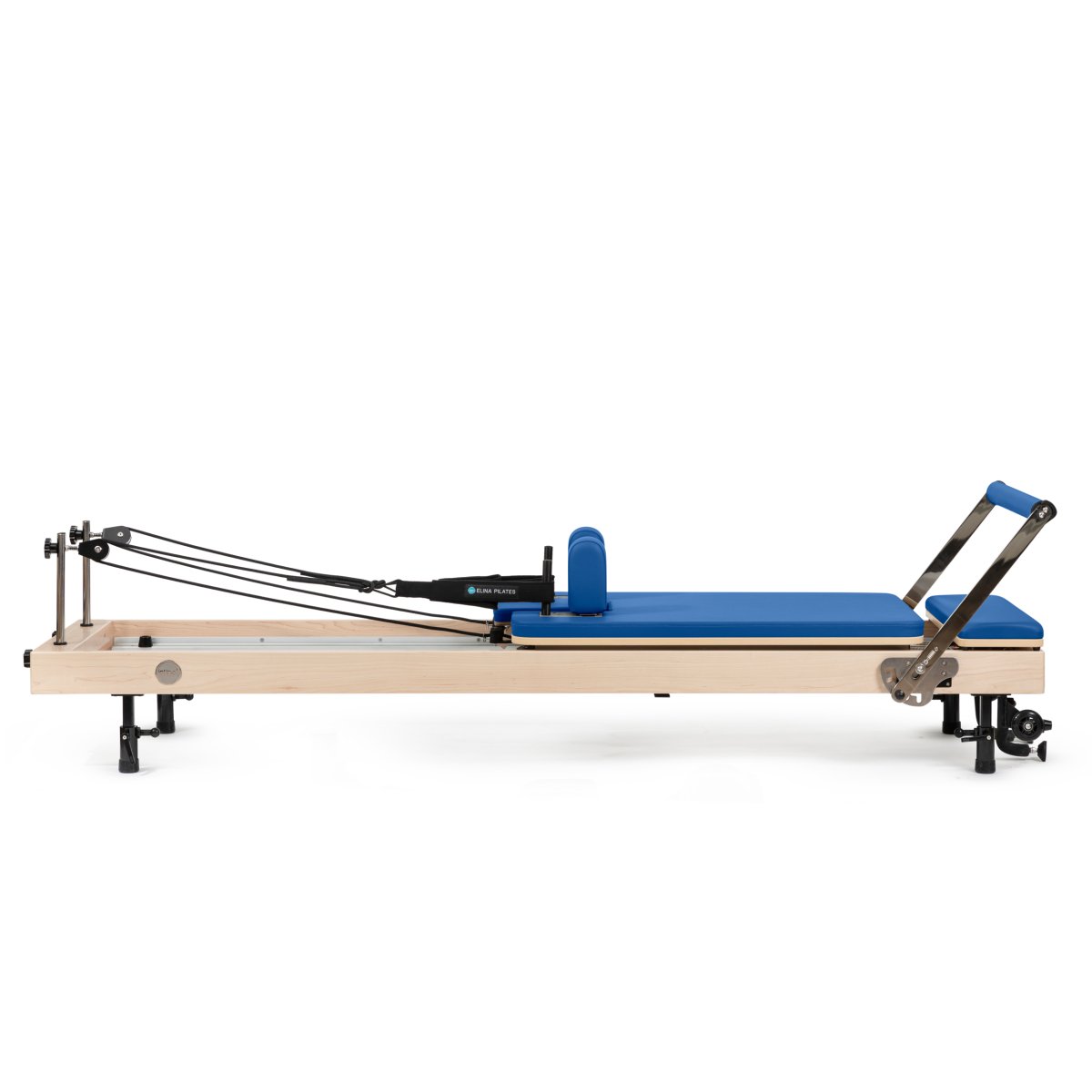

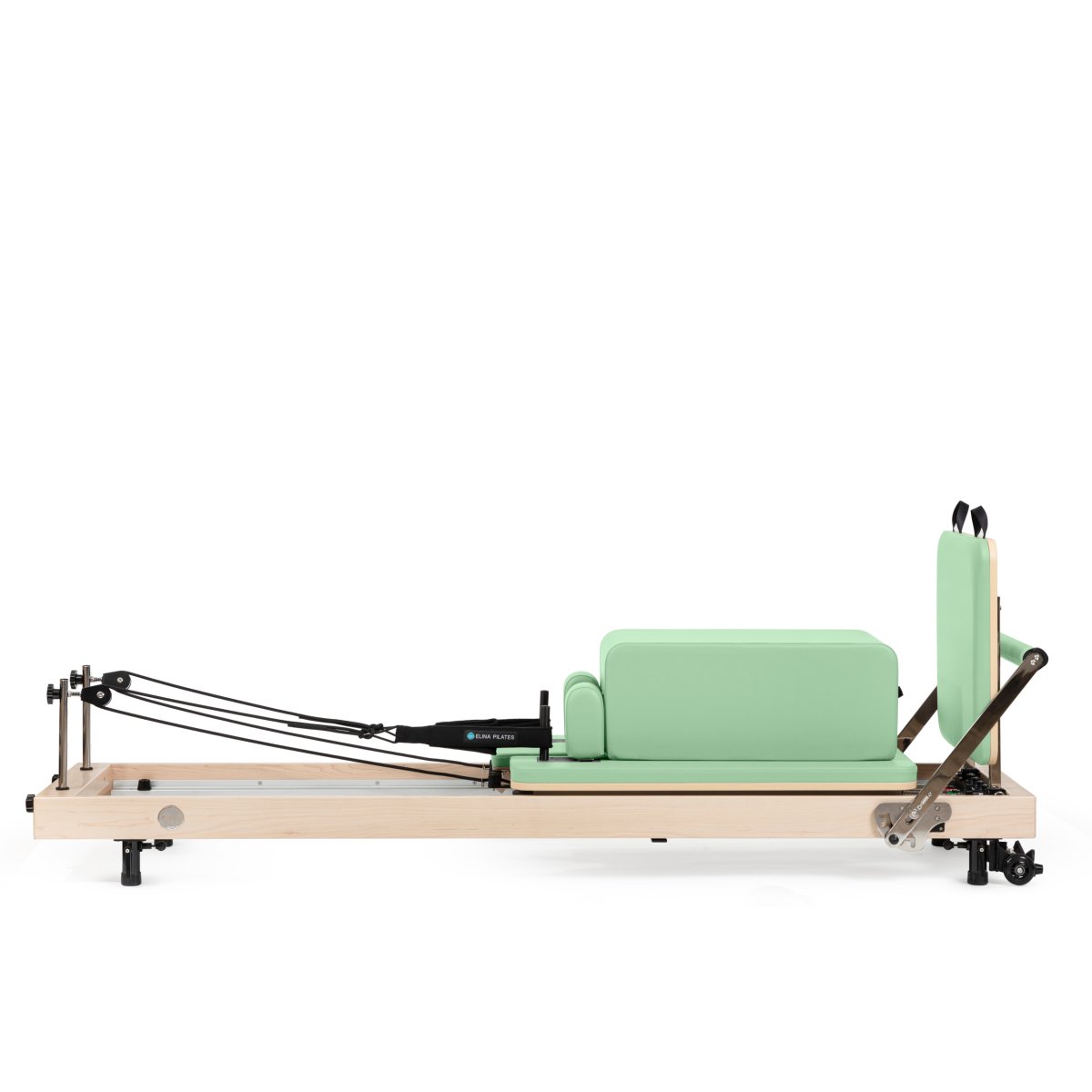

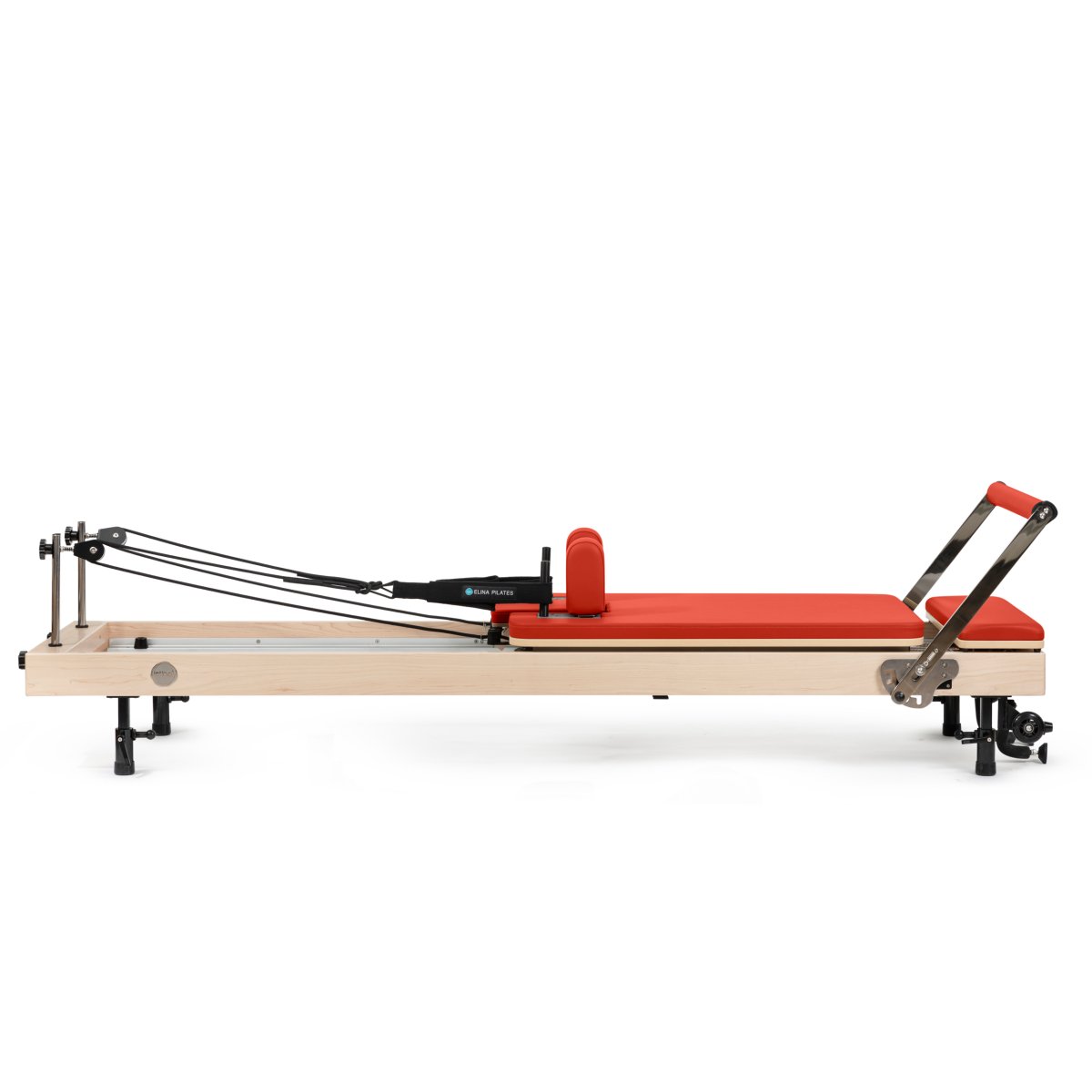

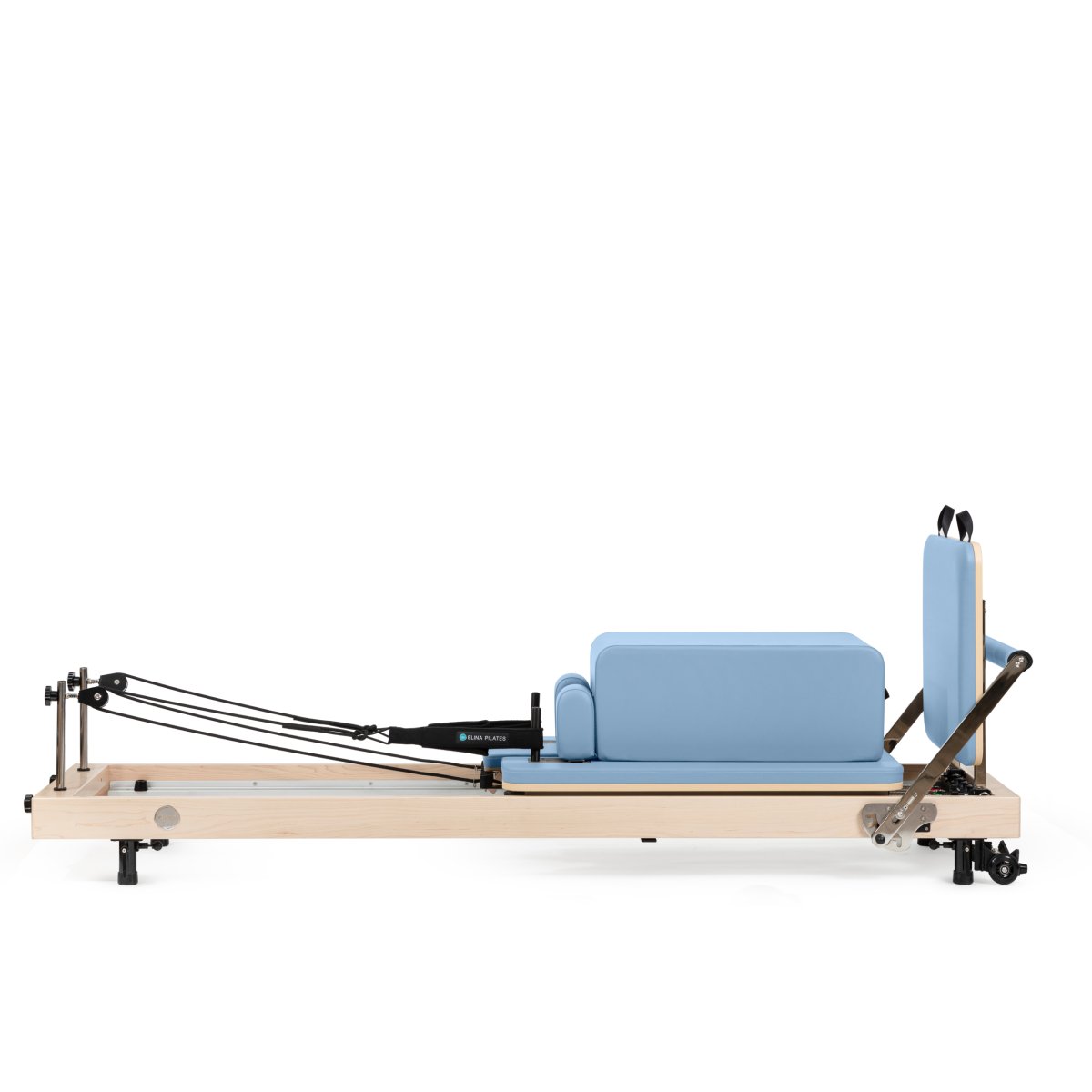

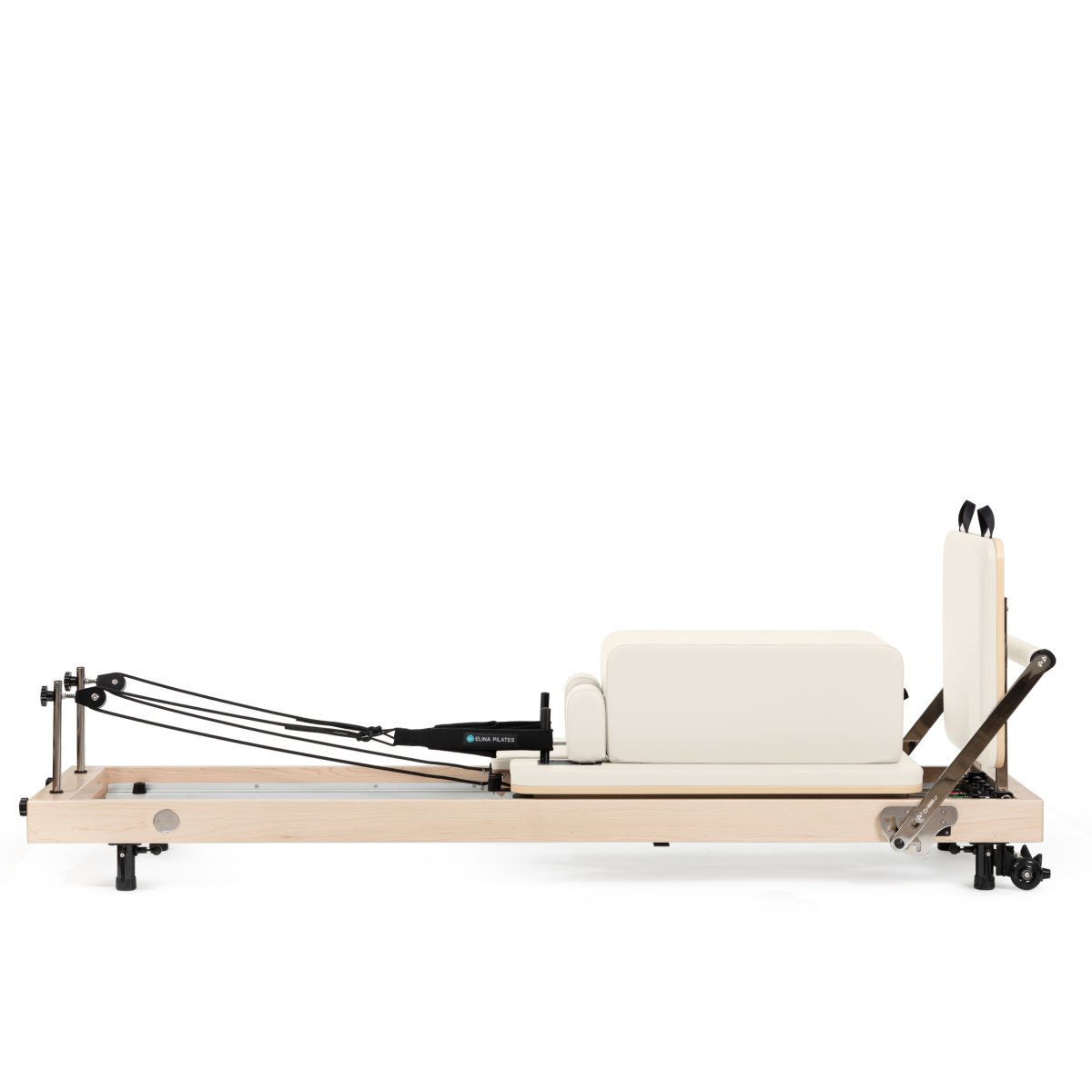

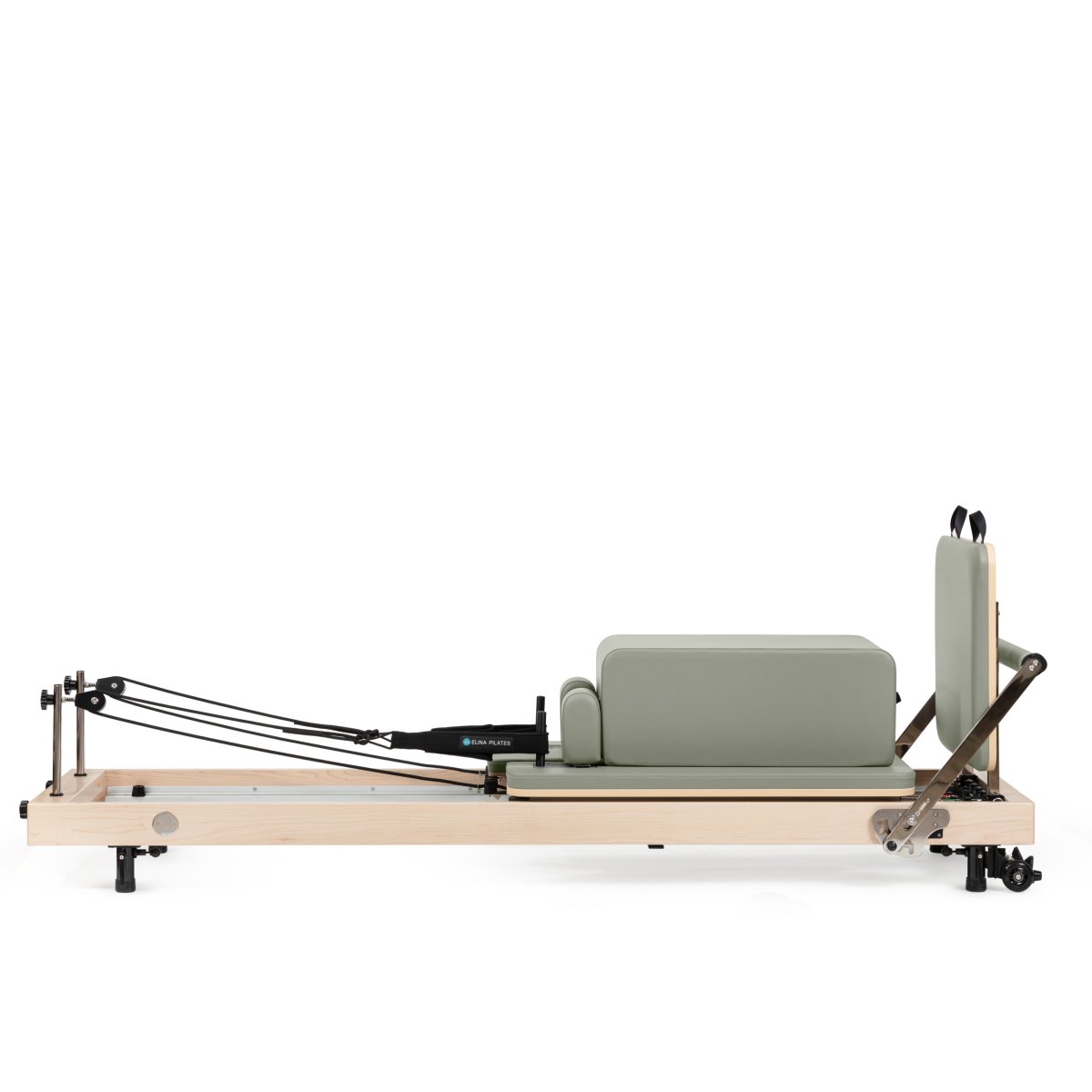

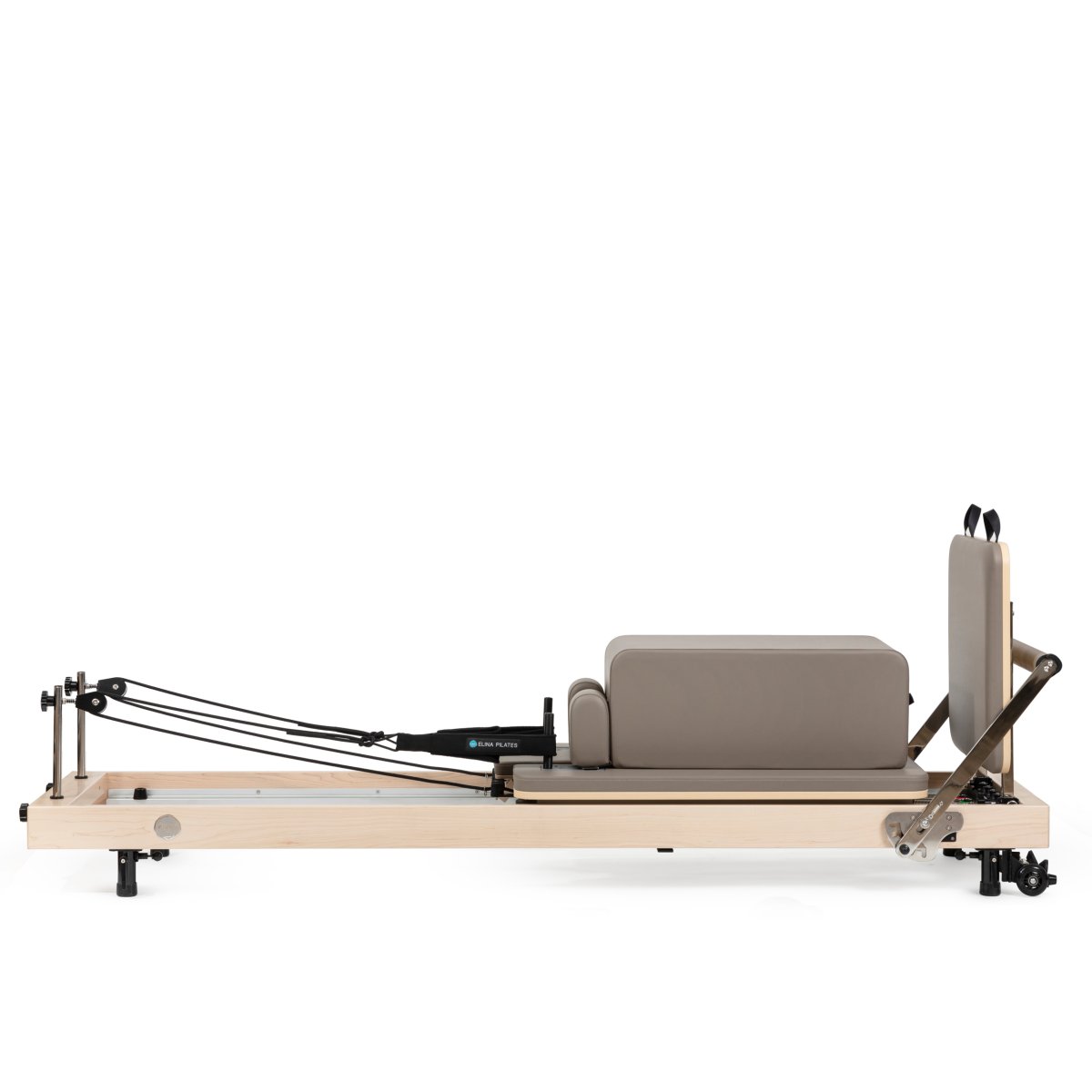

The Vertical Reformer for home use by Elina Pilates is the ideal choice for those seeking a high-quality reformer with a professional design, yet adapted for home use. Its compact and elegant structure, made of American maple wood, ensures stability, firmness, and durability.

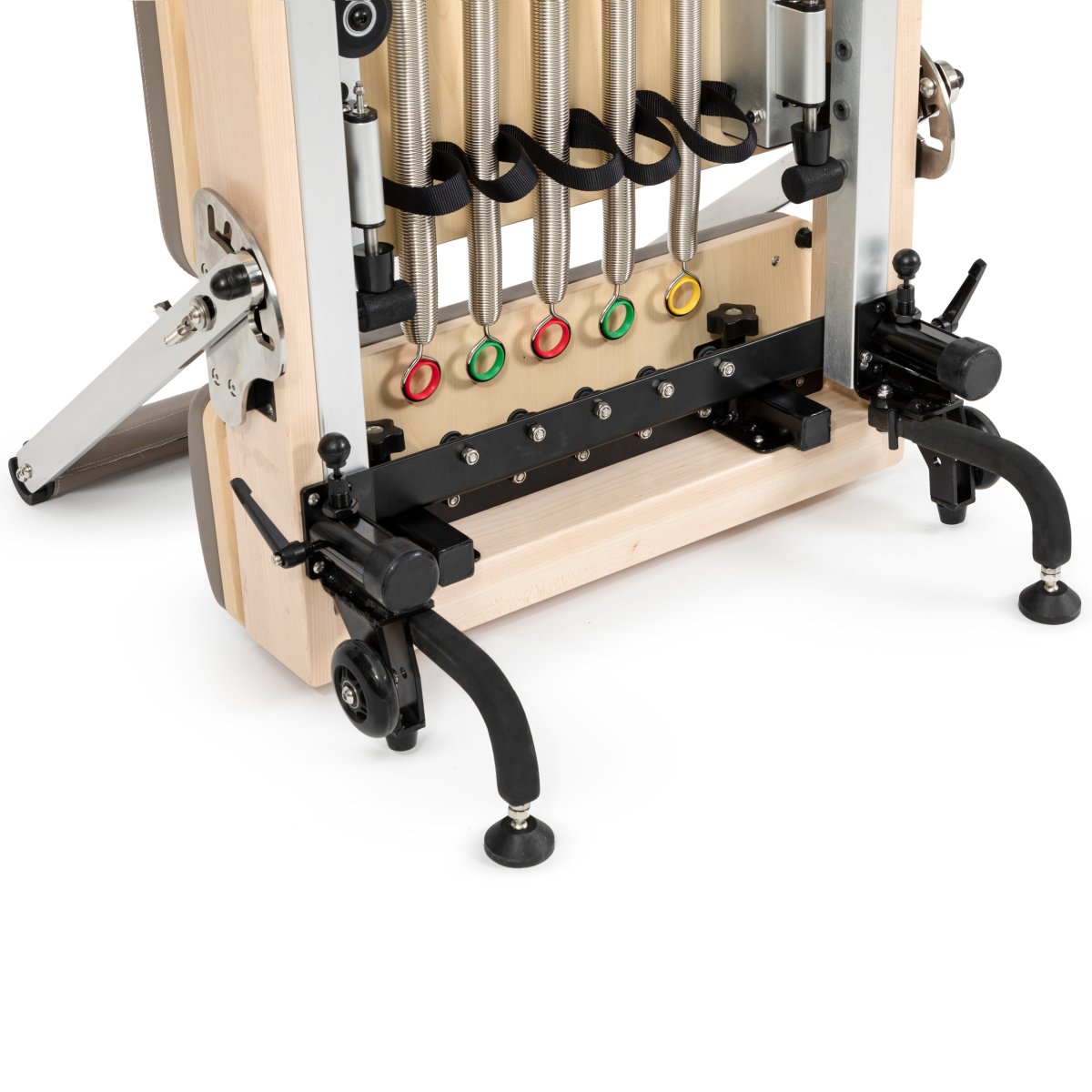

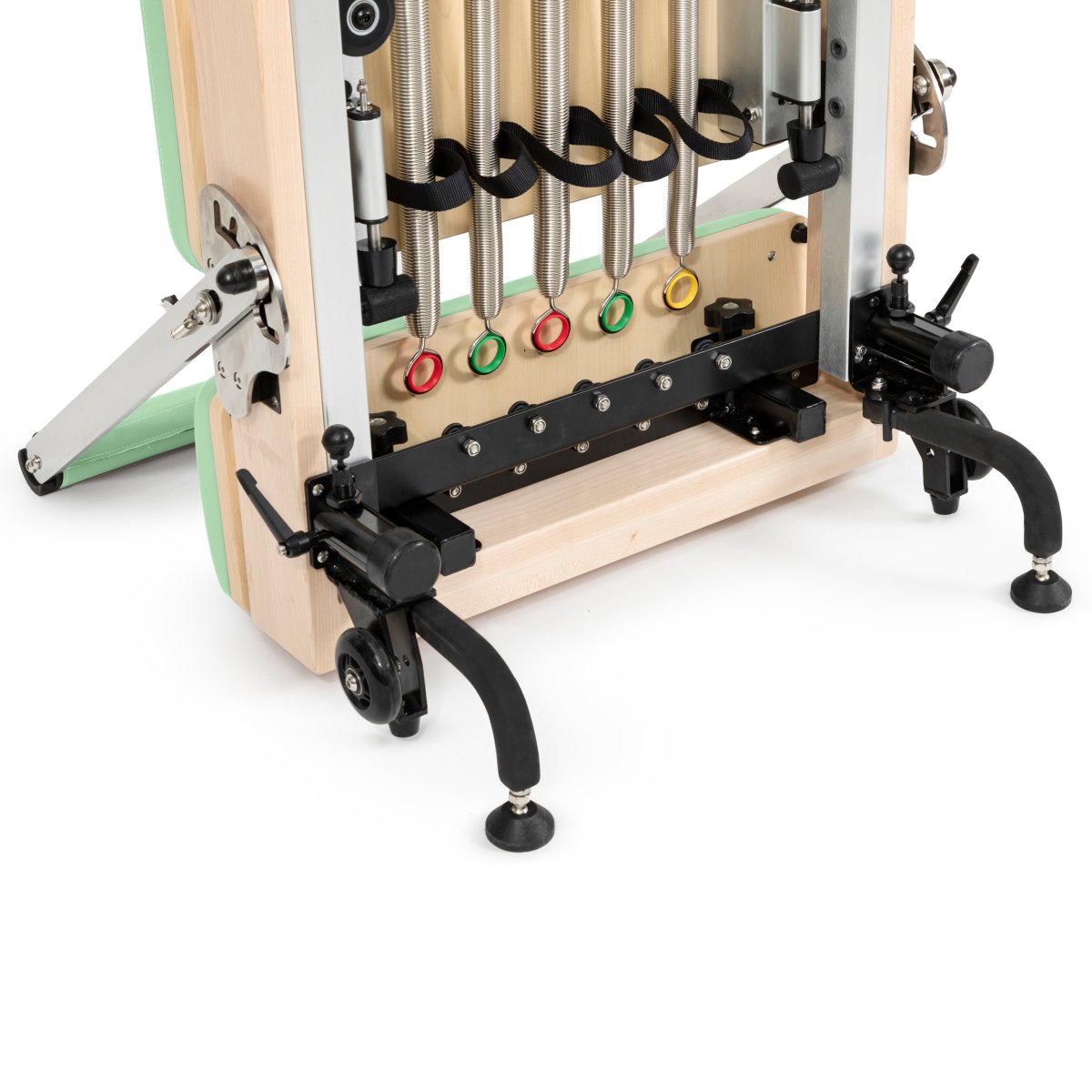

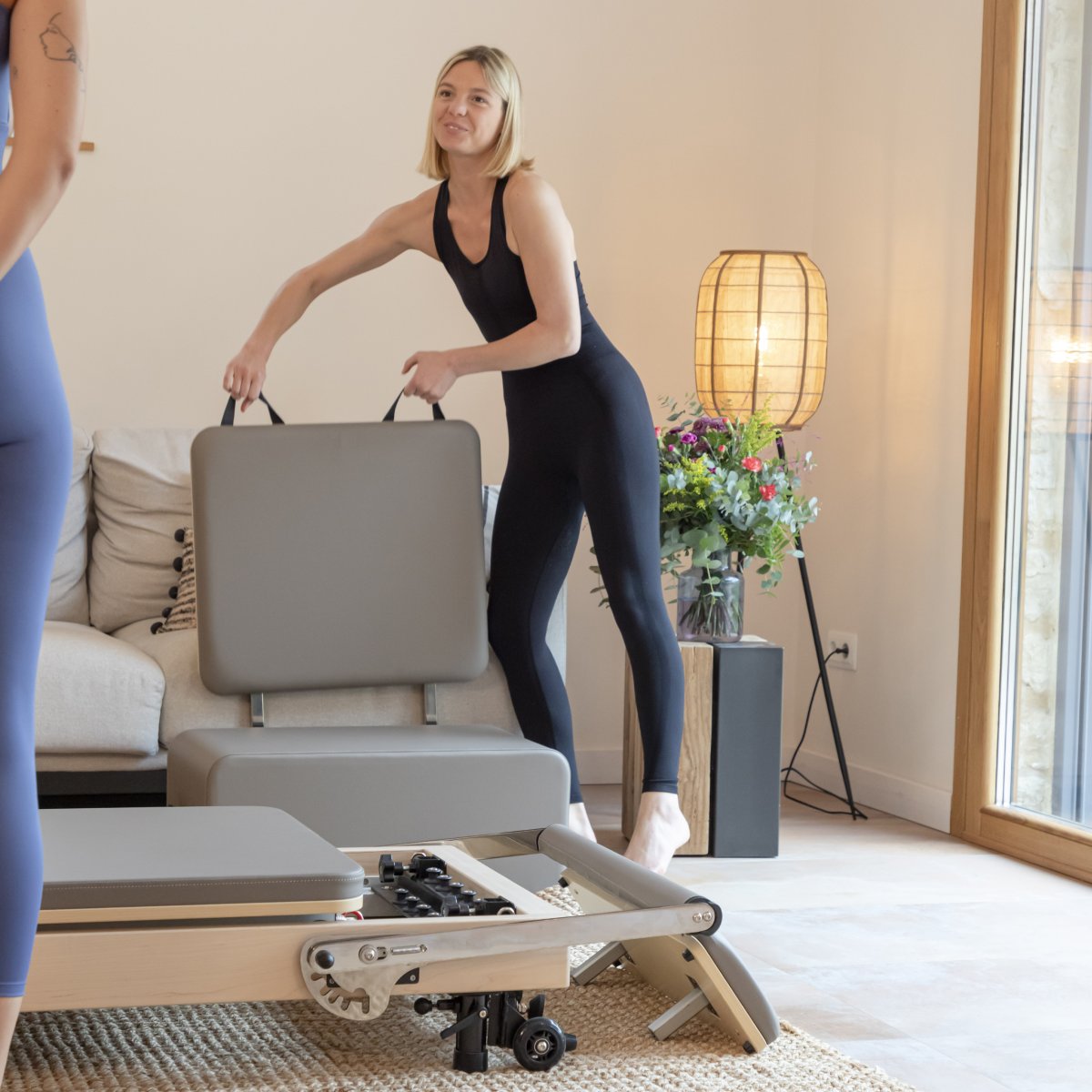

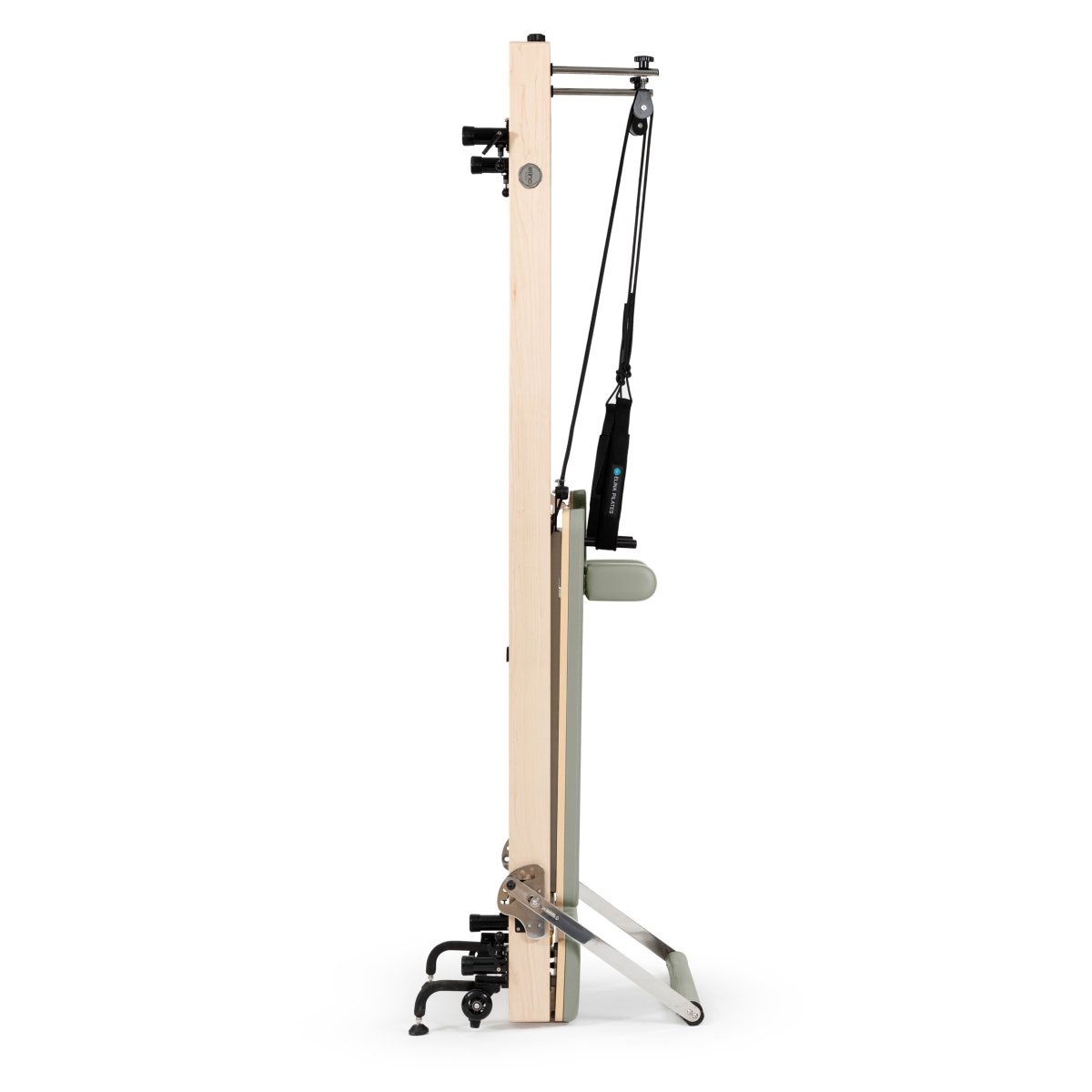

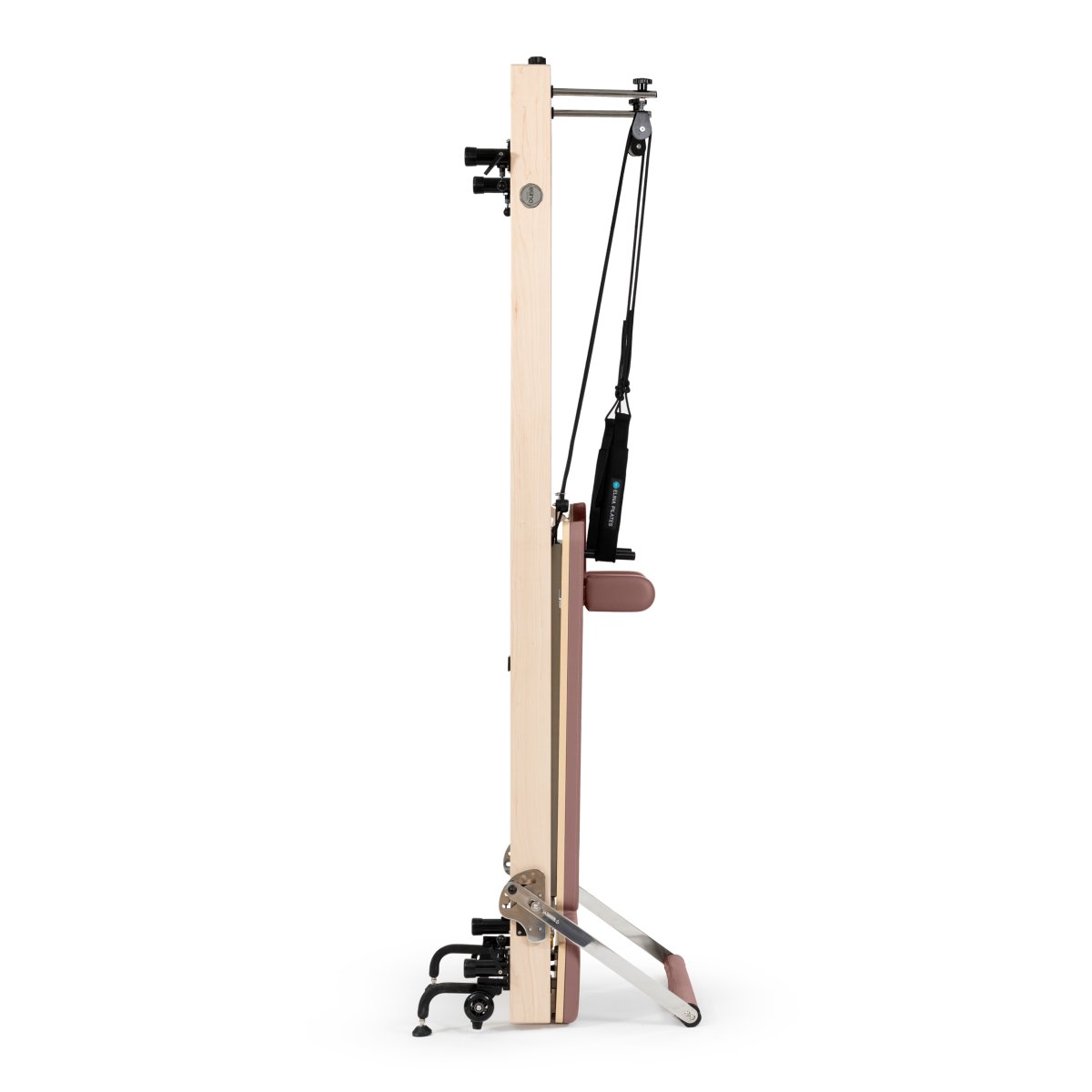

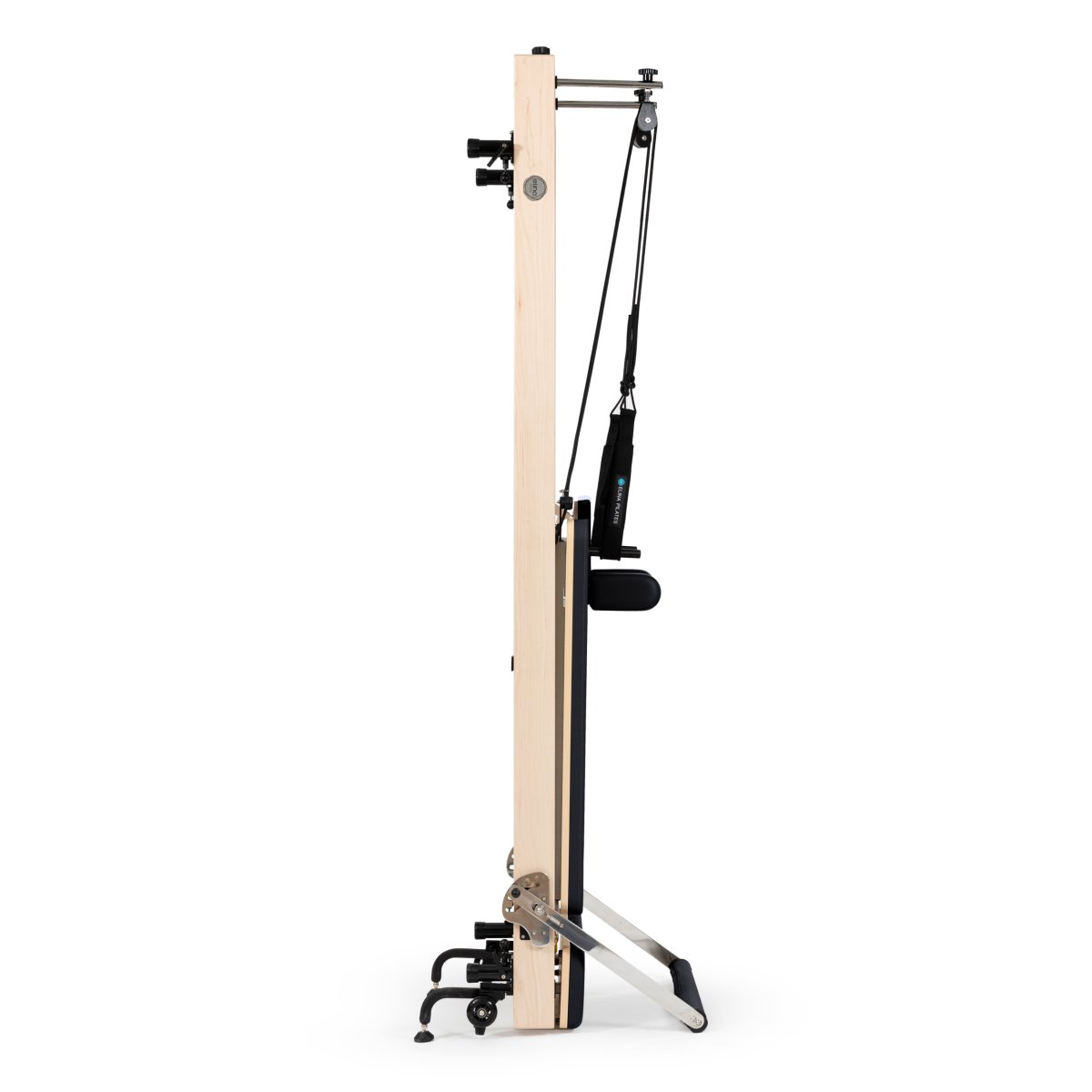

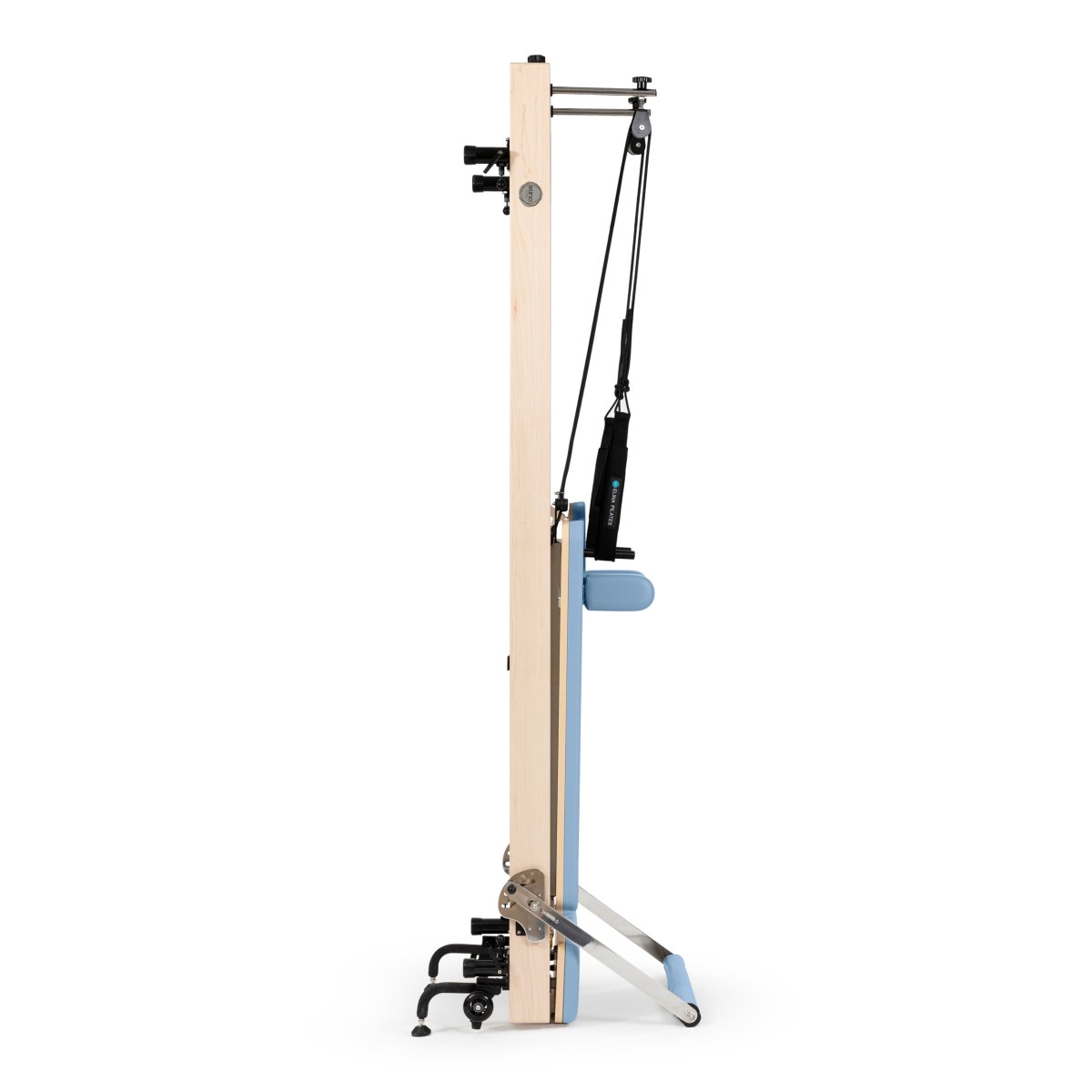

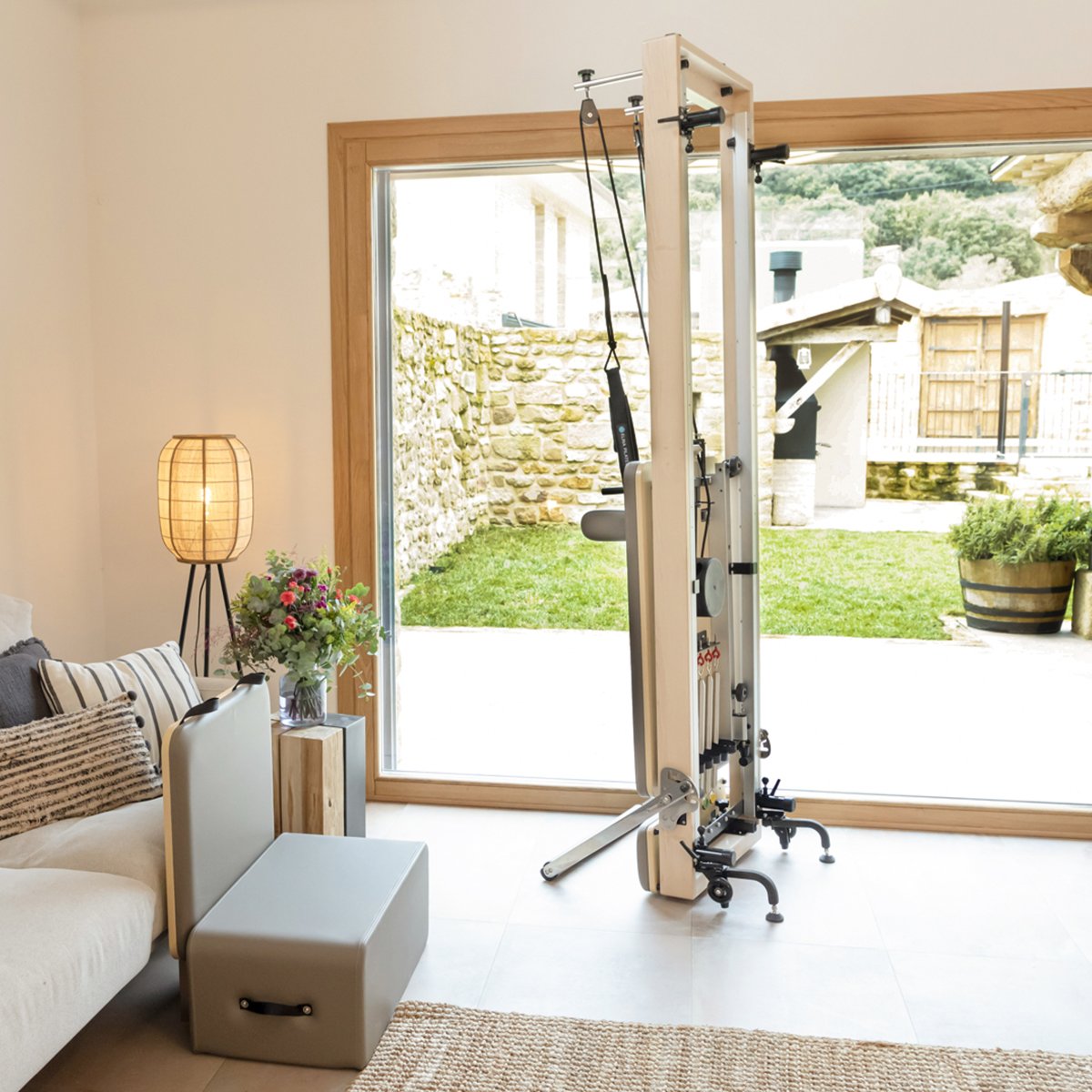

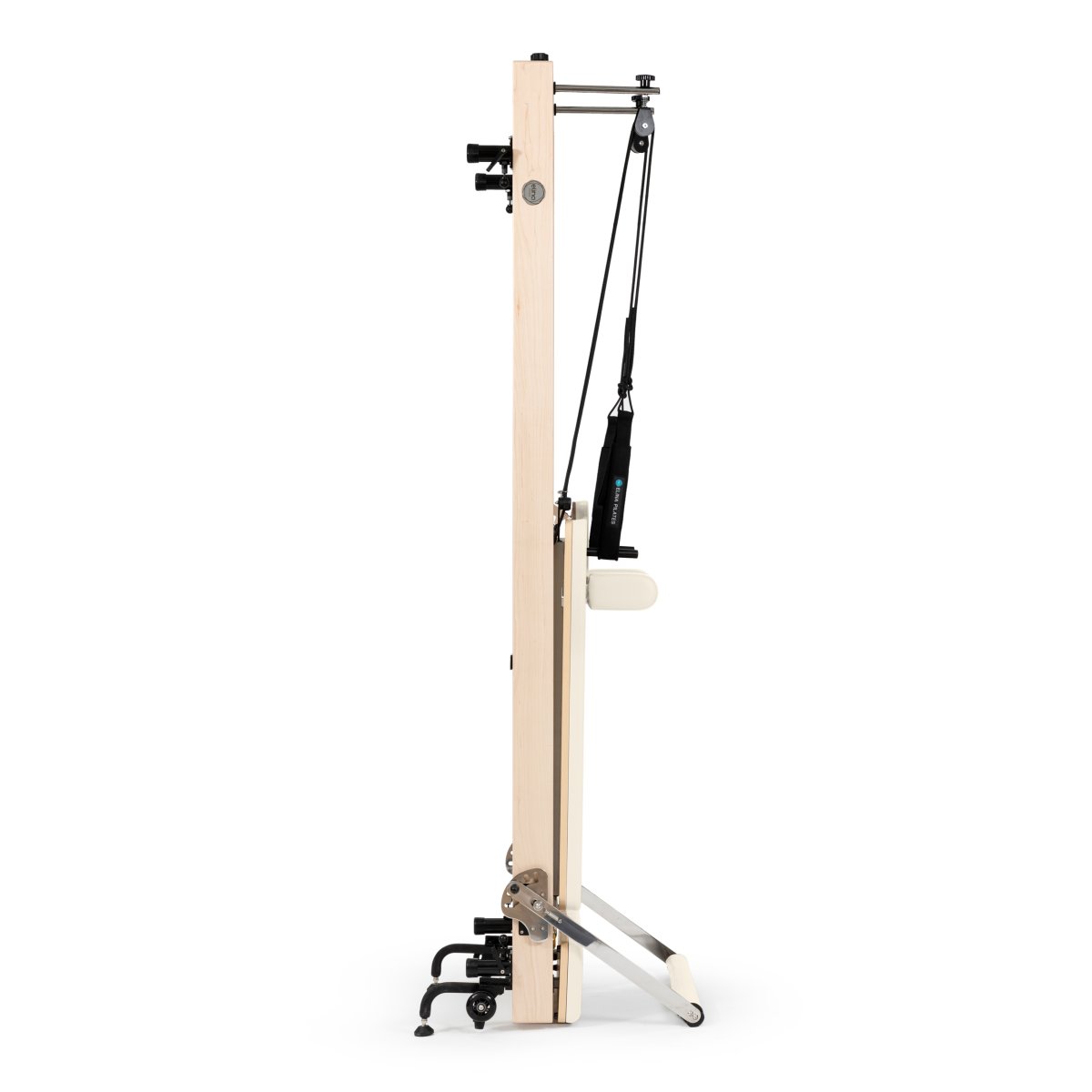

This reformer is not only easy to transport and store in any corner of your home, but it also features a super-secure vertical storage system, thanks to two removable legs that provide a stable and firm base when stored, ensuring great safety when not in use.
At Elina Pilates, we always prioritize quality, which is why this reformer is made of American maple wood, ideal for giving the machine the necessary firmness, stability, and durability.
To better meet the needs of each user, the Vertical Reformer has two bed height options, thanks to its adjustable legs (28 cm and 35.5 cm from the floor).
Features
Structure
- Made with light-toned American maple wood.
- Waterproof varnish that protects the wood from wear and tear.
Foot Bar
- Quick release system with six adjustable positions.
- Padded bar to prevent slipping of feet and hands.
Carriage

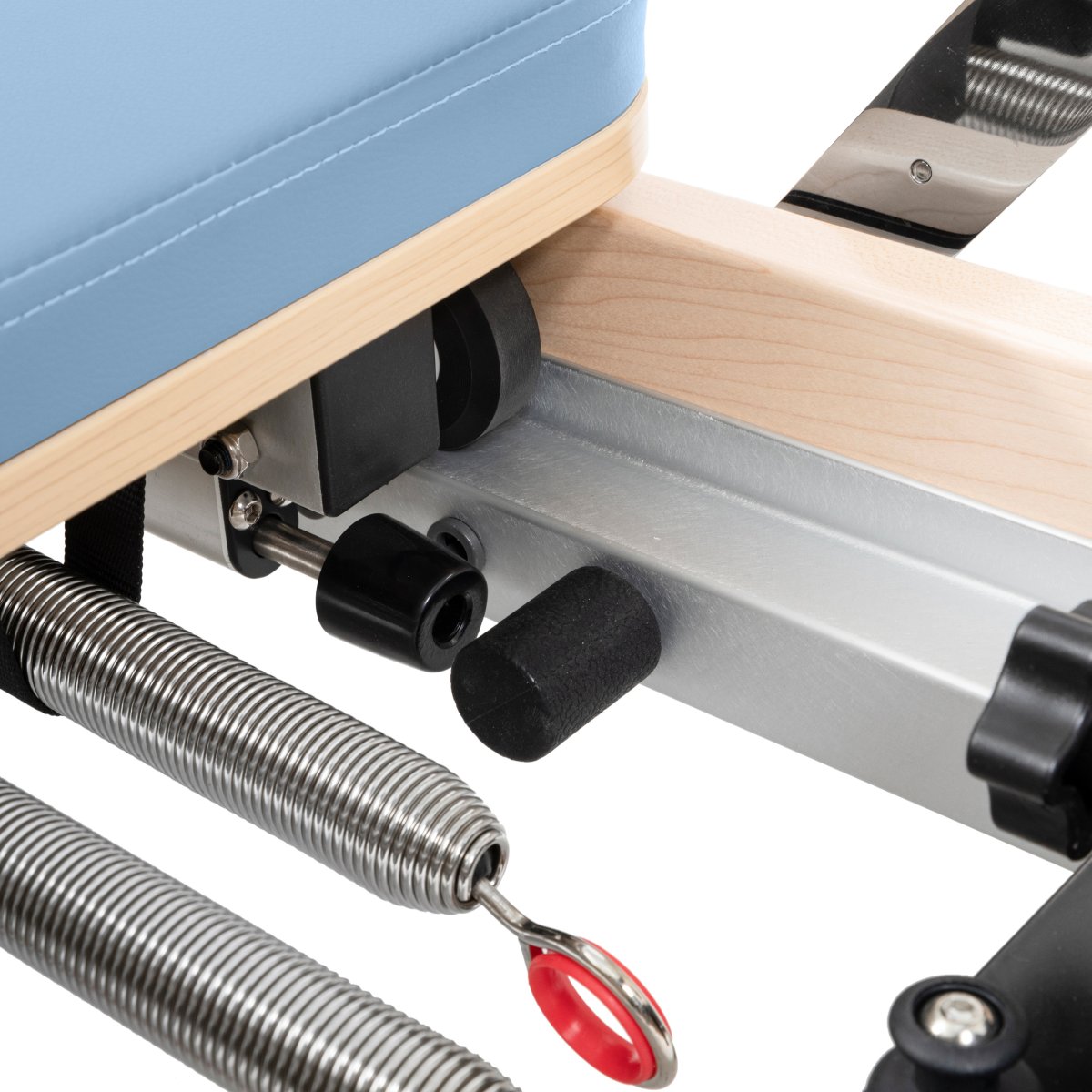

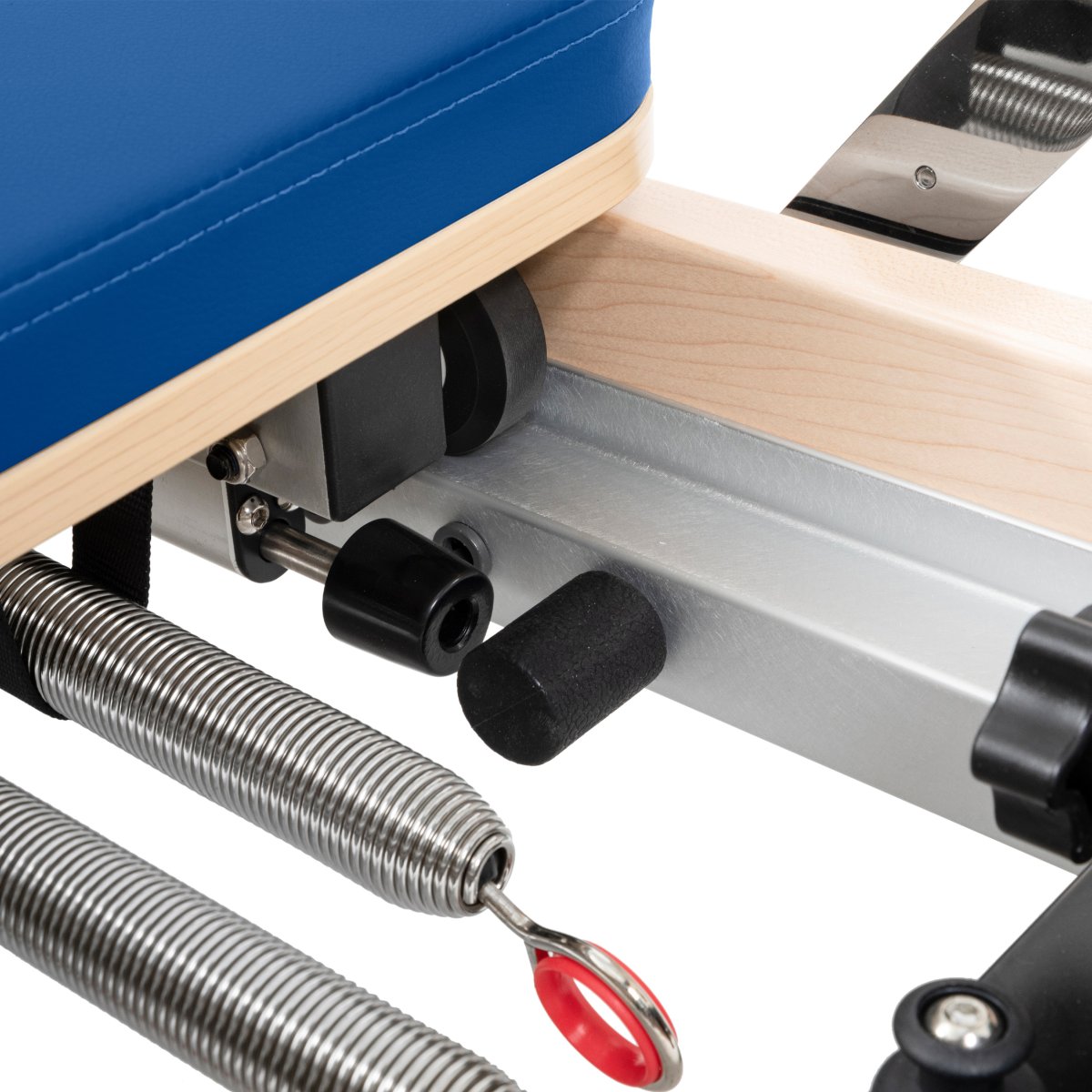

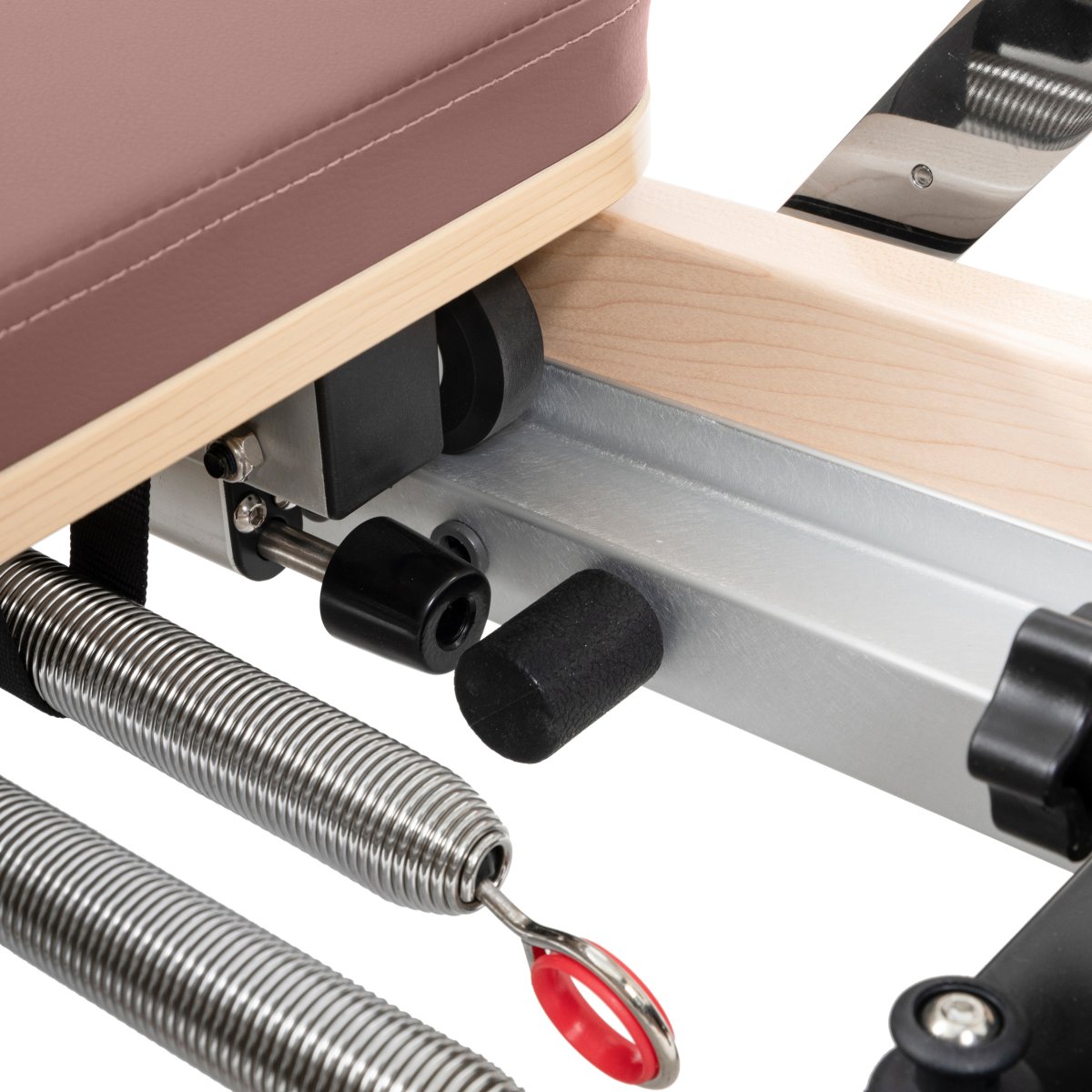

- Ultra-quiet carriage thanks to its eight special polyurethane wheels and high-precision bearings.
- Retractable automatic cord storage system that allows the cords to be stored at the bottom of the carriage.

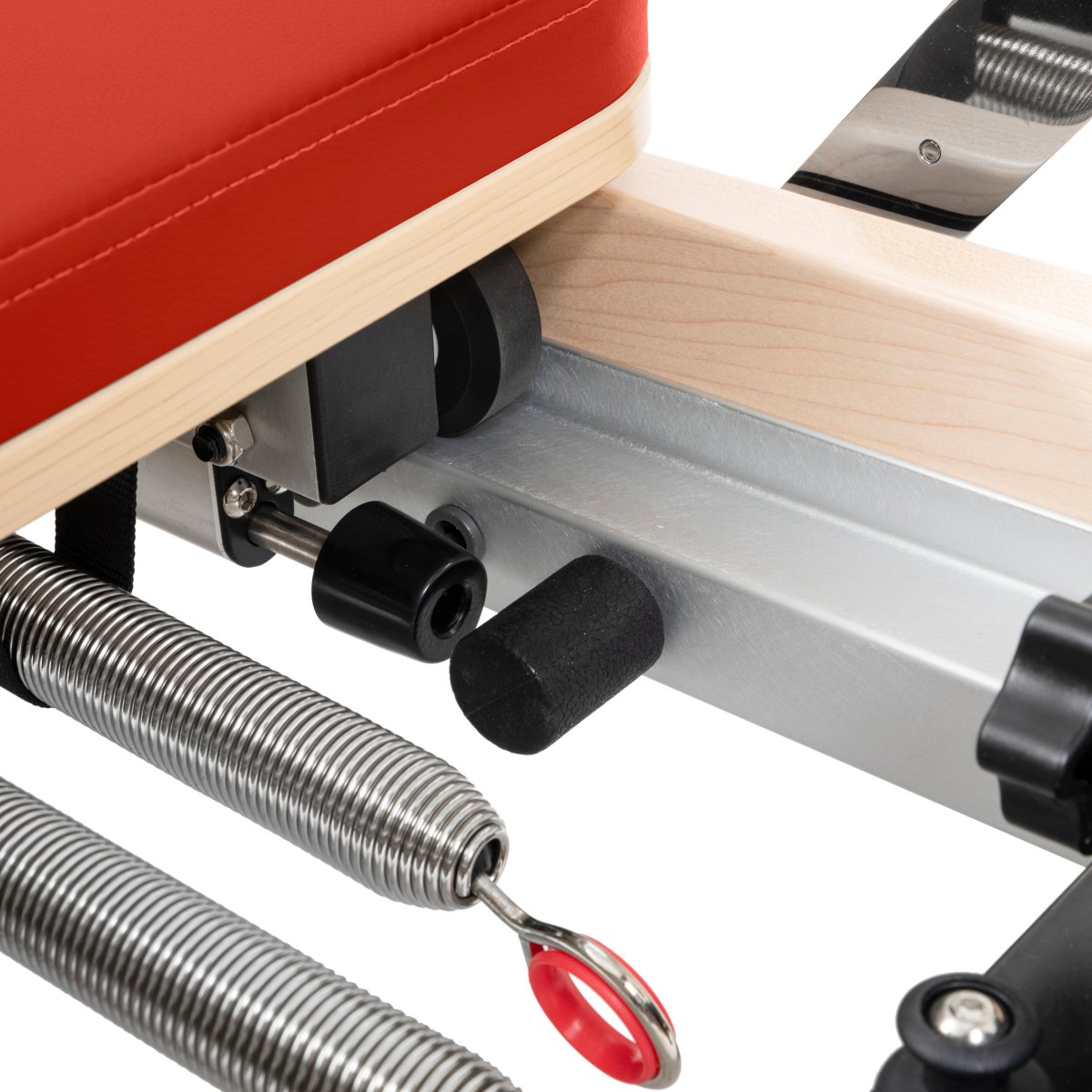

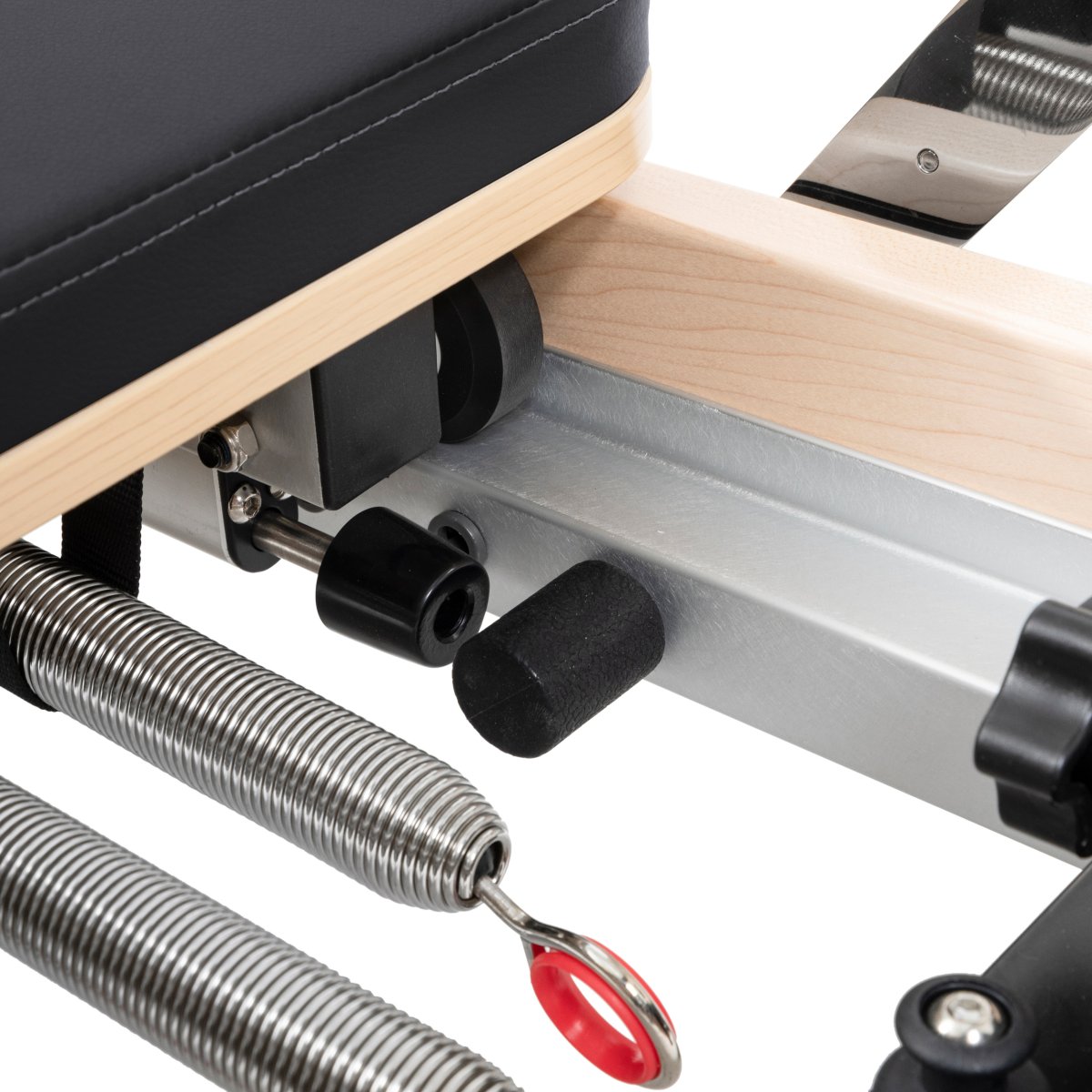

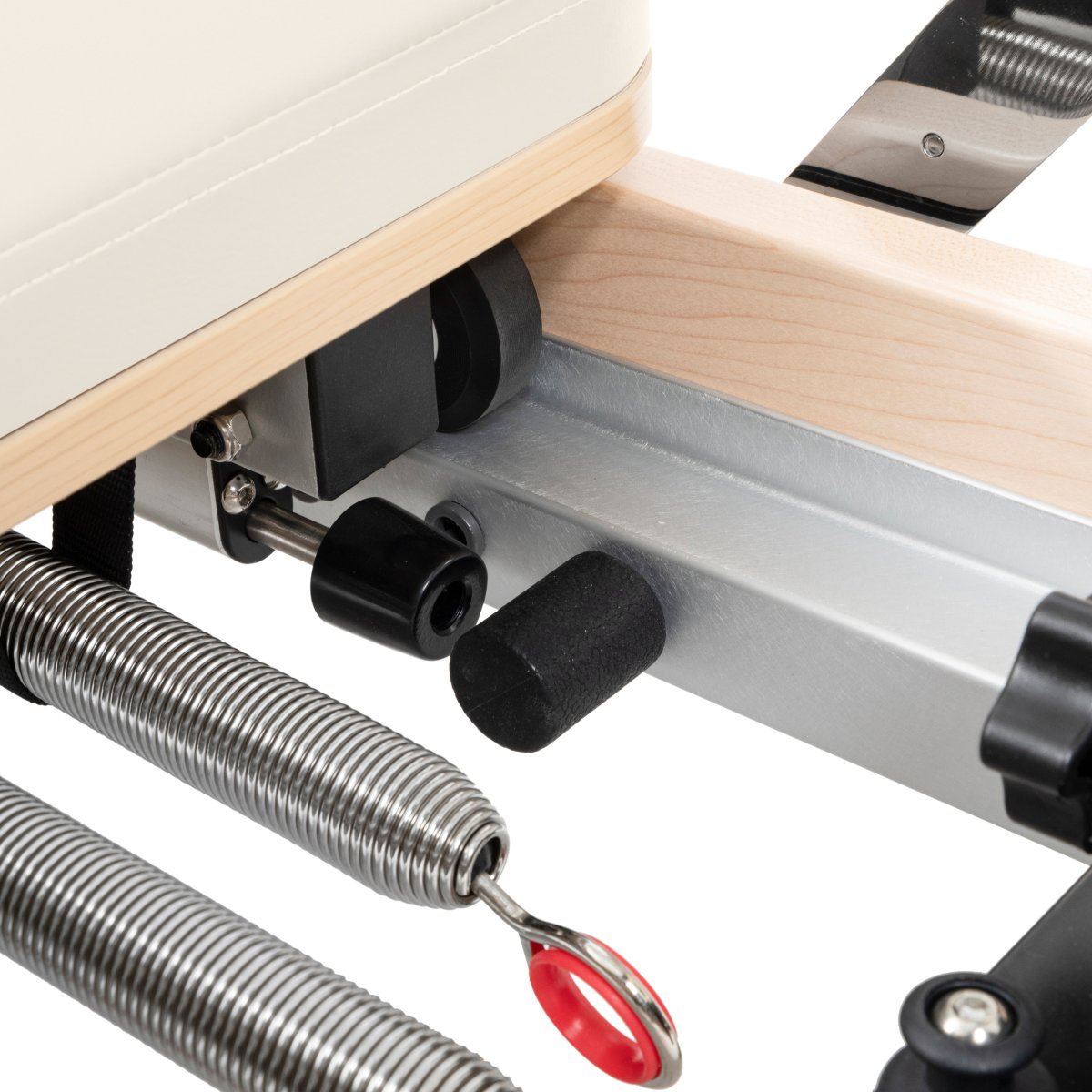

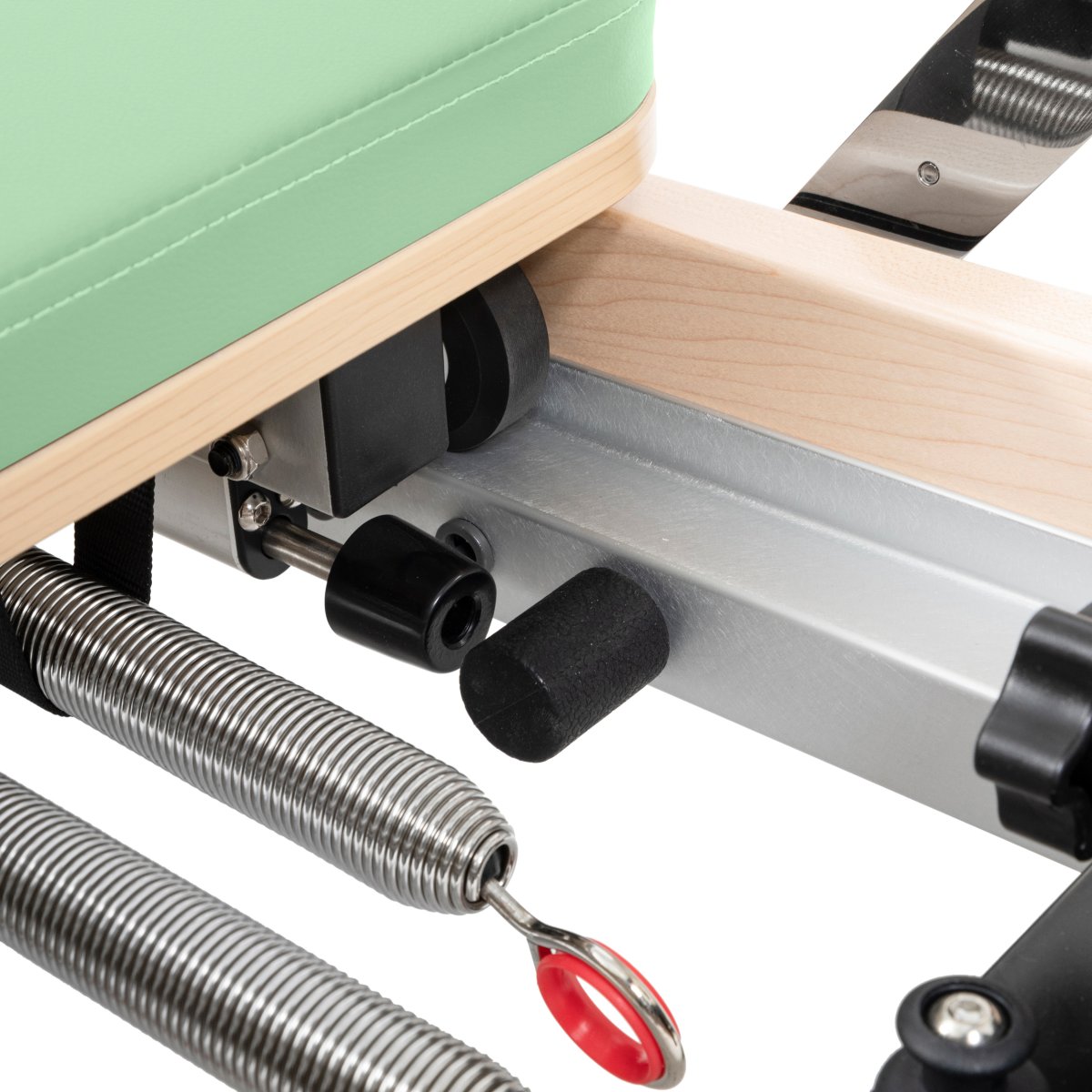

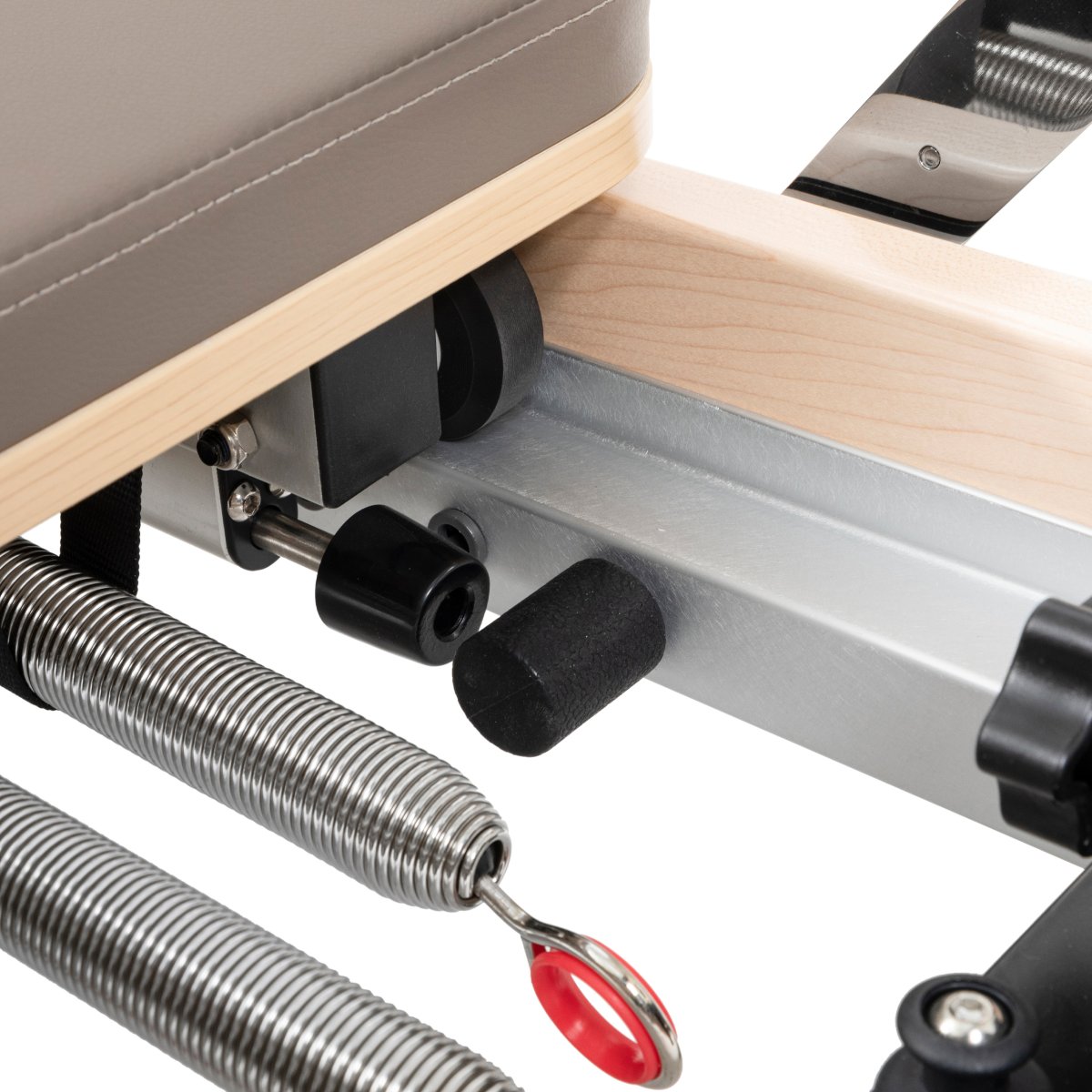

- Sophisticated bed cushioning mechanism that allows exercises to be performed smoothly, avoiding noise and sudden impacts.

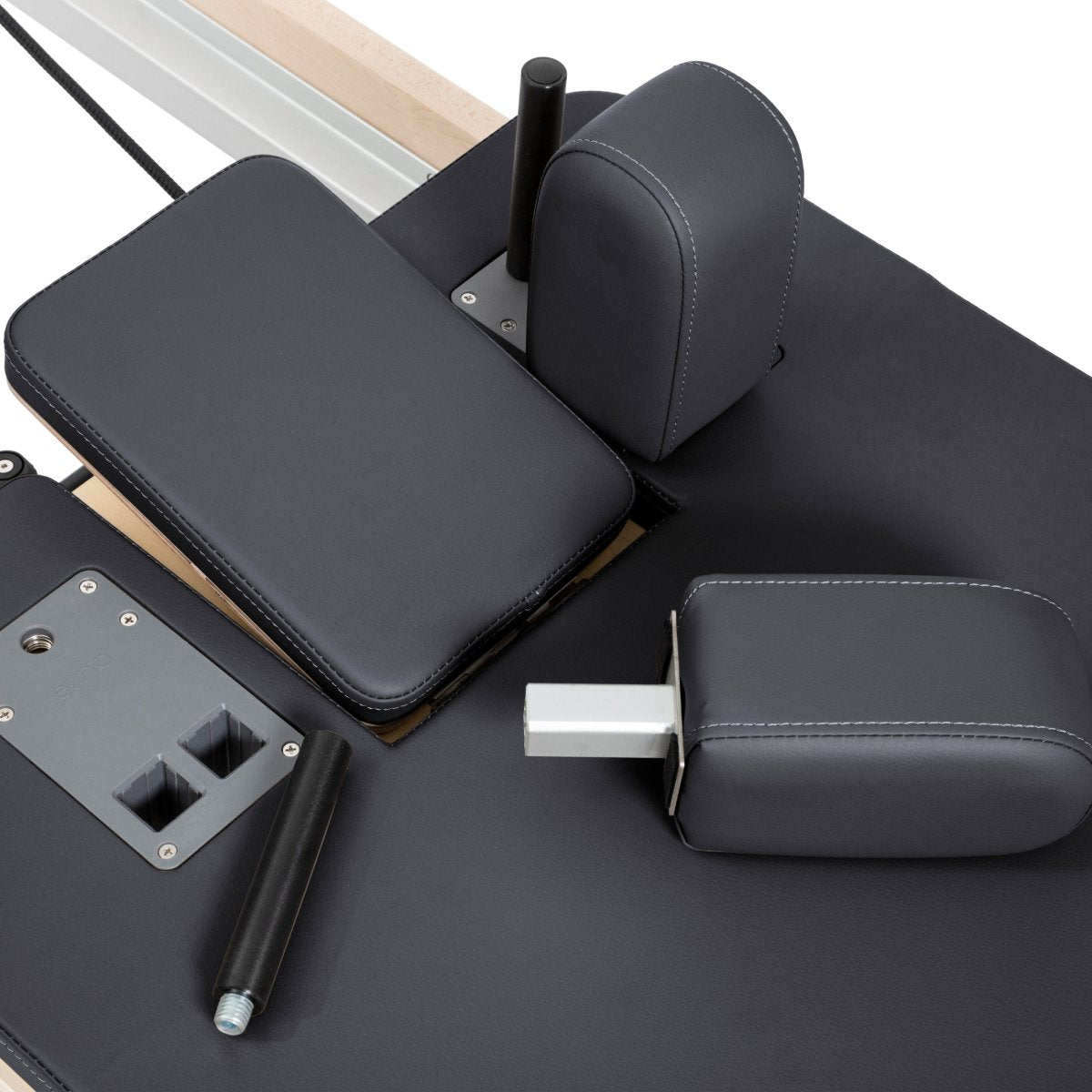

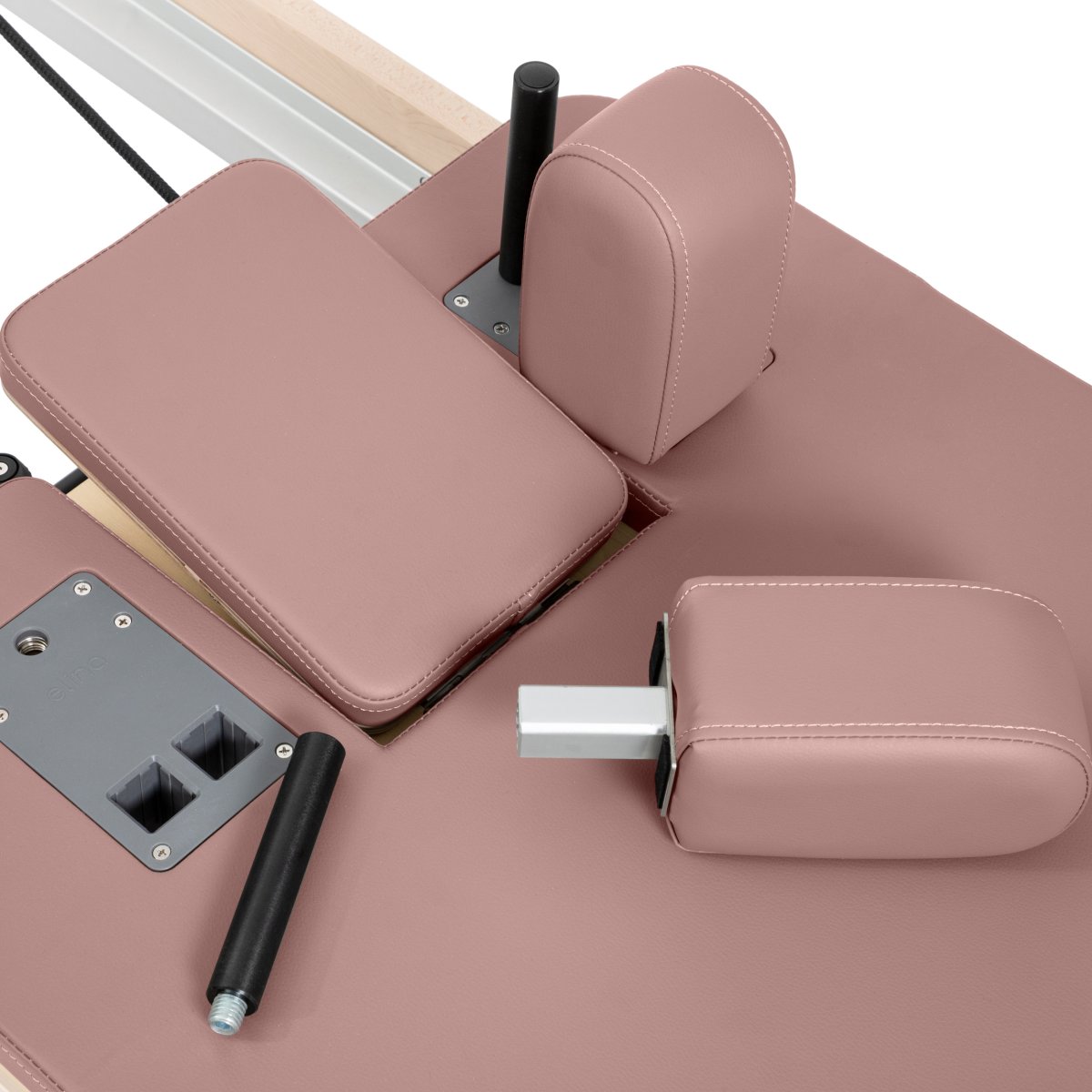

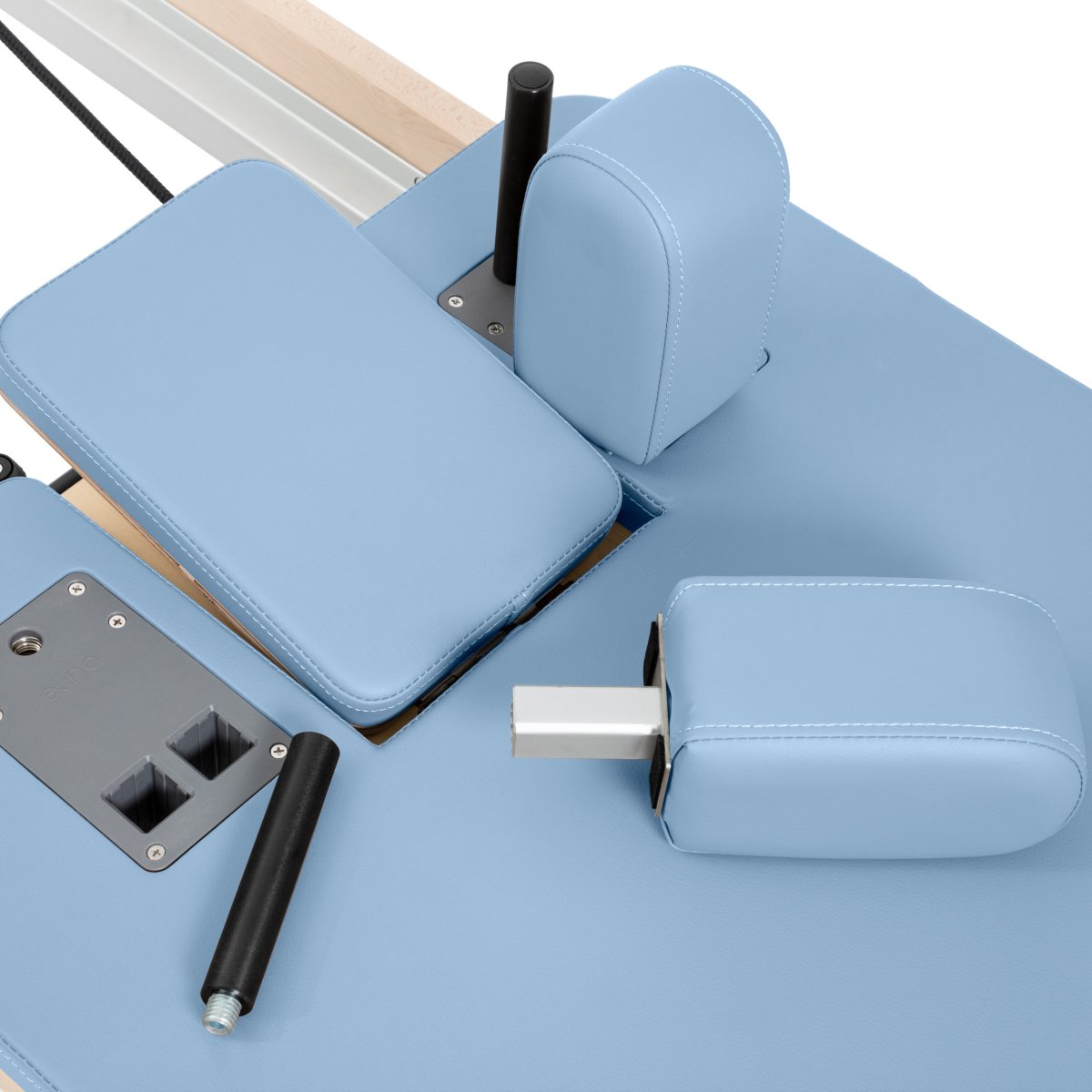

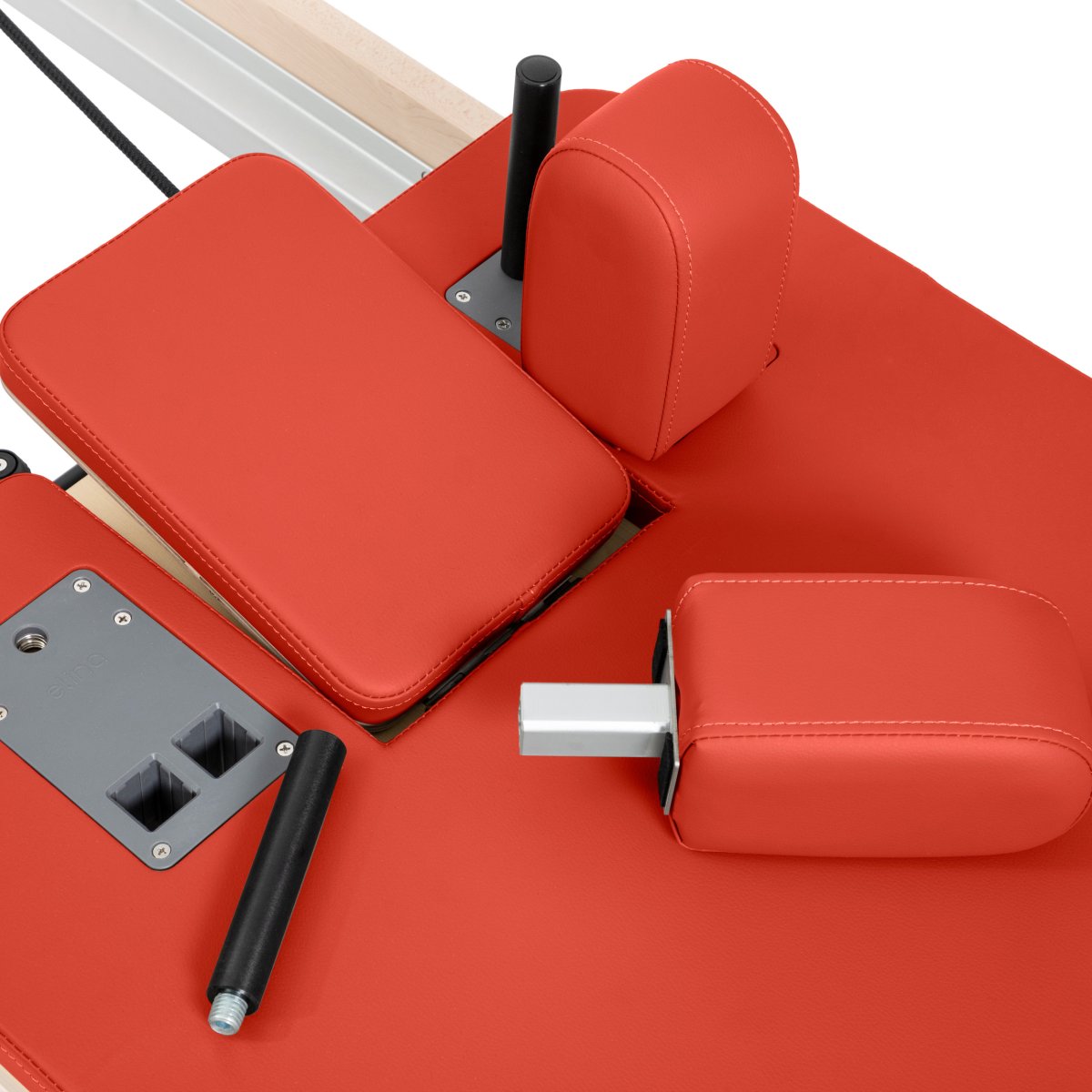

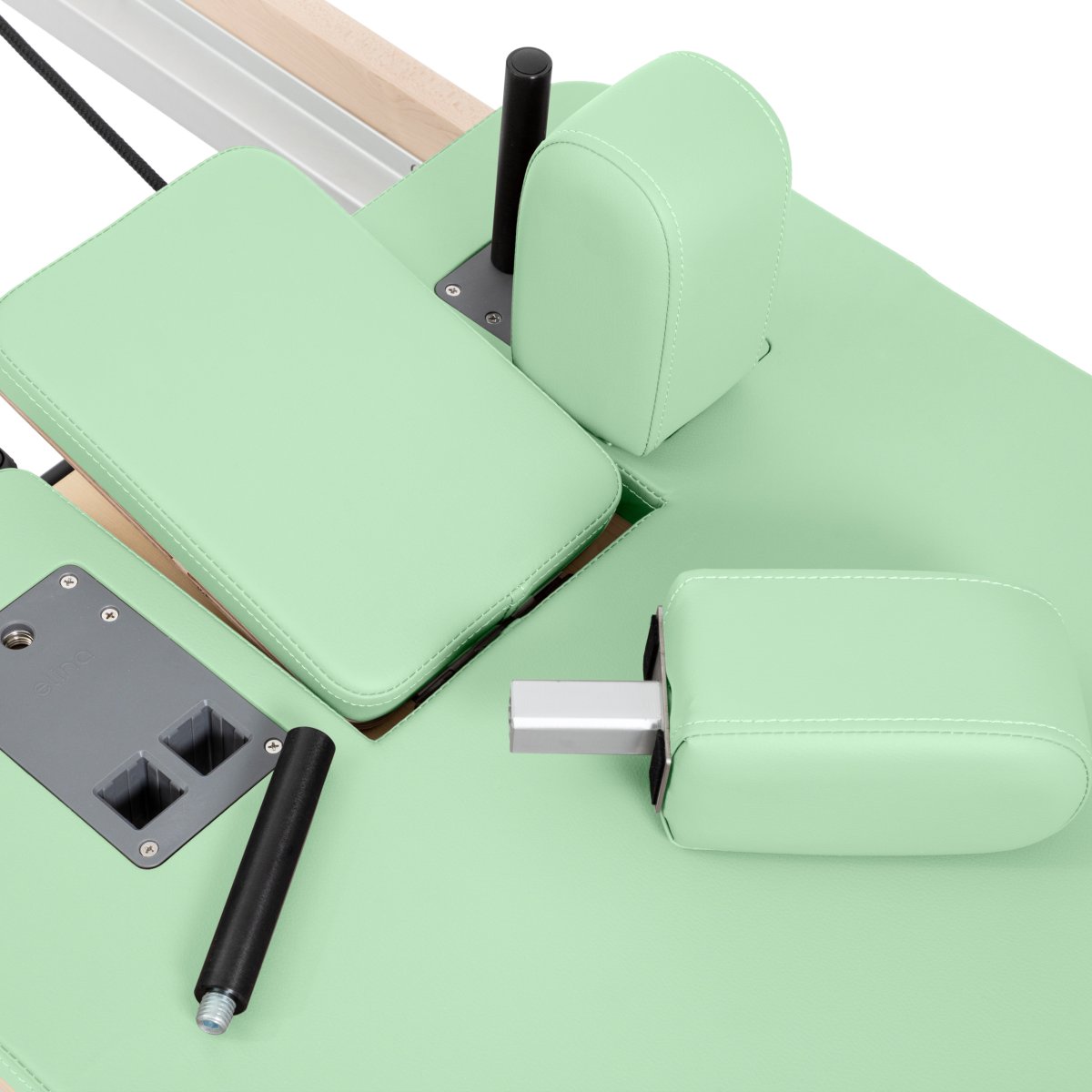

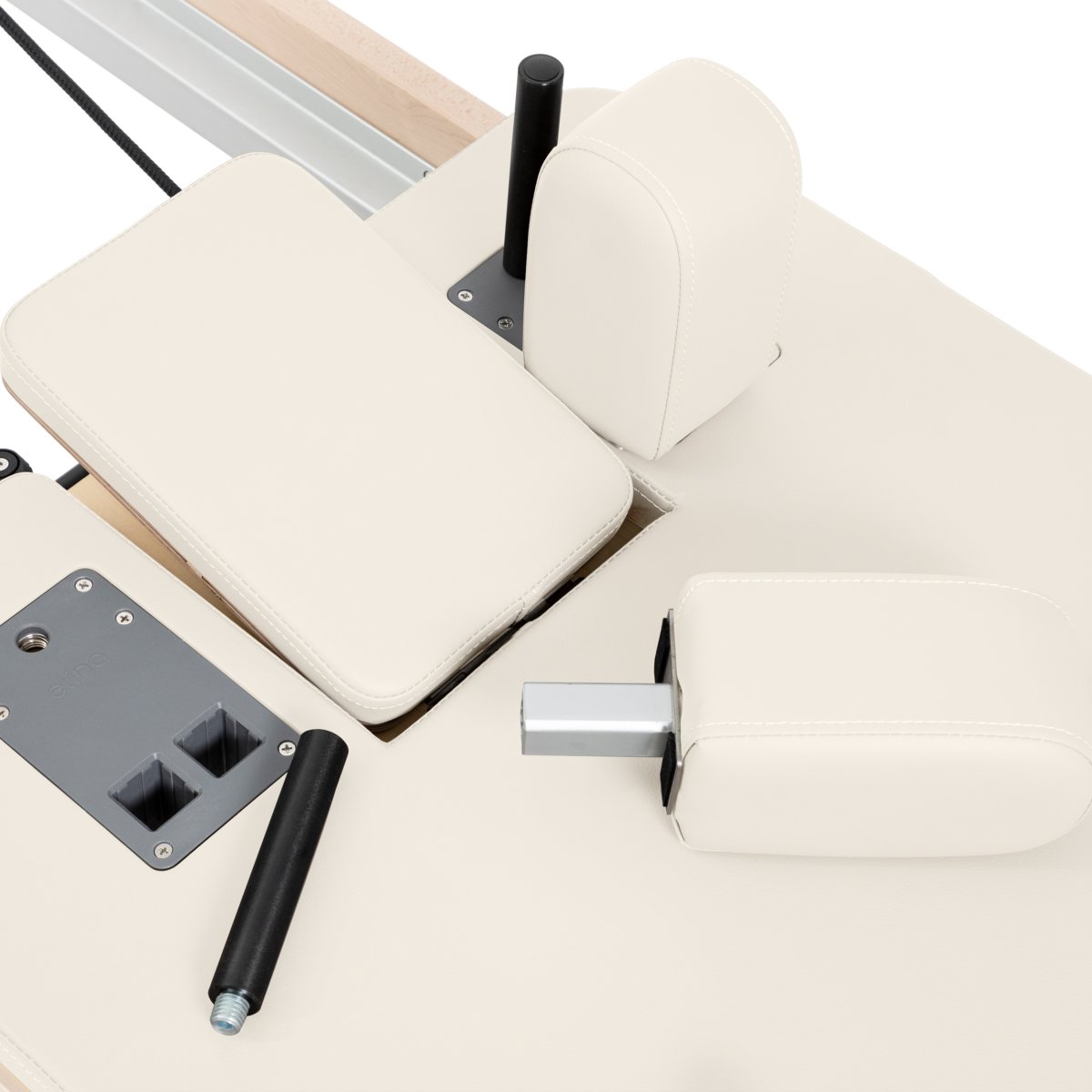

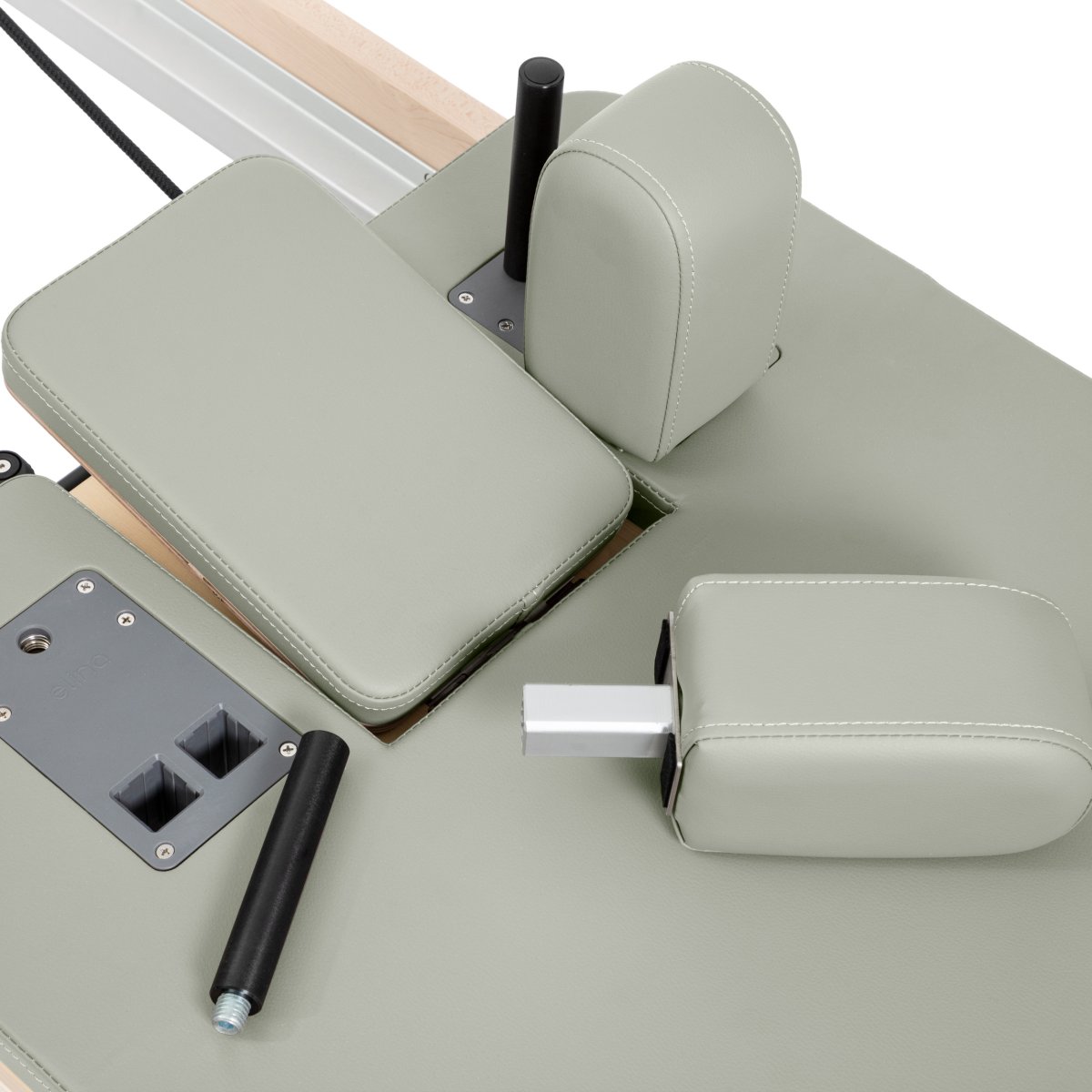

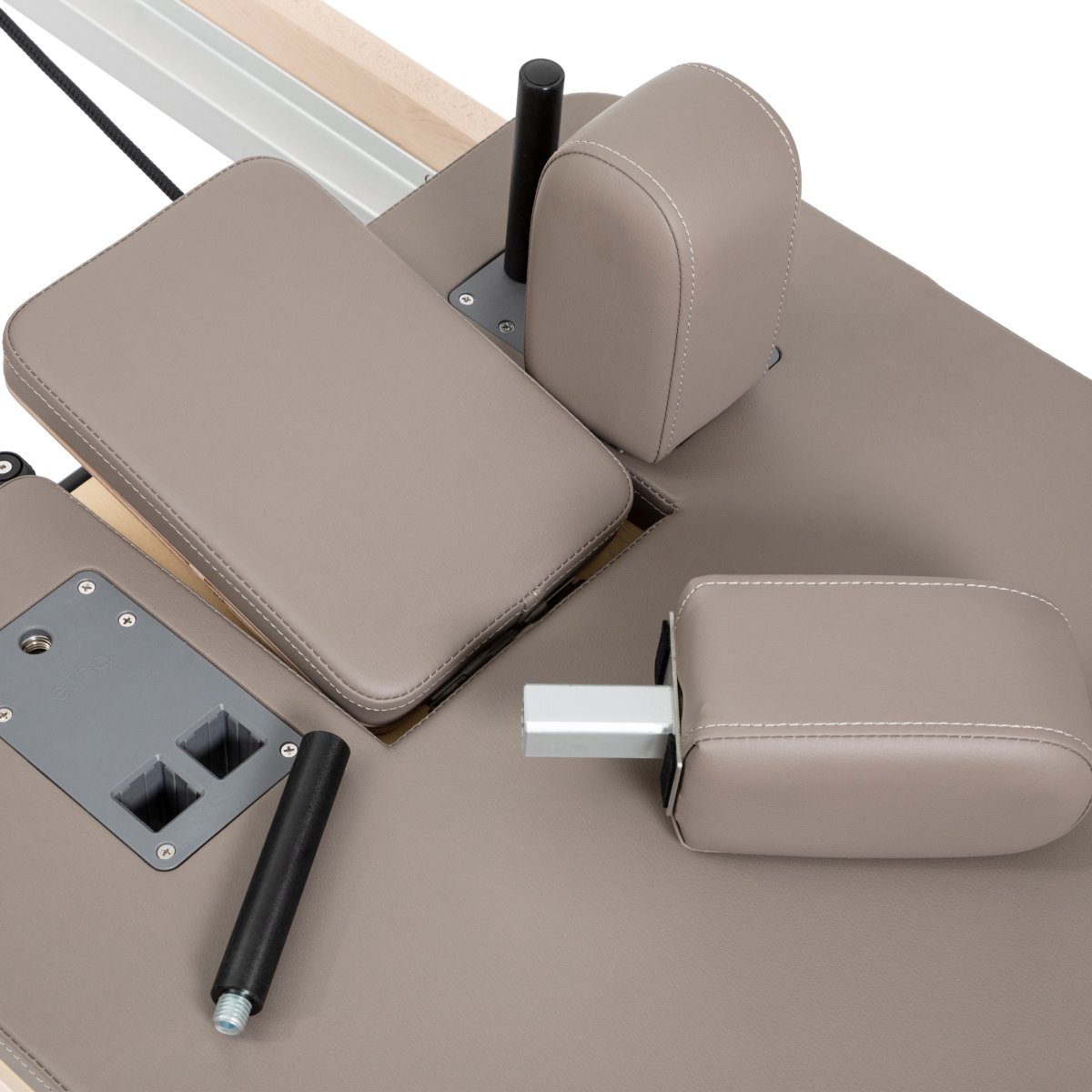

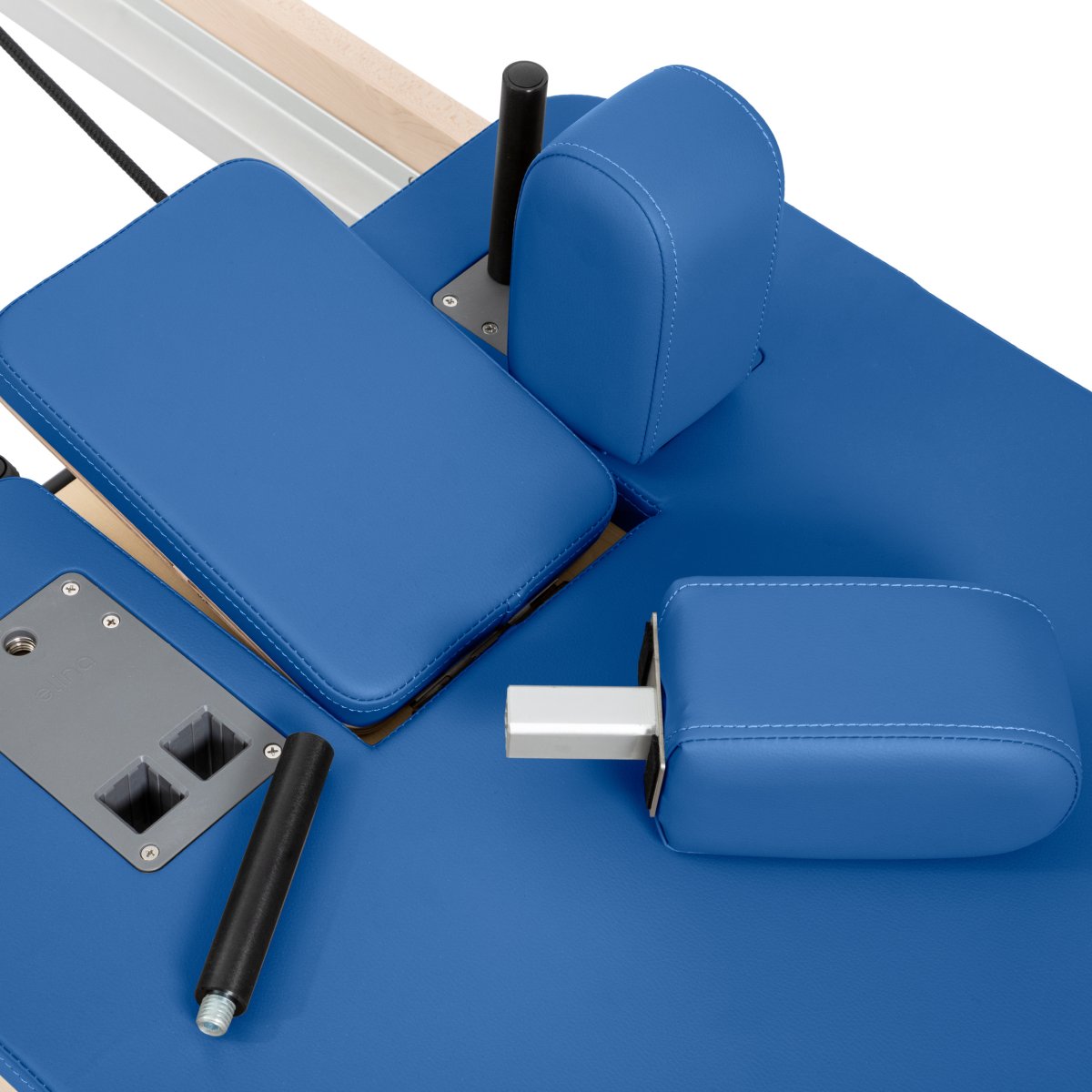

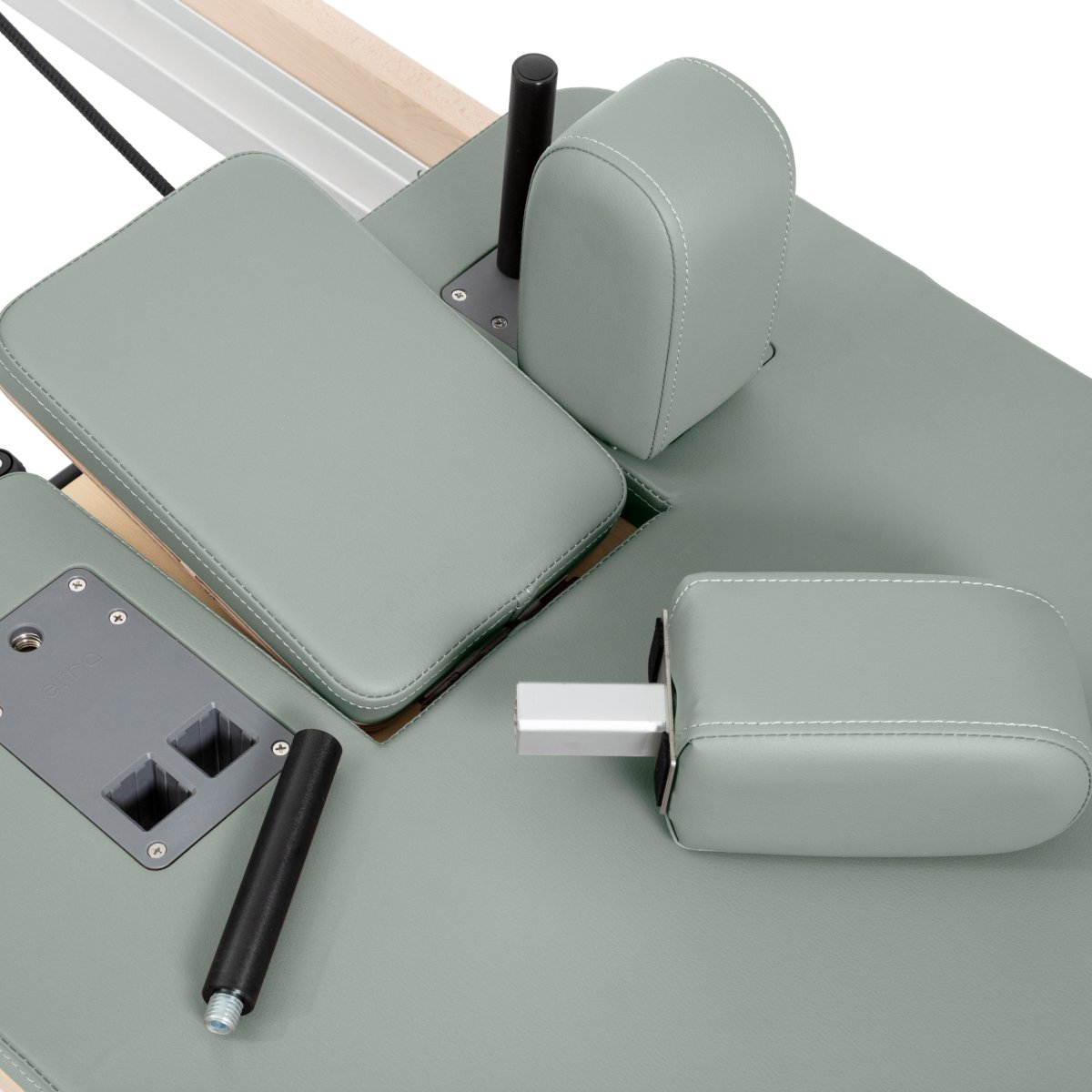

- Adjustable padded shoulder rests for easy placement and removal.

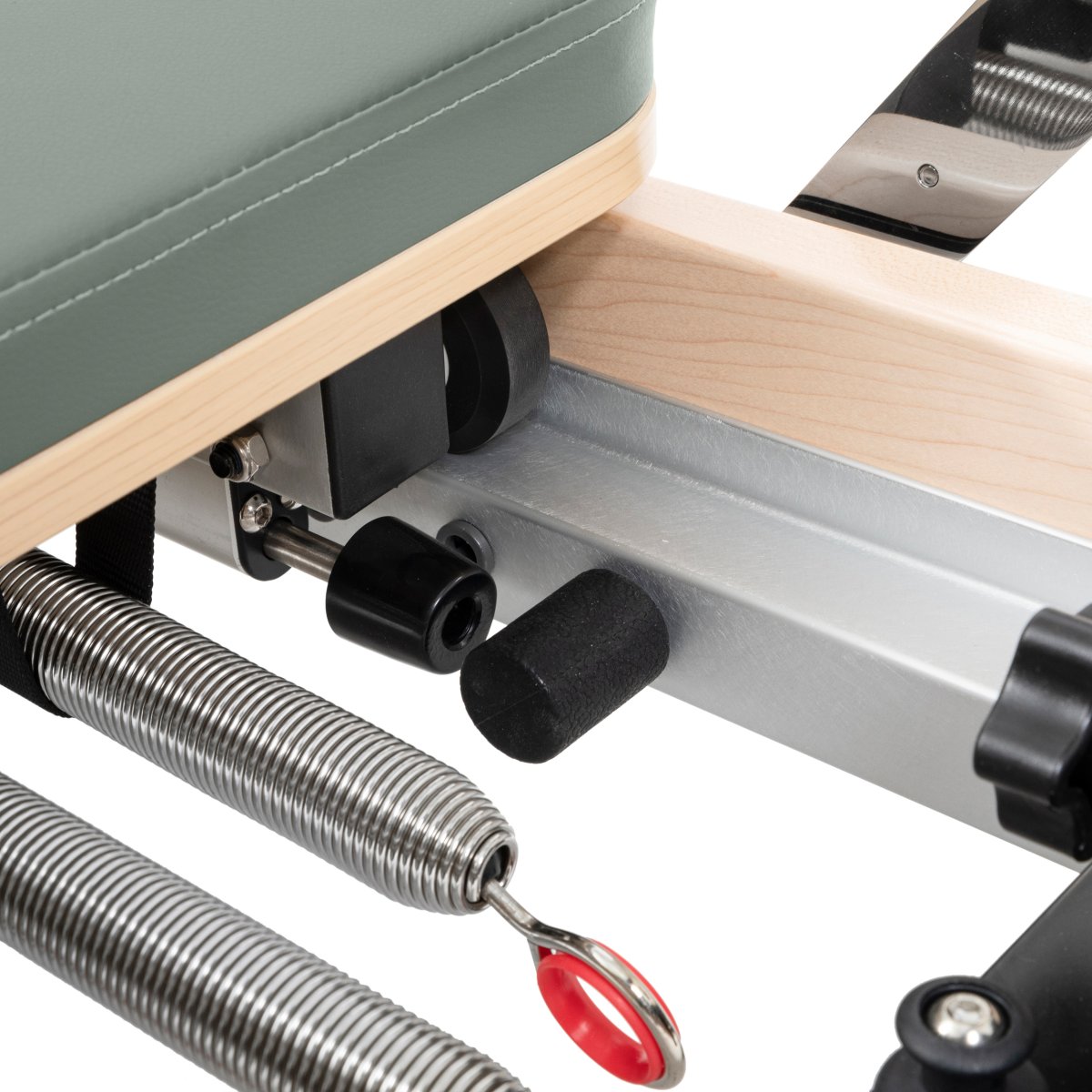

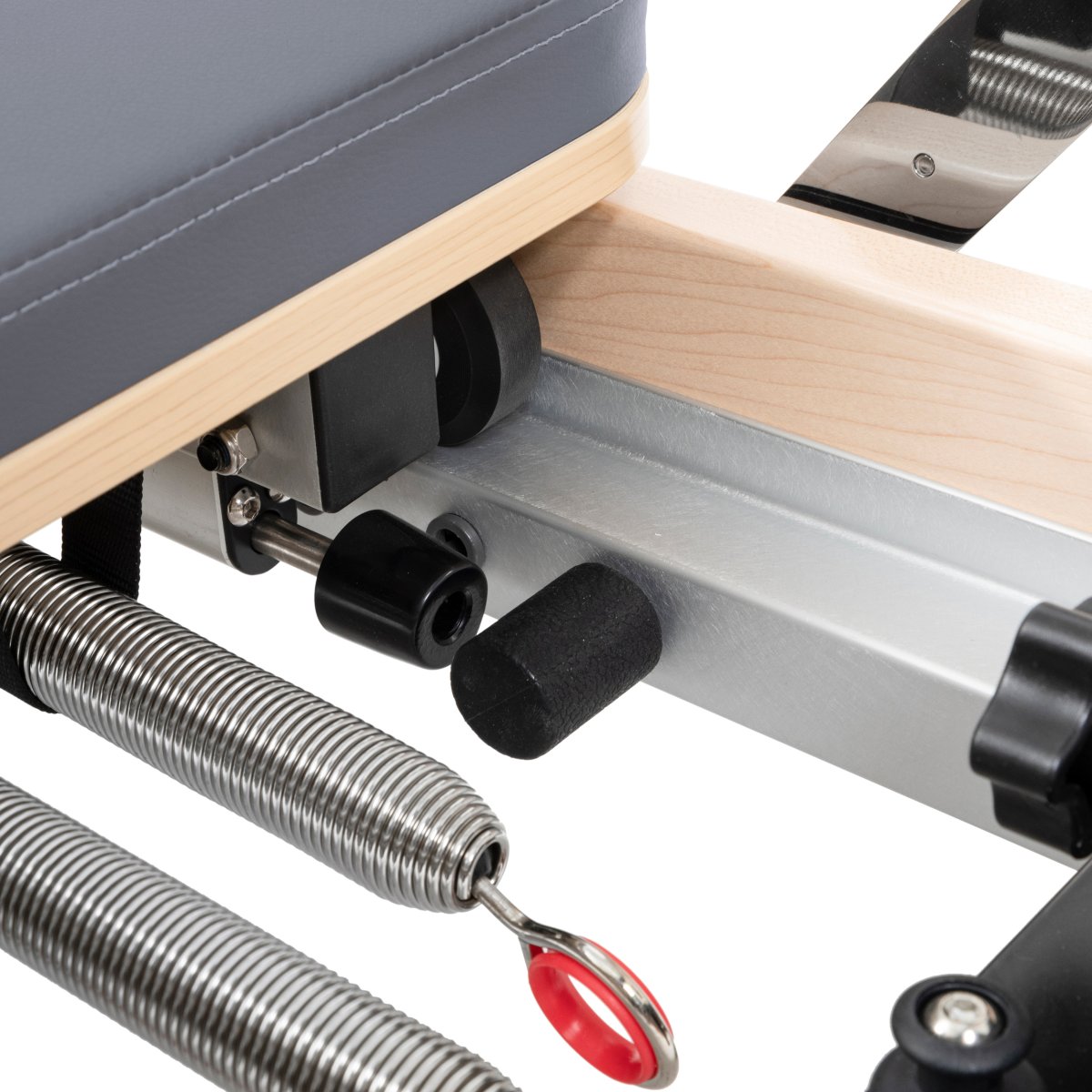

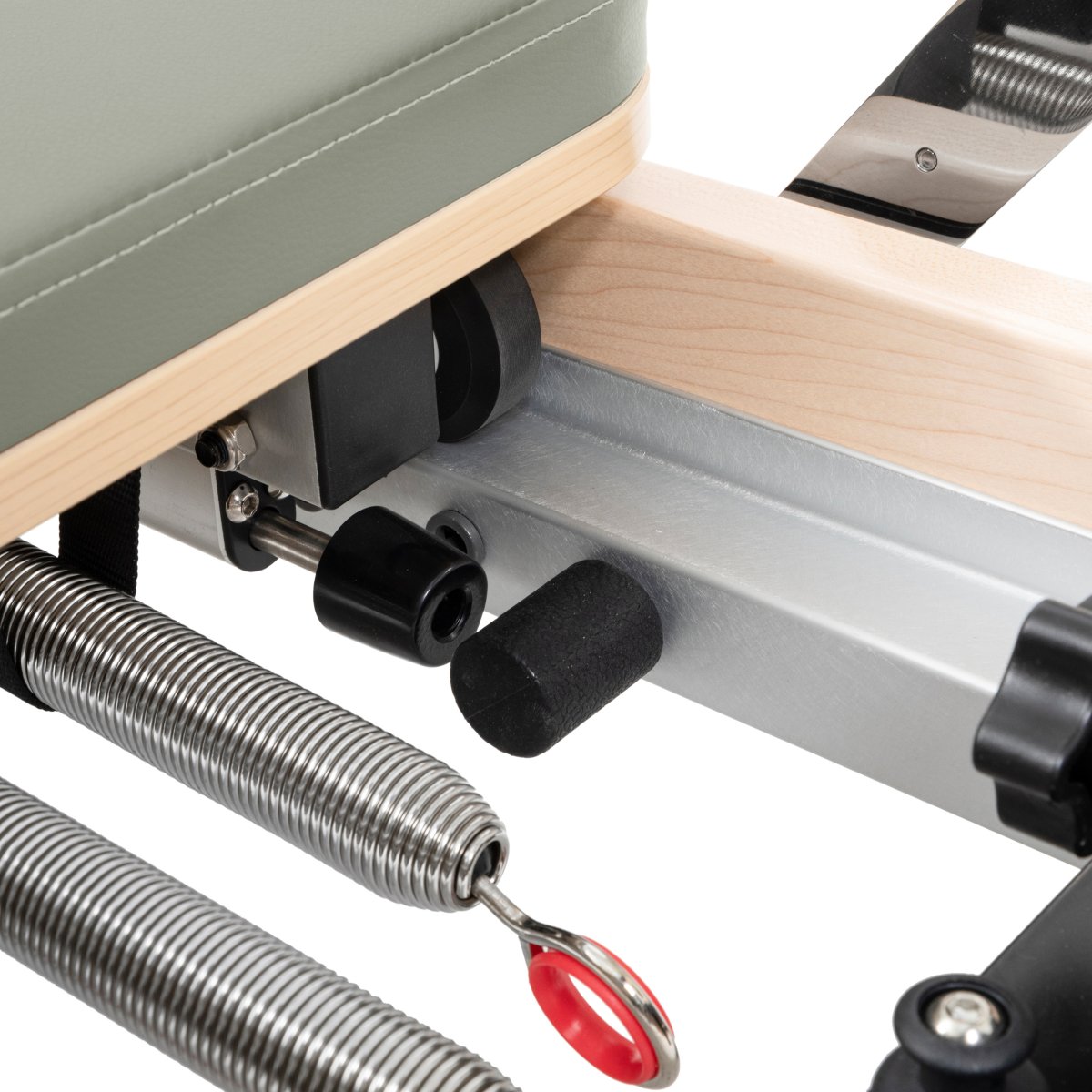

- Springs made of a high-quality alloy with great durability, providing optimal resistance.
- Adjustable headrest with three positions.
- Removable foot support with easy placement, thanks to its lateral finish that facilitates gripping.
Includes
- Vertical Reformer for home: Structure + carriage.

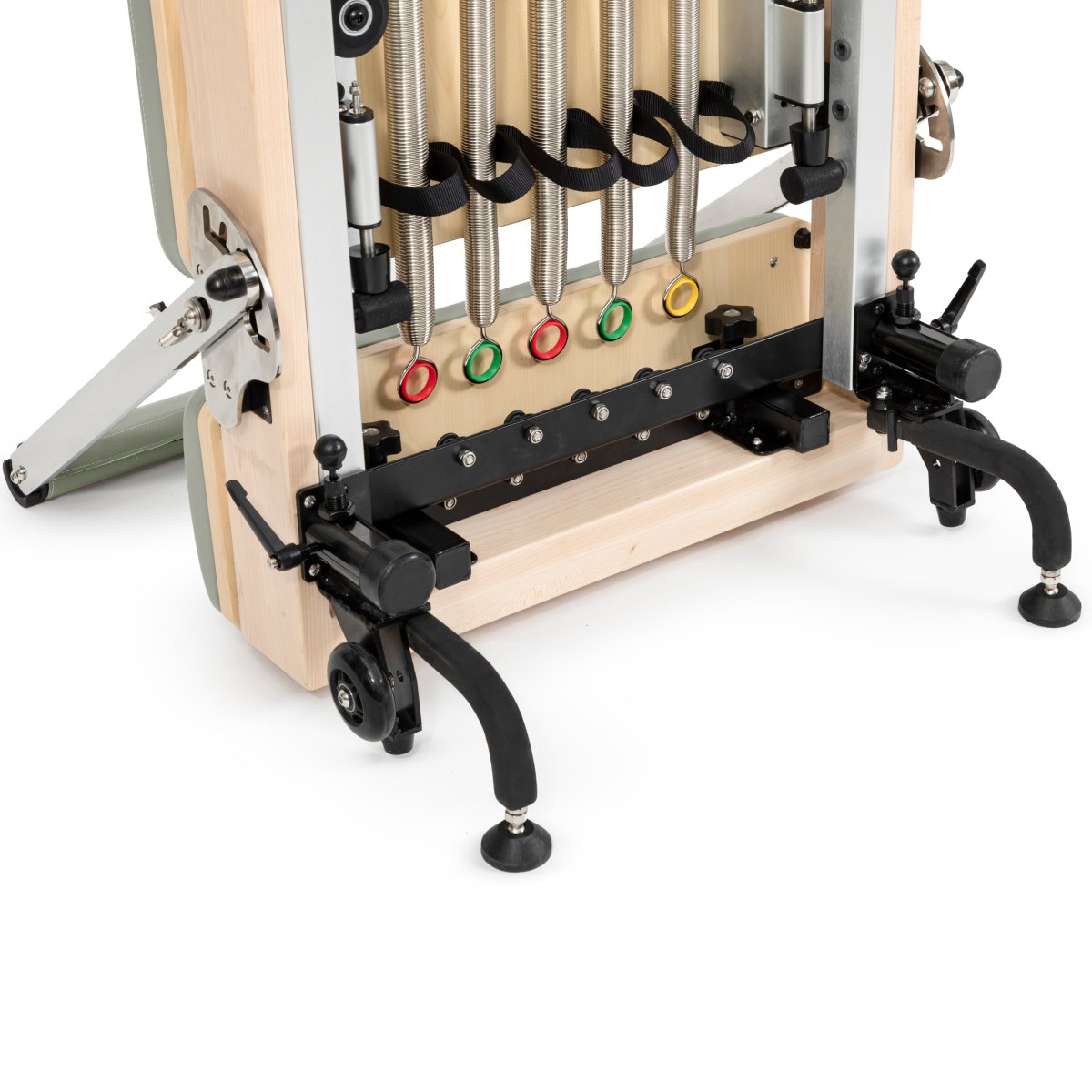

- Five high-precision springs with three levels of resistance that can be combined depending on the desired intensity.
- Two green springs with low resistance
- One yellow spring with medium intensity
- Two red springs with high intensity.

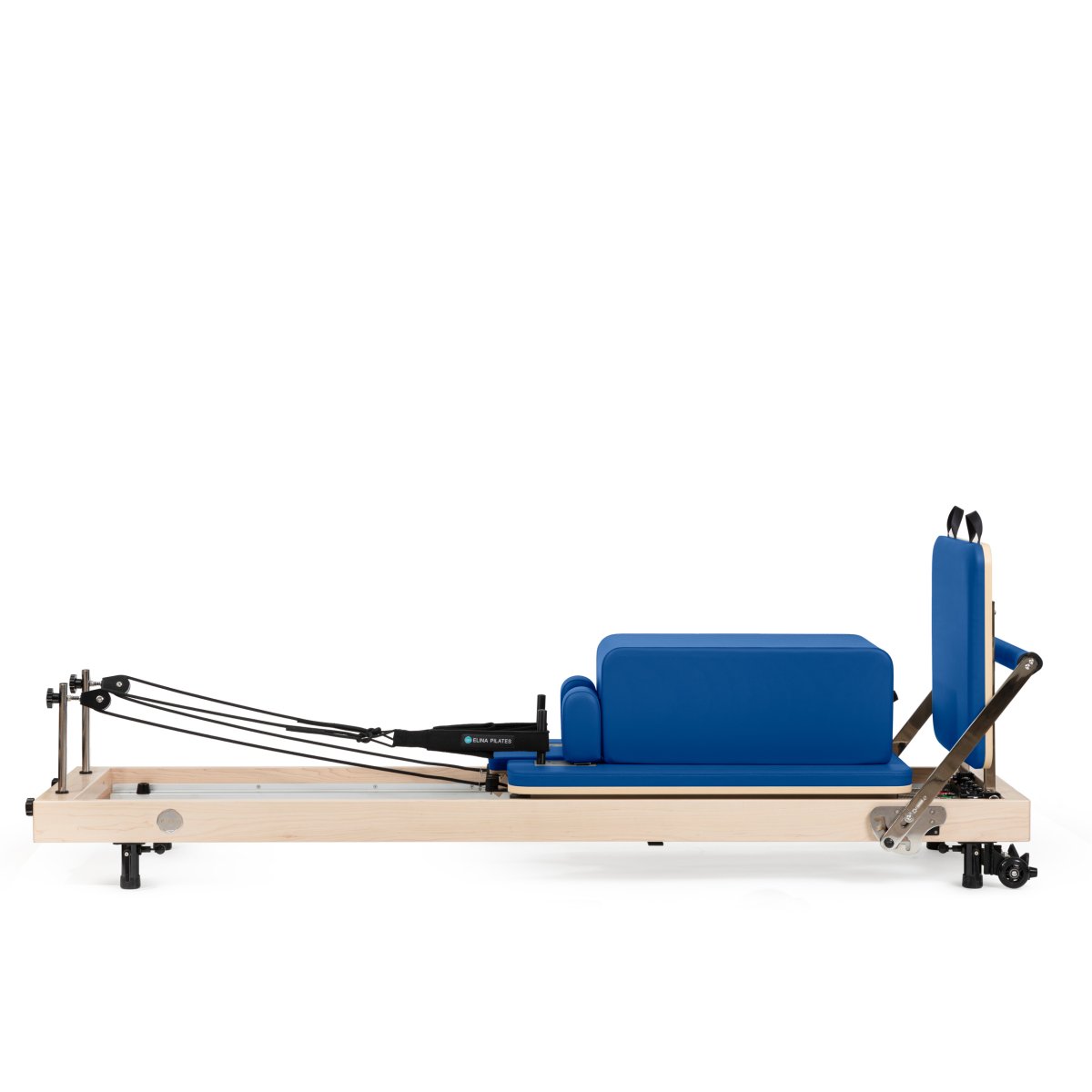

- Extra-wide padded box that makes it easy to place between the shoulder rests and supports, providing complete stability. It can be placed both parallel and perpendicular to the reformer.
- Padded shoulder rests that are very easy to insert and remove.
- Sturdy and wide jump board to facilitate foot placement, designed for easy positioning and removal.
- Padded foot platform.
- One set of hand straps and one set of double loop hand and foot straps.
- One set of ropes.
- Anti-slip mat.
- Retractable automatic cord storage system.
- 2 wheels for transporting the Vertical Reformer.
- 4 adjustable legs with 2 height options.

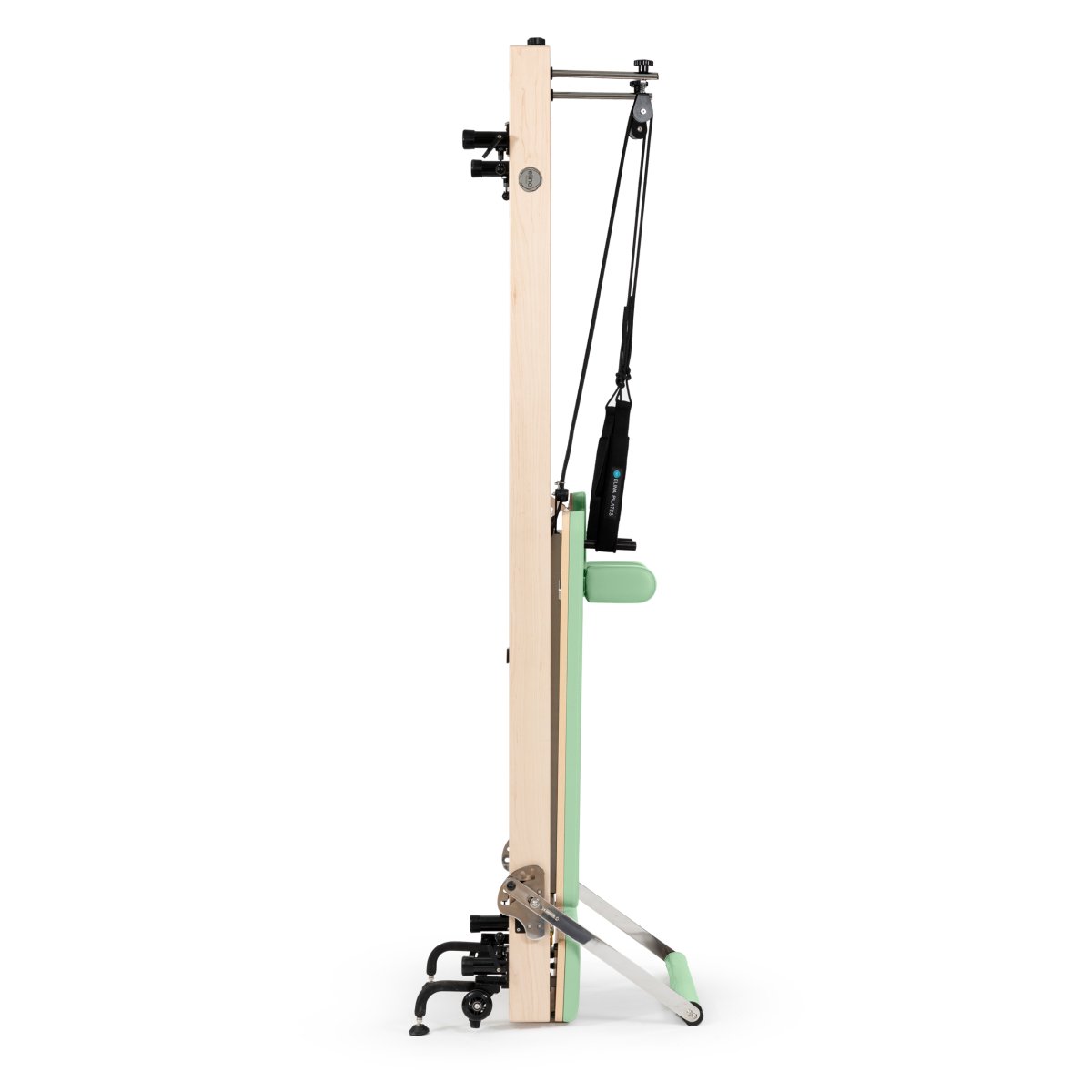

- 2 safety legs to keep the reformer in a vertical position.

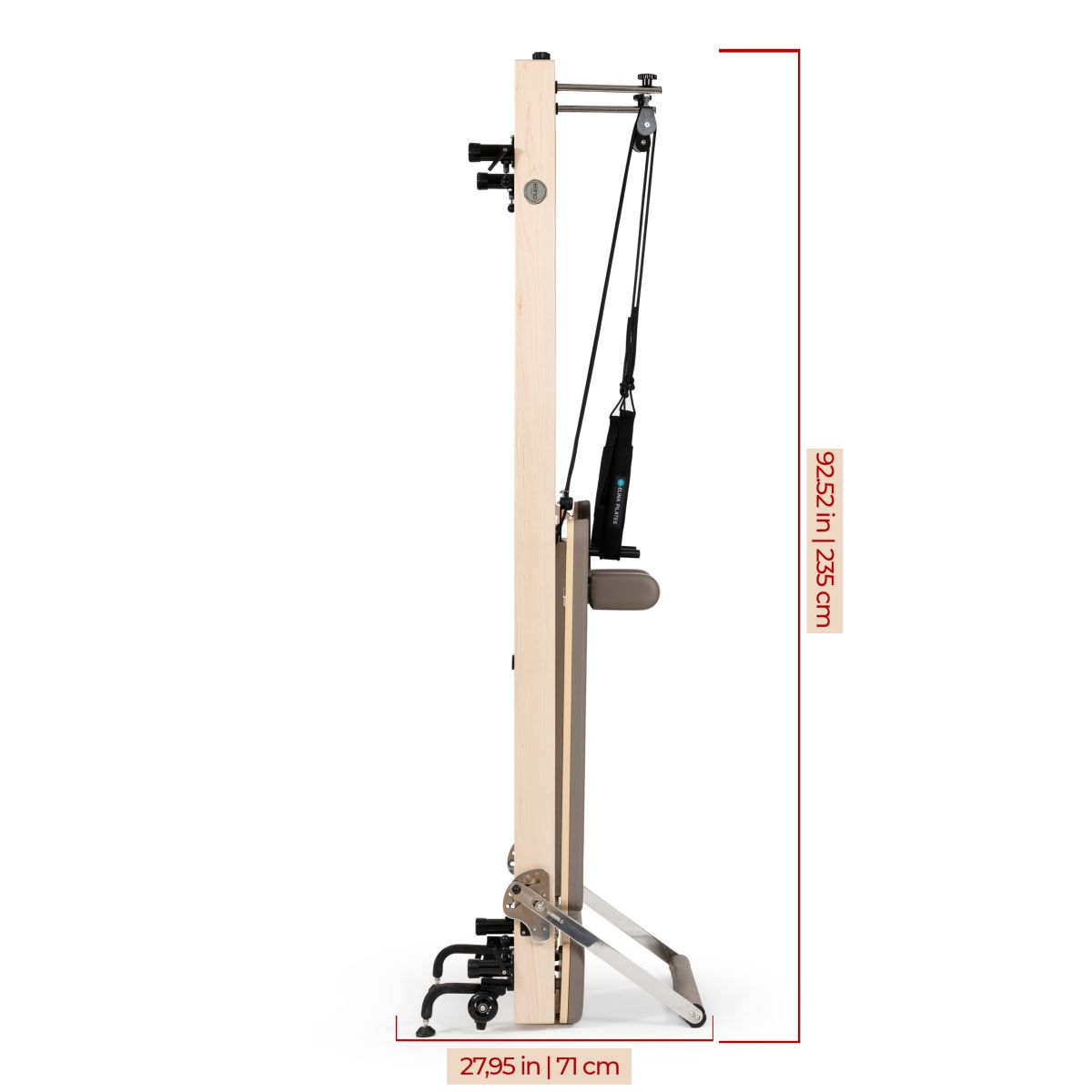

Dimensions
Reformer Length: 92.52 in | 235 cm
Reformer Width: 24.02 in | 61 cm
Reformer Structure Height: 11.02 in | 28 cm (With folded legs) 13.98 in | 35.5 cm (With extended legs. Maximum height)
Bed Length: 39.76 in | 101 cm (Total) 29.53 in | 75 cm (Under shoulder rest)
Bed Height: 14.17 in | 36 cm
Weight: 136.687 lb | 62 kg (without accessories)
Max Weight Supported: 330.7 lb | 150 kg
Box Dimensions: 26.77 in long X 15.35 in wide X 11.02 in high | 68 cm long X 39 cm wide X 28 cm high
Jump Board: 22.44 in long X 23.03 in wide | 57 cm long X 58.5 cm wide
Maximum Carriage Travel: 74.80 in | 190 cm
Options
Colors
Our reformers are available in nine standard upholstery colors (black, gray, blue, green, red, ivory, ocean blue, cream, and mocha) and in over one hundred customizable upholstery colors, available upon request (contact us for details).
Height
Available in two heights: 28 cm and 35.5 cm, measured from the reformer bed to the floor with the legs extended.
Warranty
Two years warranty
Maintenance Tips
Wheels, Adjustable Bars, and Guides
To ensure the proper functioning of the wheel bearings, the adjustable spring bars, and the guides on which the carriage slides, periodic cleaning and lubrication are recommended.
Upholstery
Clean with water and a microfiber cloth.
Springs
To maintain the tension and safety of the springs, it is recommended to replace them approximately every two years, although this will depend on the intensity of use.
Product Details
| SPECIFICATIONS |
DETAILS |
| Reference |
ELN 300652 |
| Length |
92.52 in | 235 cm
|
| Width |
24.02 in | 61 cm
|
| Structure height |
11.02 in | 28 cm (Legs folded) 13.98 in | 35.5 cm (Legs extended. Maximum height) |
| Maximum height |
31.50 in | 80 cm (With jump board) |
| Width of the bed |
13.98 in | 35.5 cm (Legs extended. Maximum height) |
| Bed length |
39.76 in | 101 cm (Total) 29.53 in | 75 cm (Under shoulder pad) |
| Weight |
136.687 lb | 62 Kg |
| Box |
Yes |
| Jumping Board |
Yes 22.44 in length X 23.03 in width X 57 cm length X 58.5 cm width X 11.02 in height X 28 cm height (11.02 in | 28 cm high) |
| Double Loop Wings (Hands & Feet) |
Yes |
| Padded Hands |
Yes |
| Simple Handles |
Yes |
| Tower |
No |
| Removable / Adjustable Shoulder Pads |
Yes | 4 positions |
| Springs |
2 reds, 2 greens, 1 yellow |
| Pulley Ropes |
Yes |
| Footrest |
Yes |
| Structural Material |
American maple wood |
| Rope Anchoring System |
Retractable |
| Tower Possibility |
No |
| Mat |
No |
| Spring Bar |
Fixed | 2 heights |
| Pulley Positions |
Yes |
| Adjustable Pulley Height |
No |
| Adjustable Pulley Width |
No |
| Transport Wheels |
Yes |
| Bed Brake Mechanism |
Cushioned, 2 positions Total trolley travel: 190cm |
| Foldable |
No |
| Vertical Position |
Yes |
| Roll-down Bar |
No |
| Box Size |
26.77 in long X 15.35 in wide X 11.02 in tall | 68 cm long X 39 cm wide X 28 cm tall |
| Push-bar |
No |
| Foot Bar System |
Traditional 6 positions |
| Foot Bar Displacement |
No |
| Headrest Adjustment |
3 positions |
| Foot Restraint Strap |
No |
| Chop Wood |
No |
| Safety Strap |
No |
| Stackable |
No |
| Structural Warranty |
5 years |
| Maximum Supported Weight |
150 kg | 330.7 lb |
