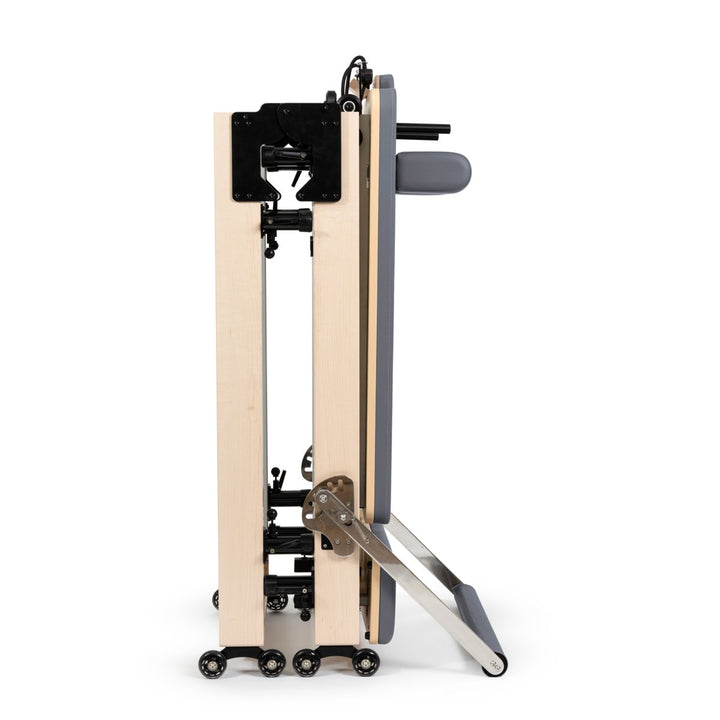

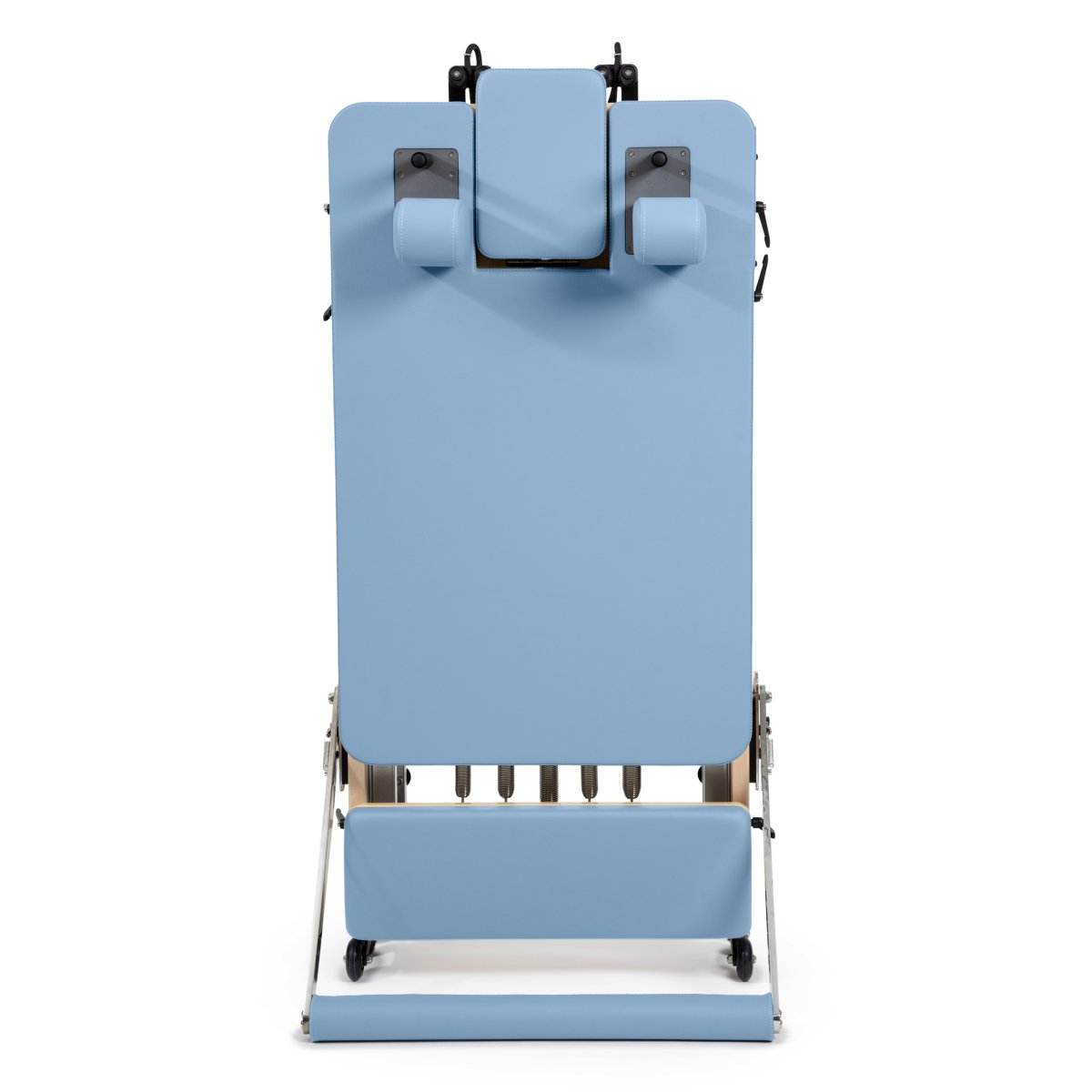

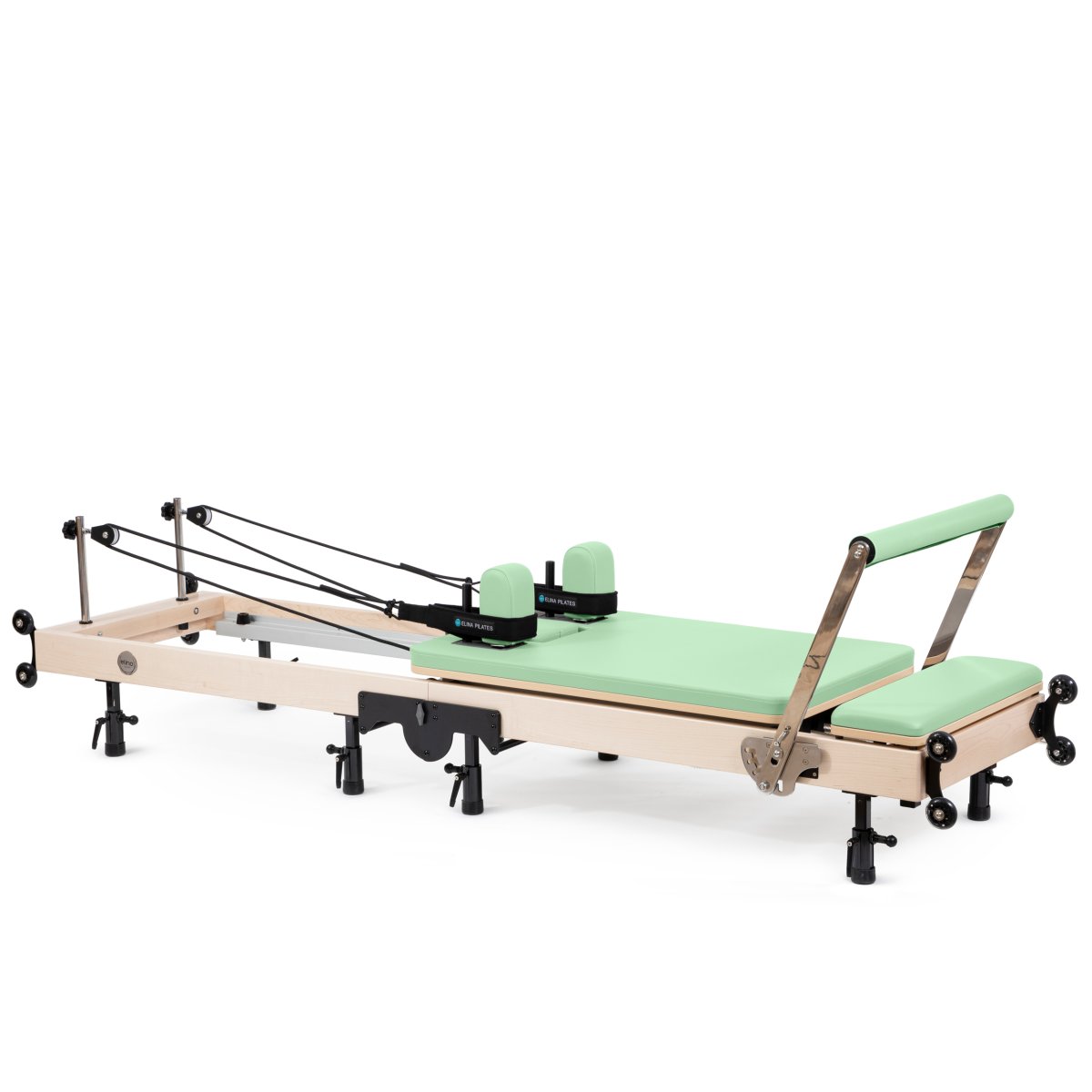

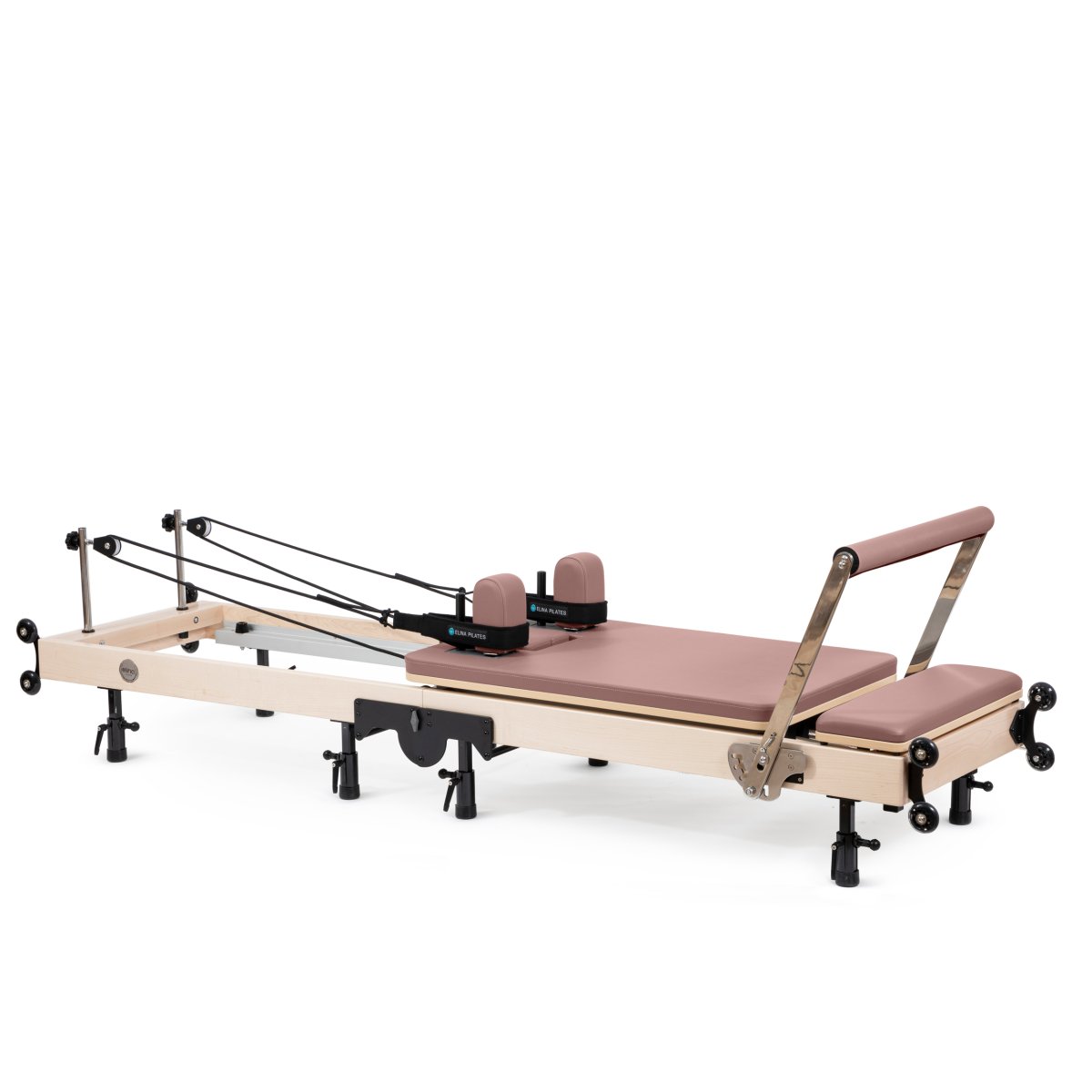

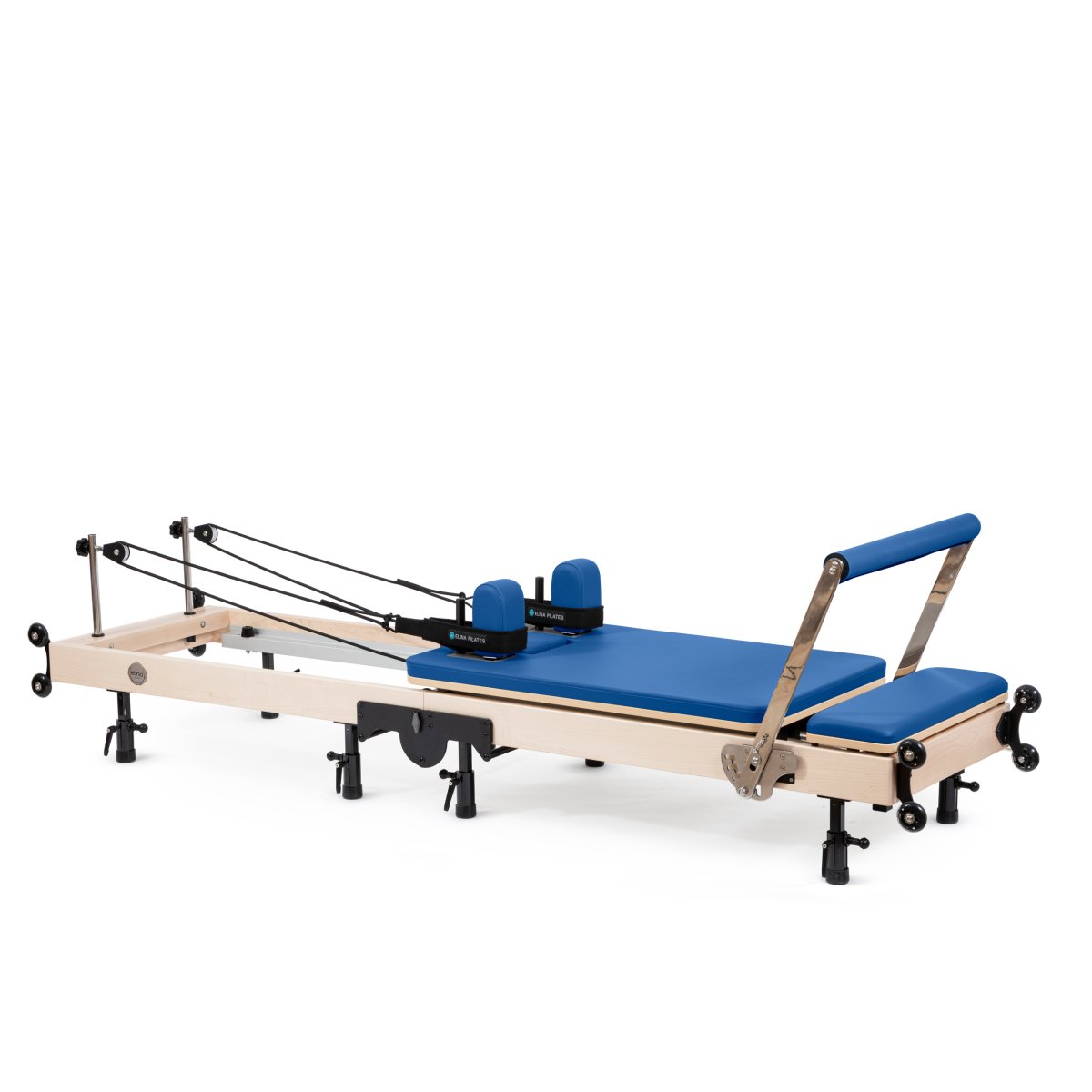

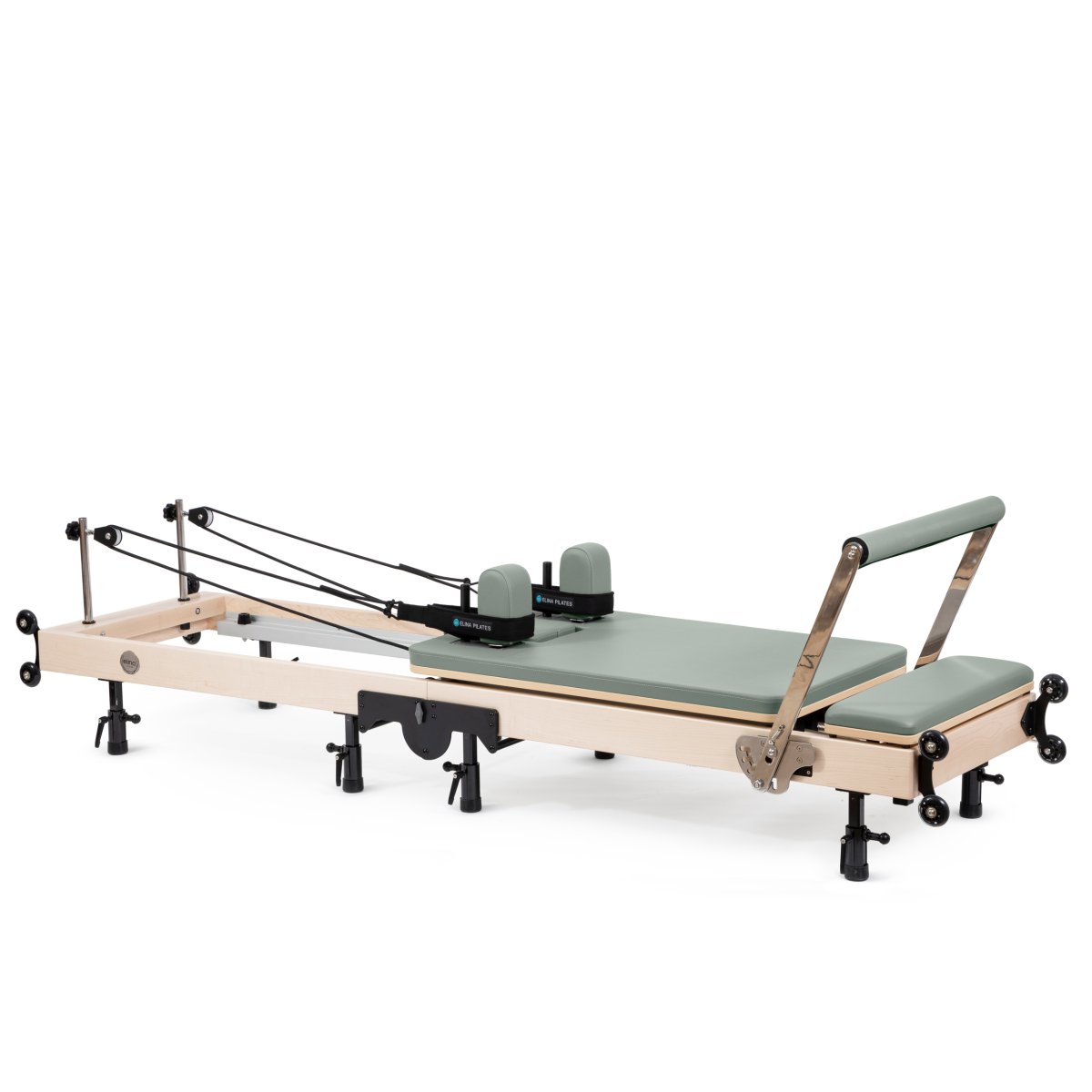

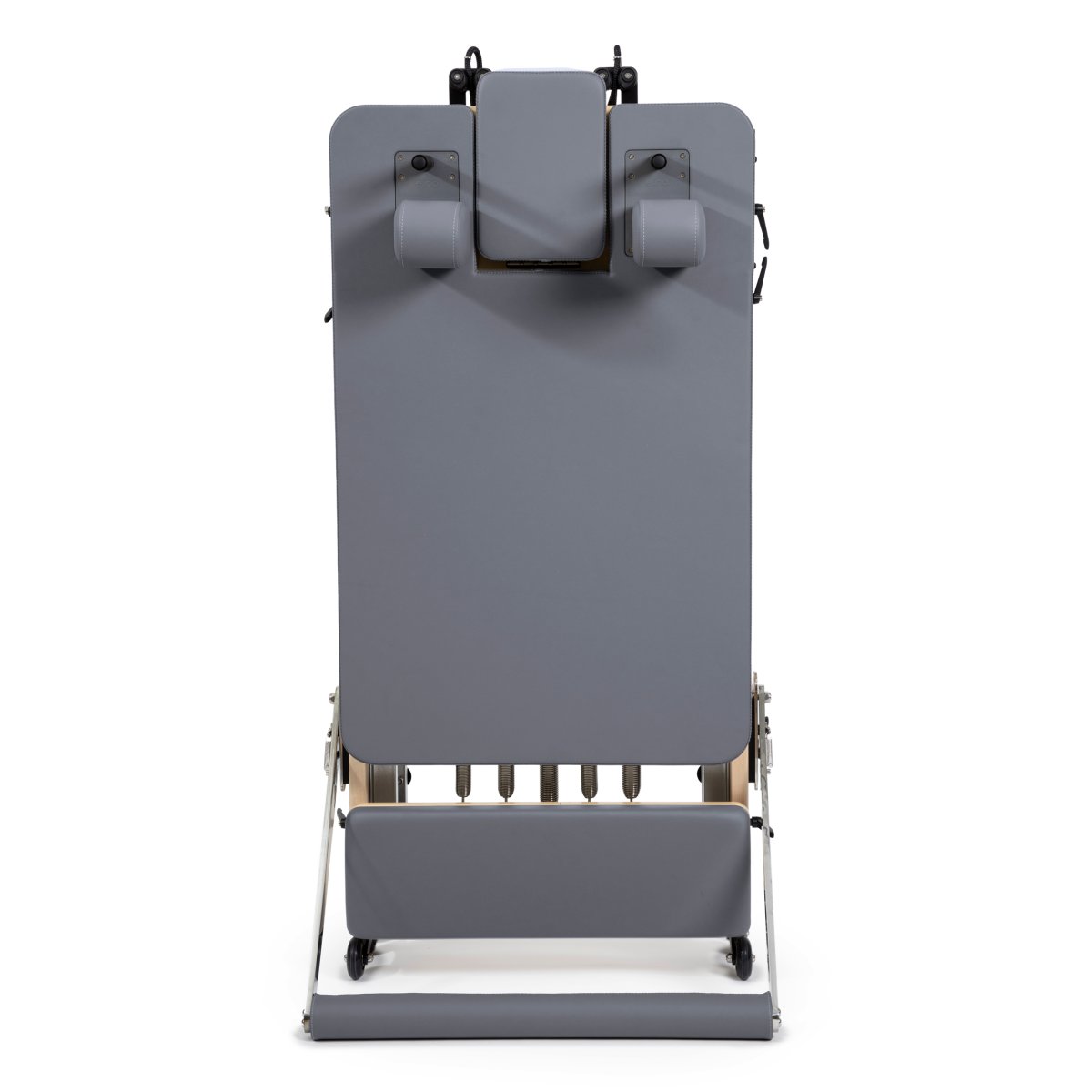

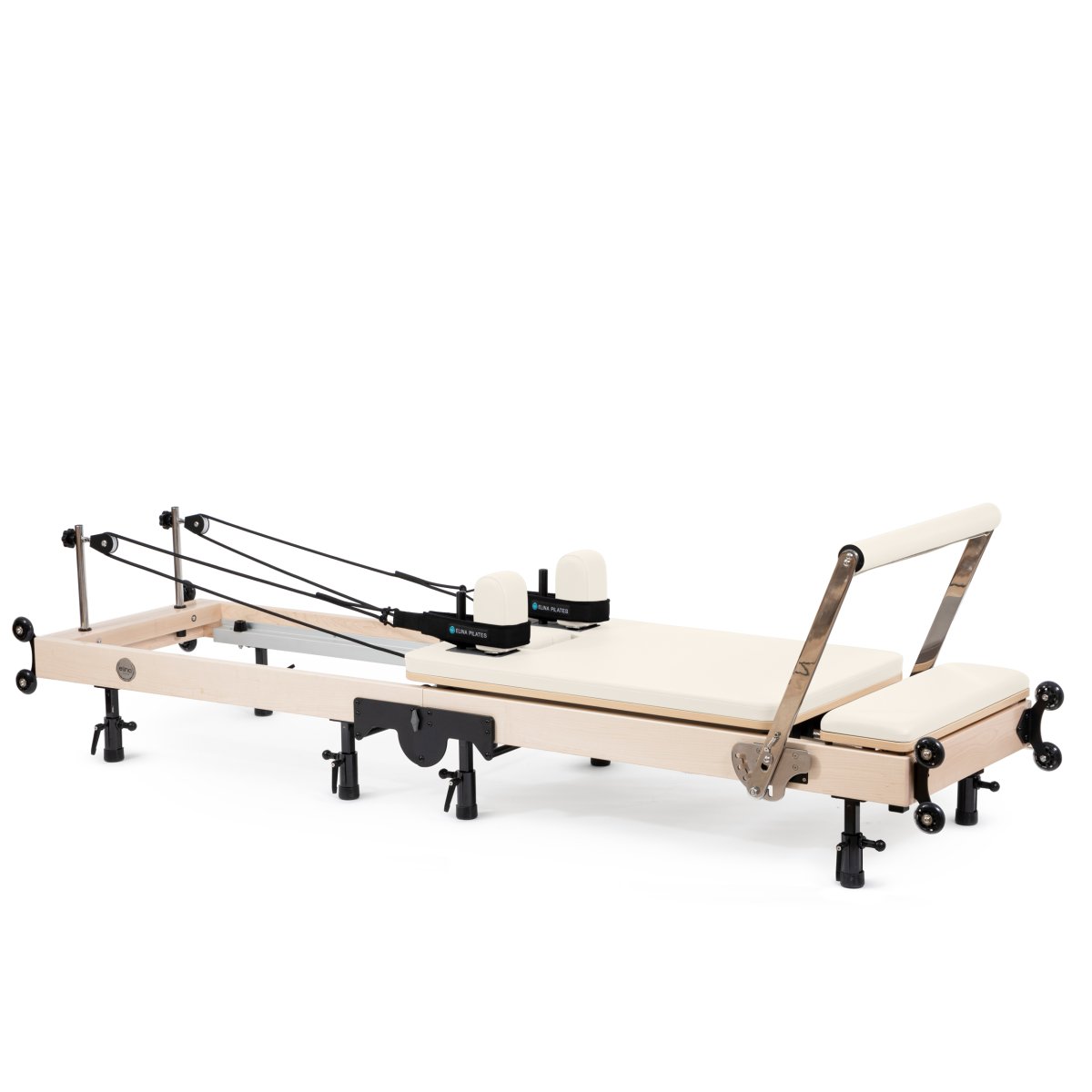

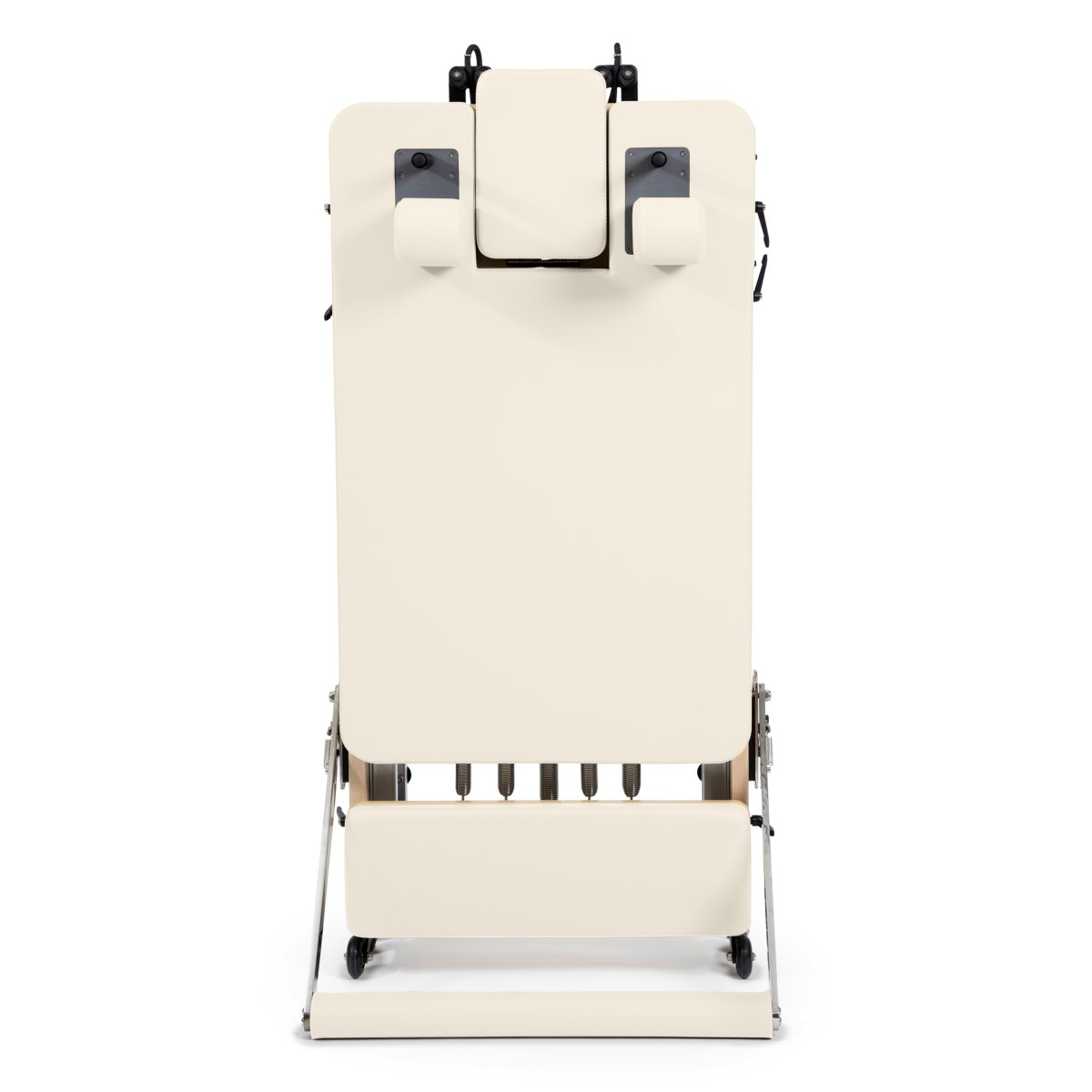

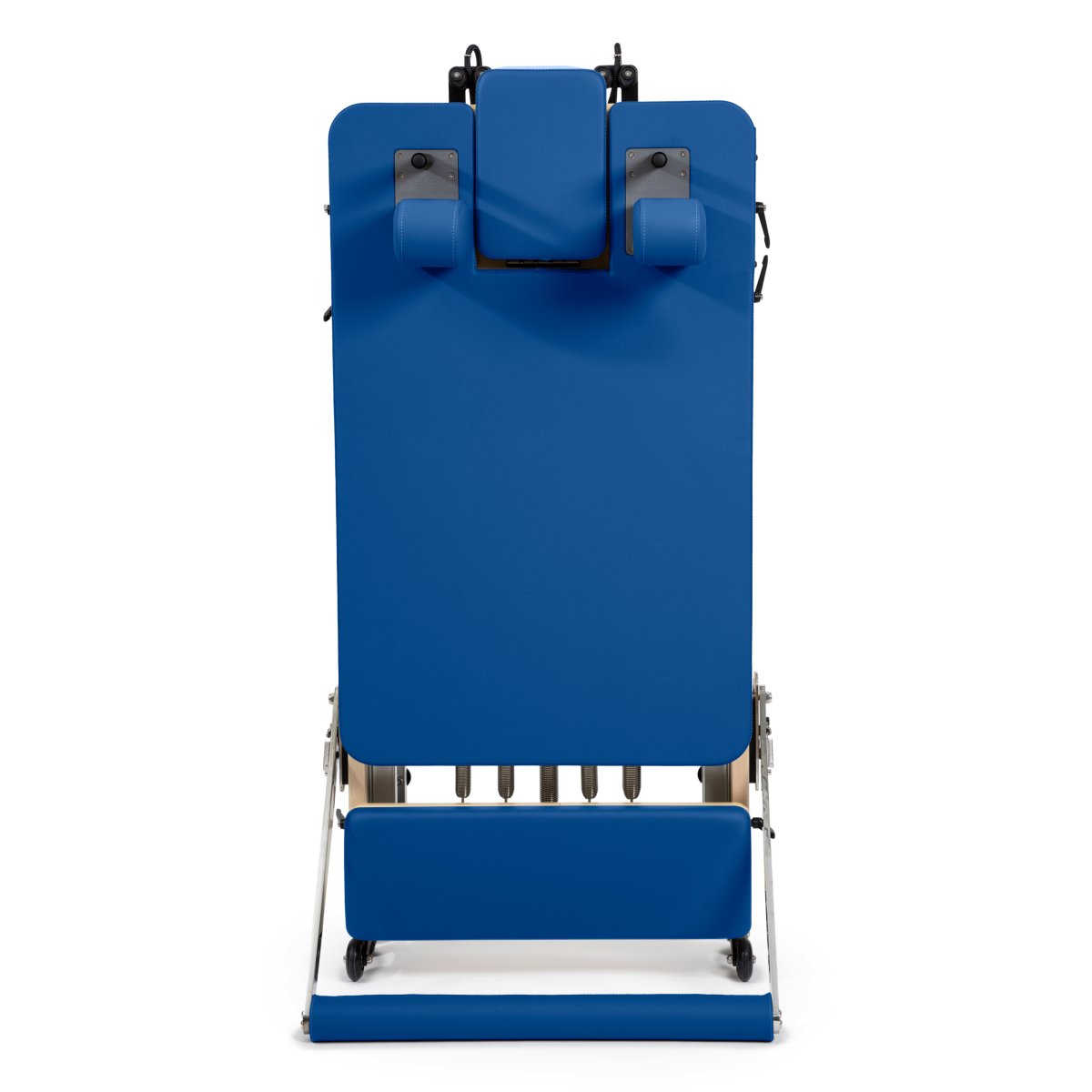

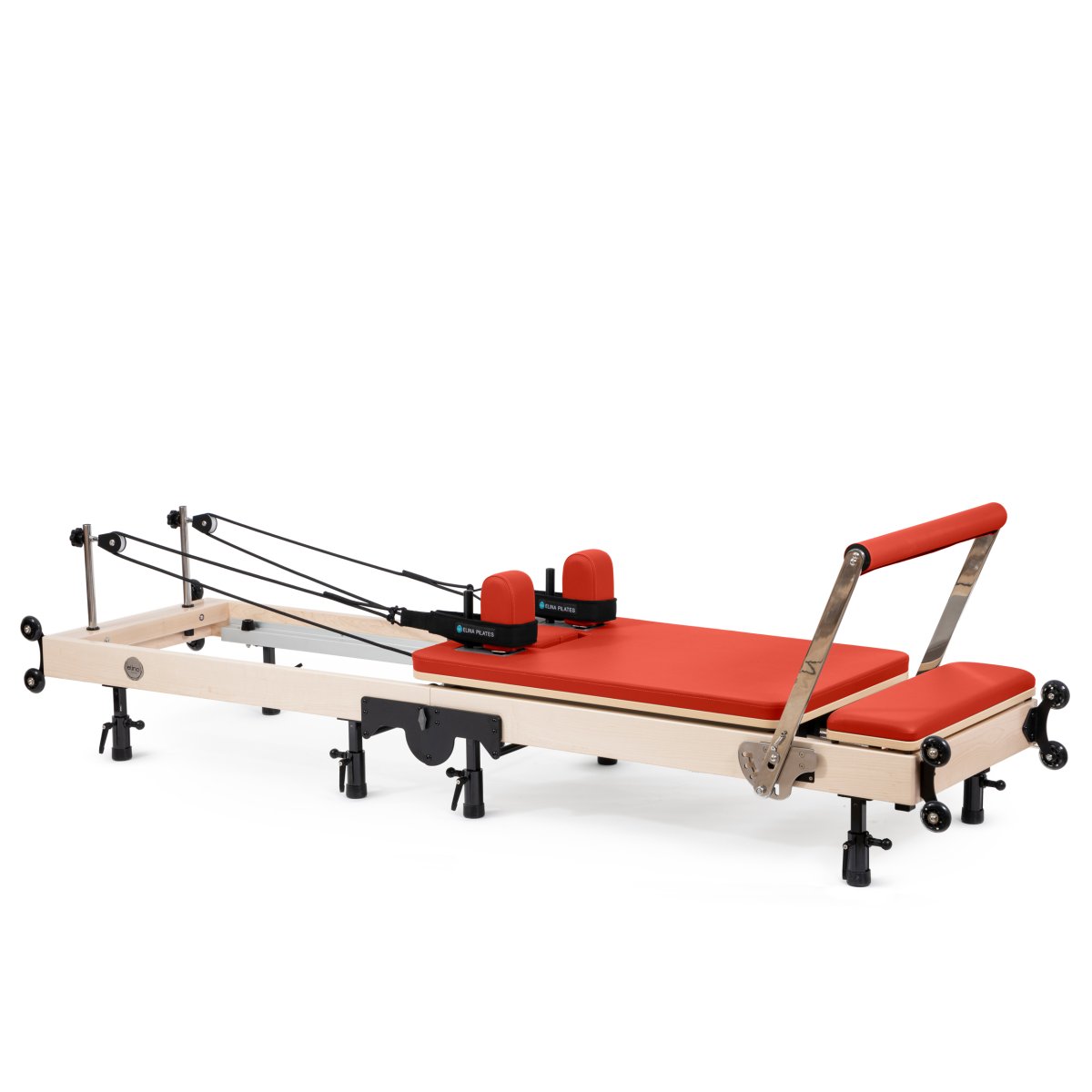

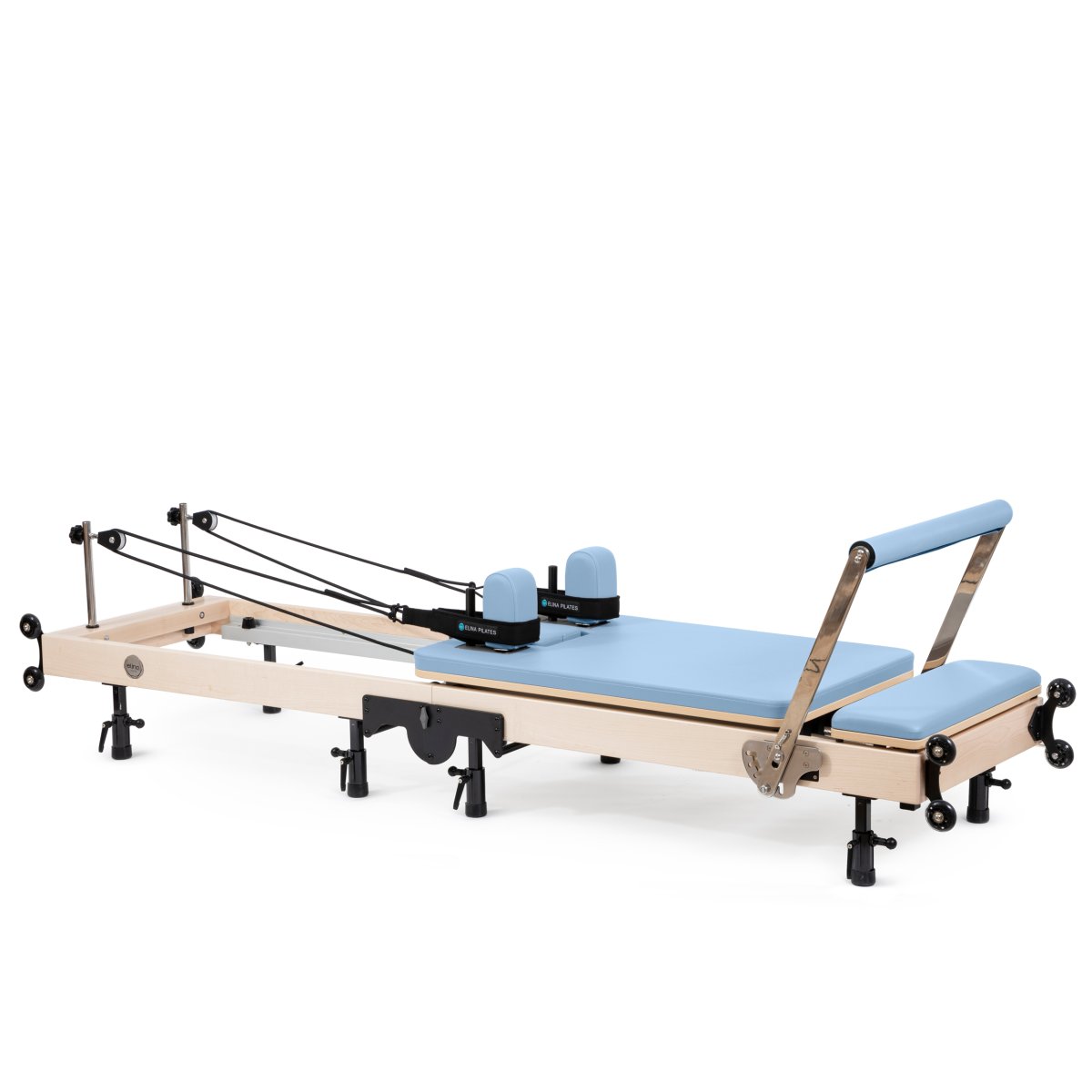

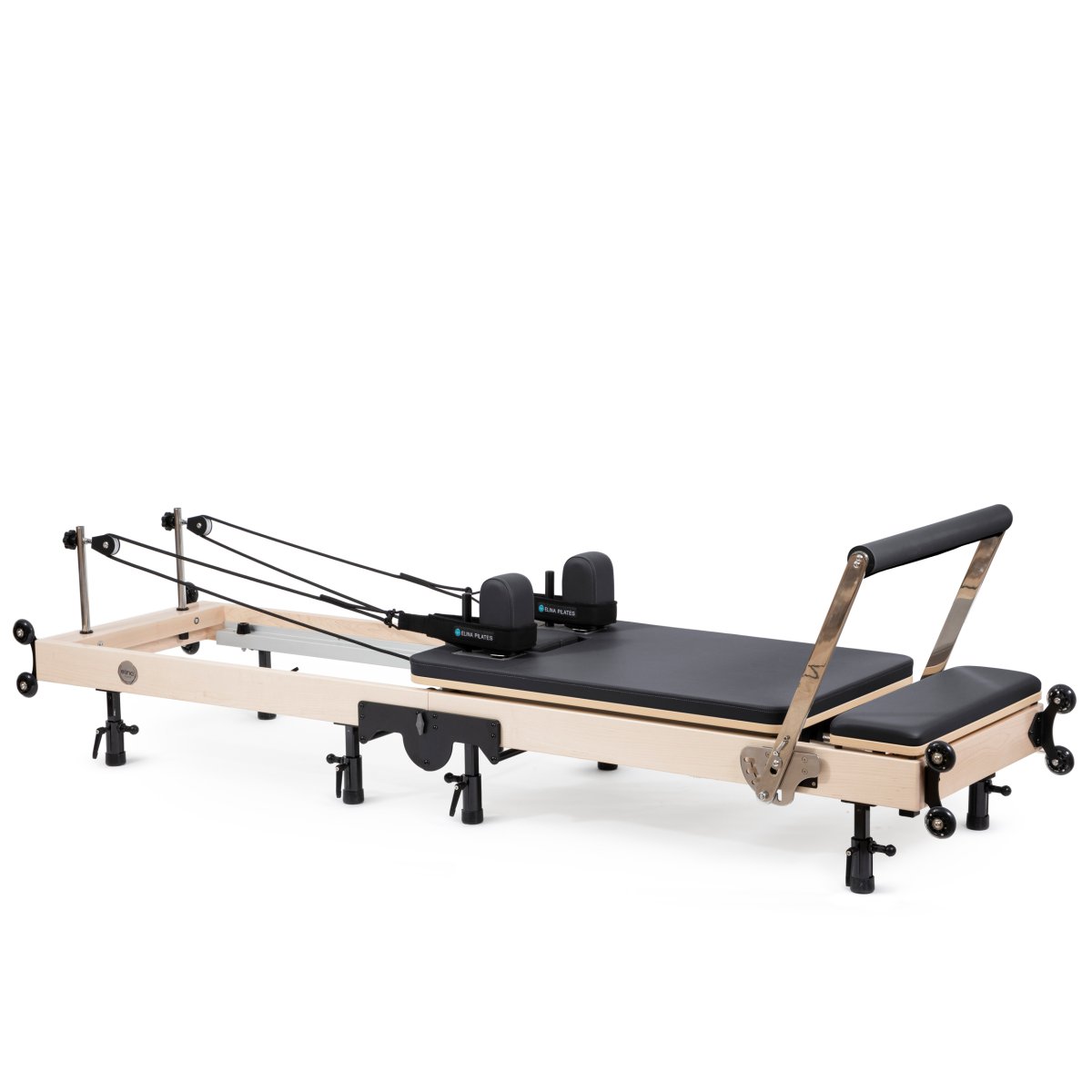

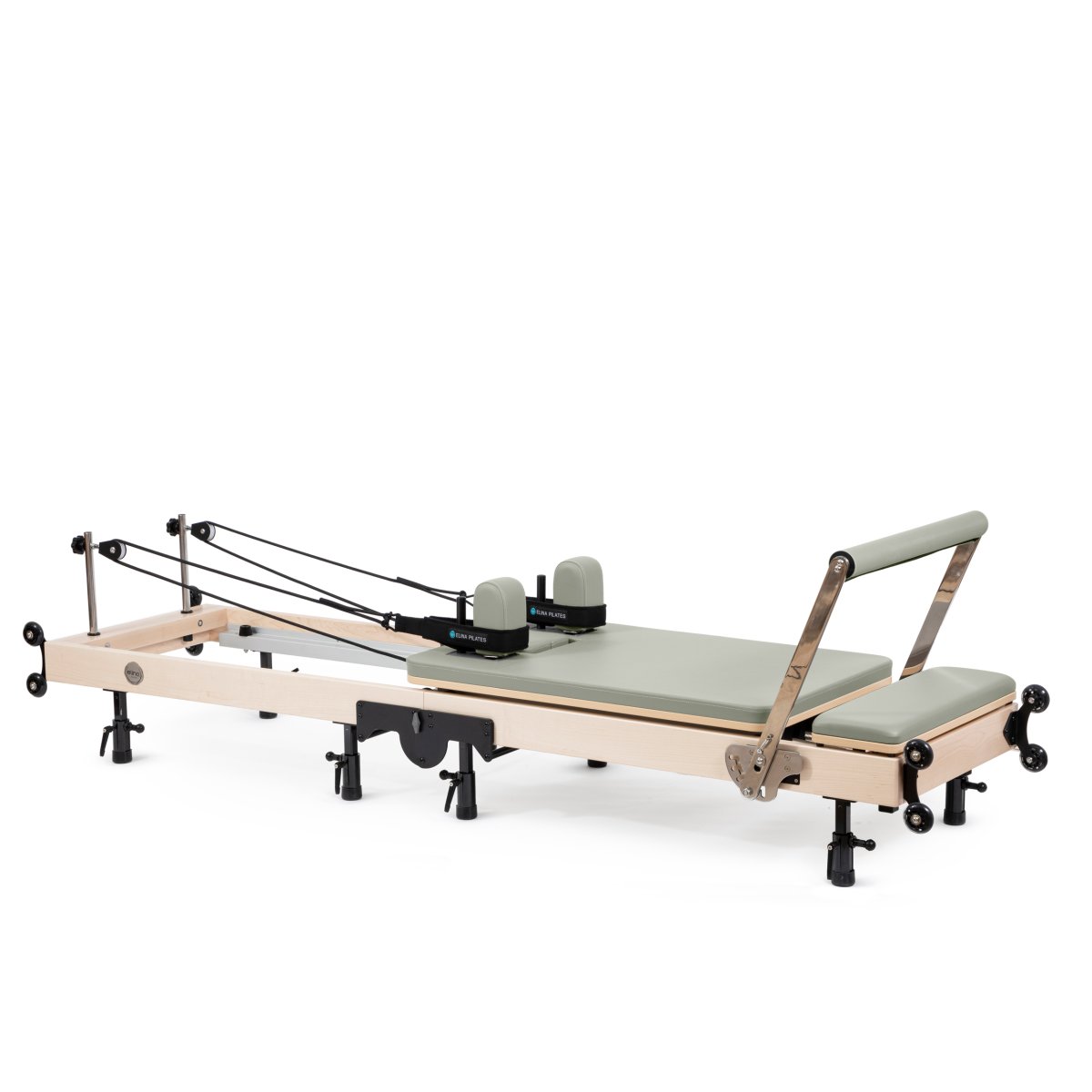

The Foldable Reformer for home use by Elina Pilates is the ideal choice for those looking for a high-quality reformer with a professional design, yet adapted for home use. Its compact, foldable, and elegant structure, made of American maple wood, ensures stability, firmness, and durability.

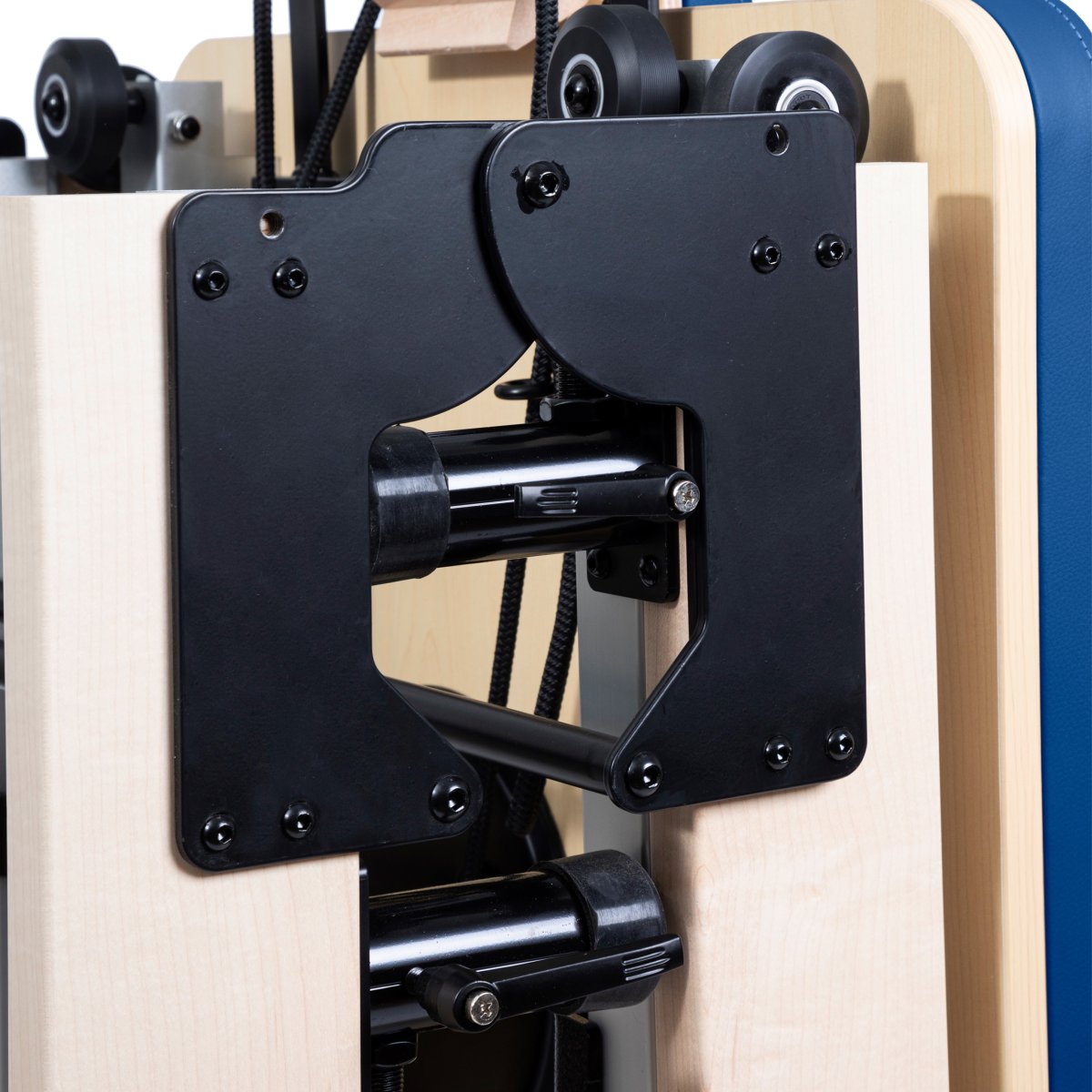

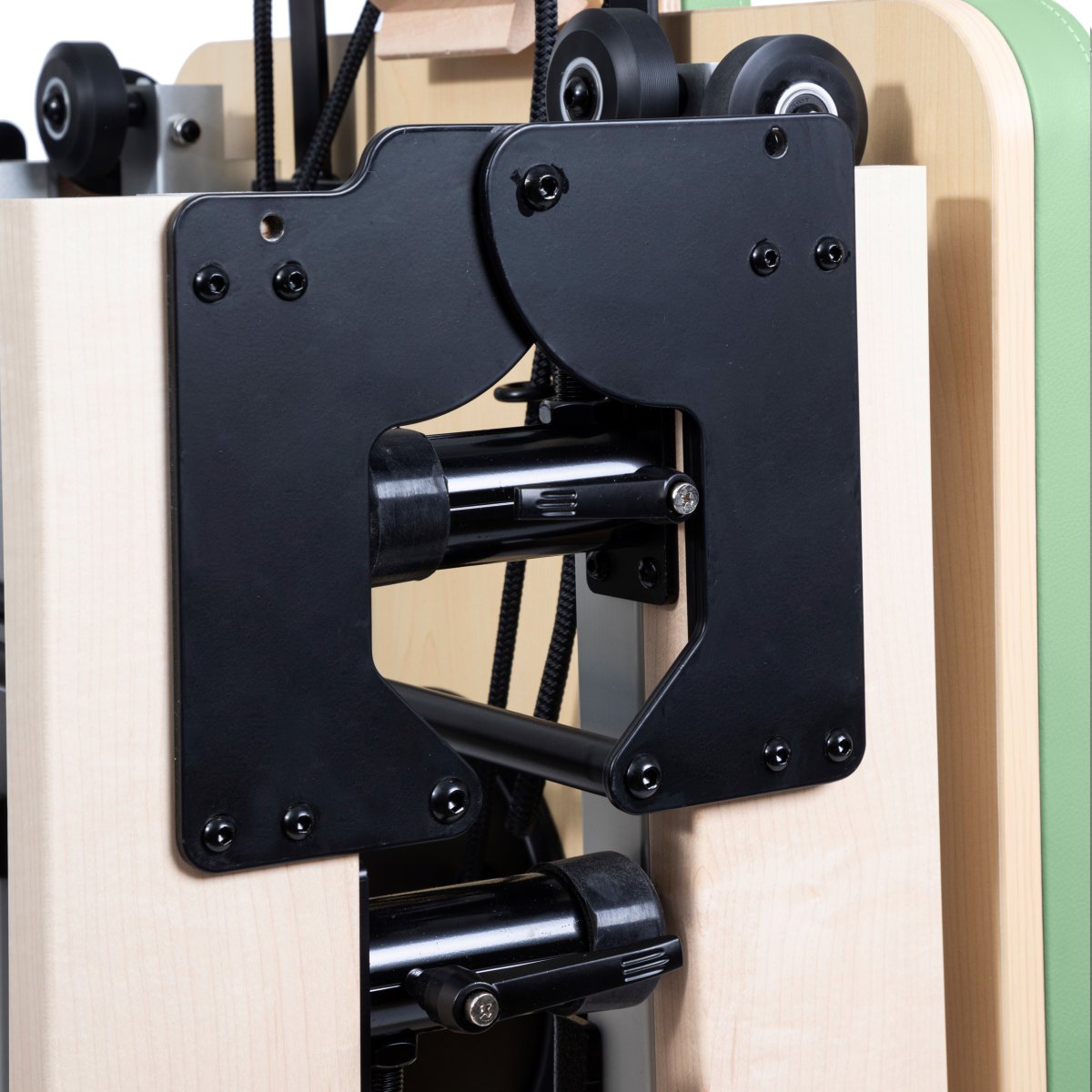

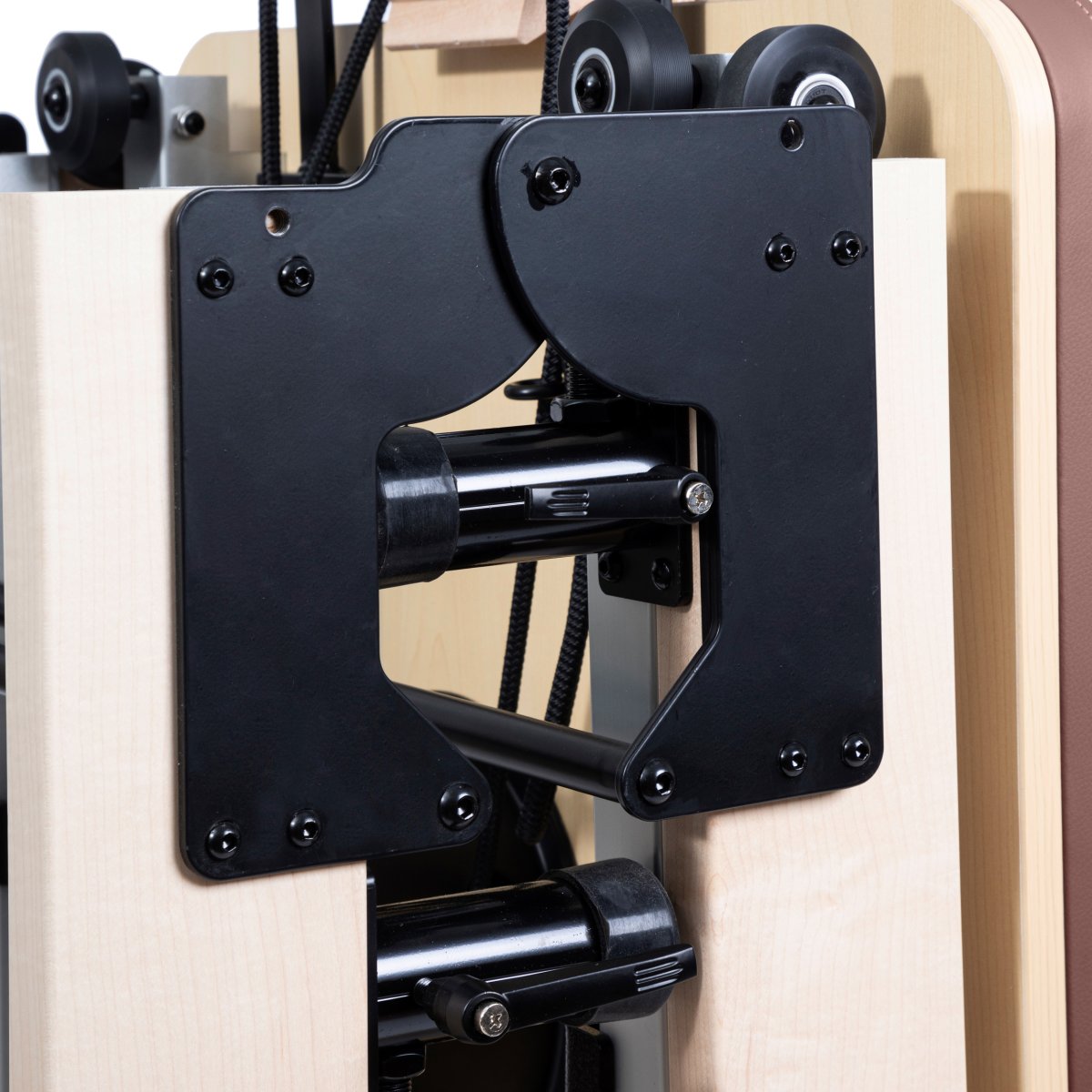

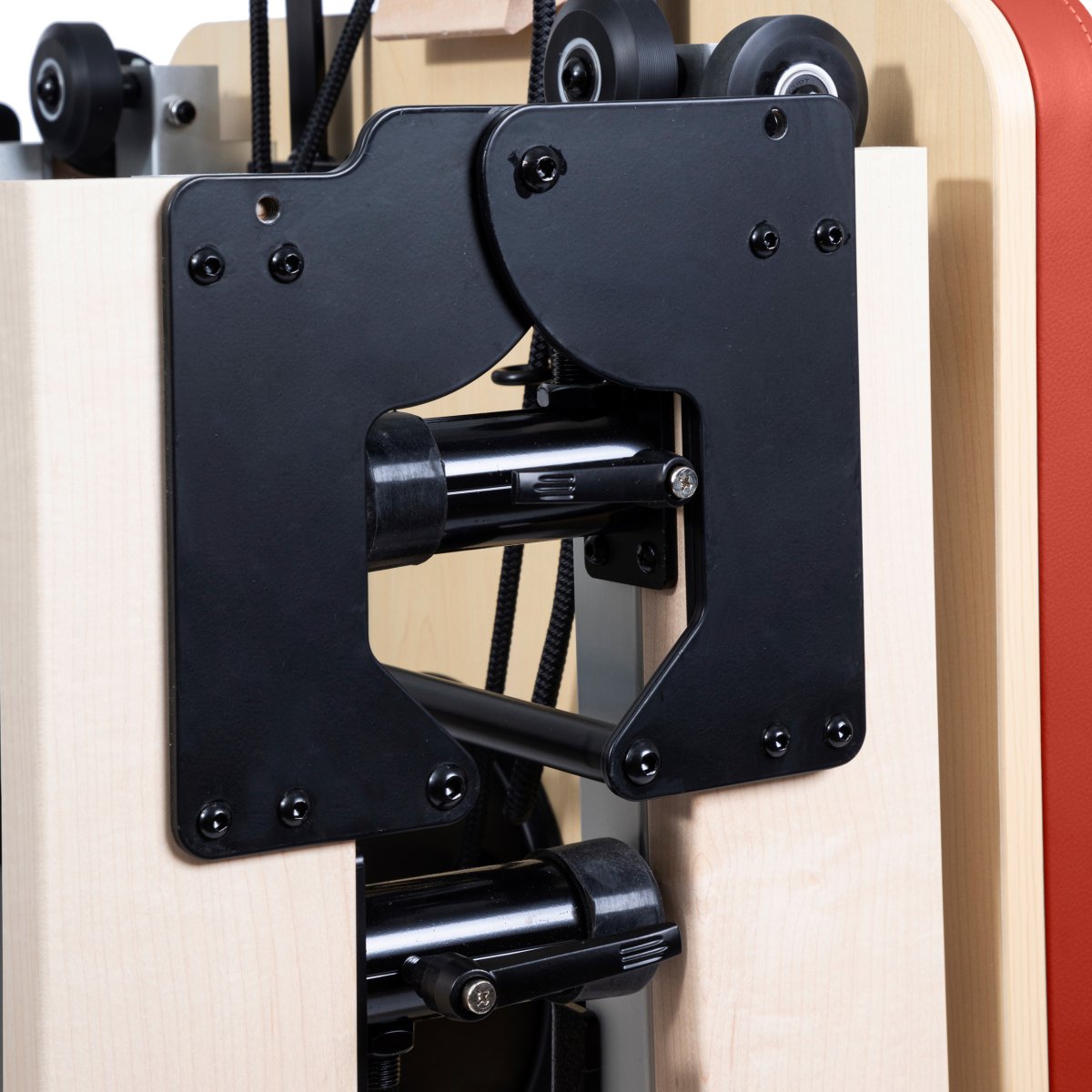

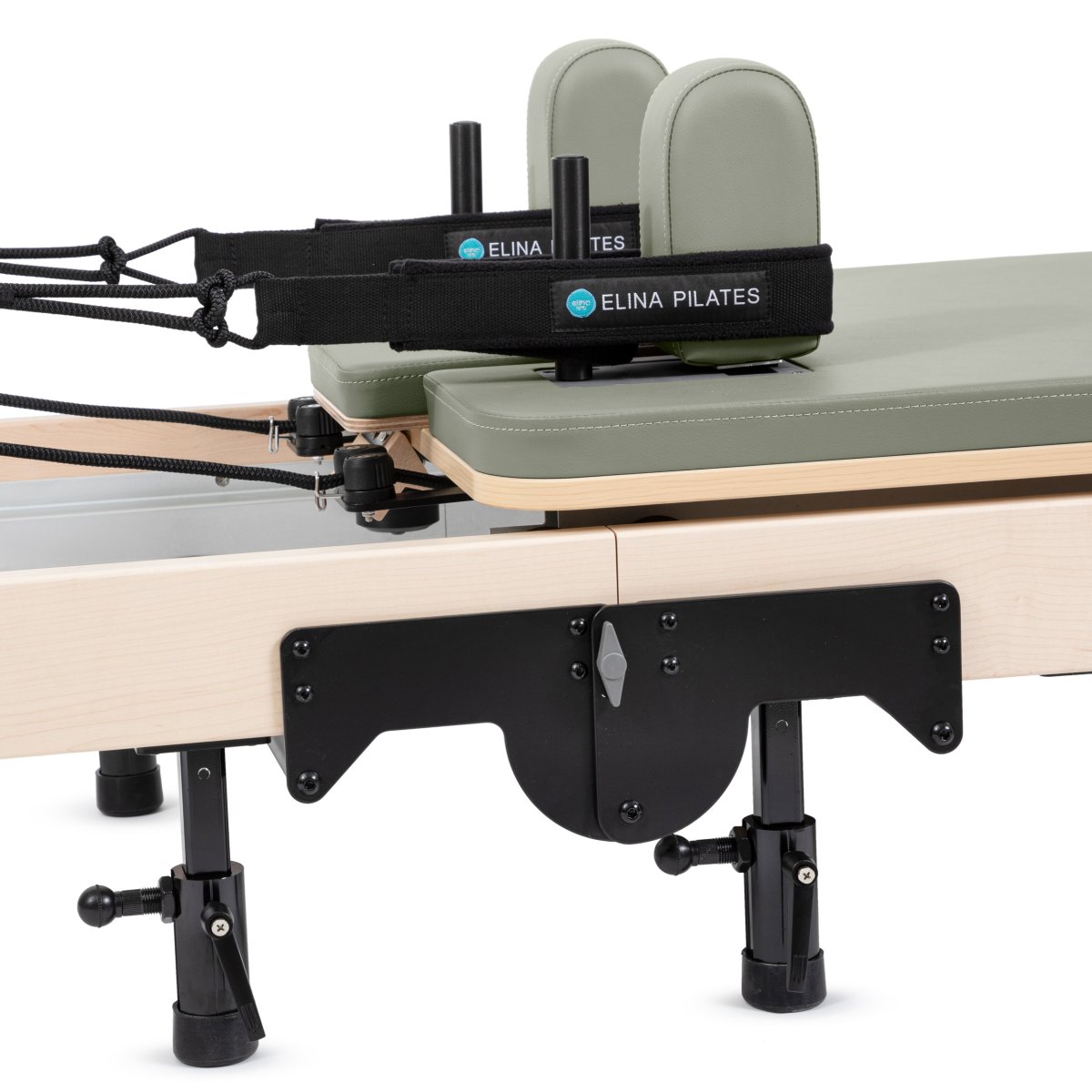

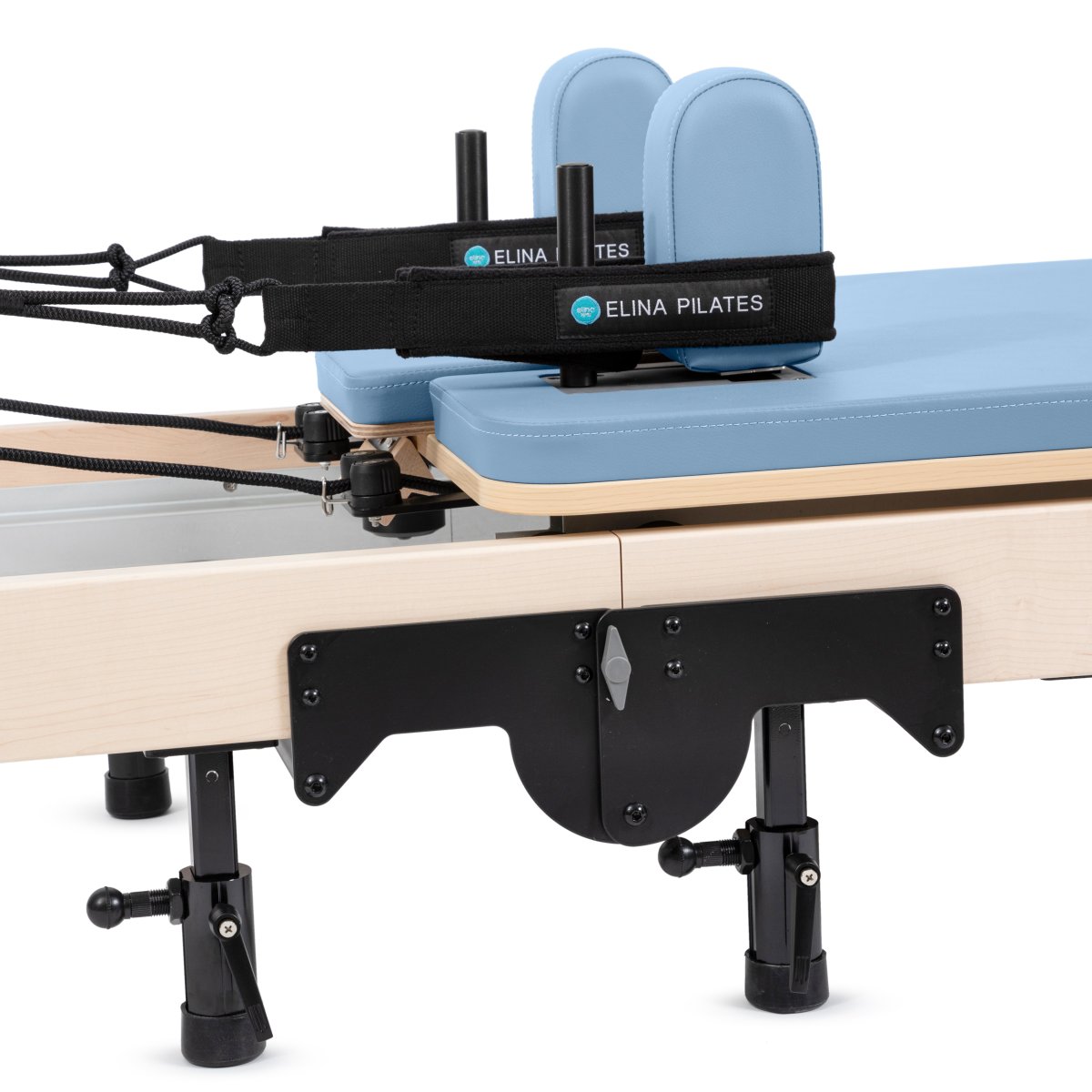

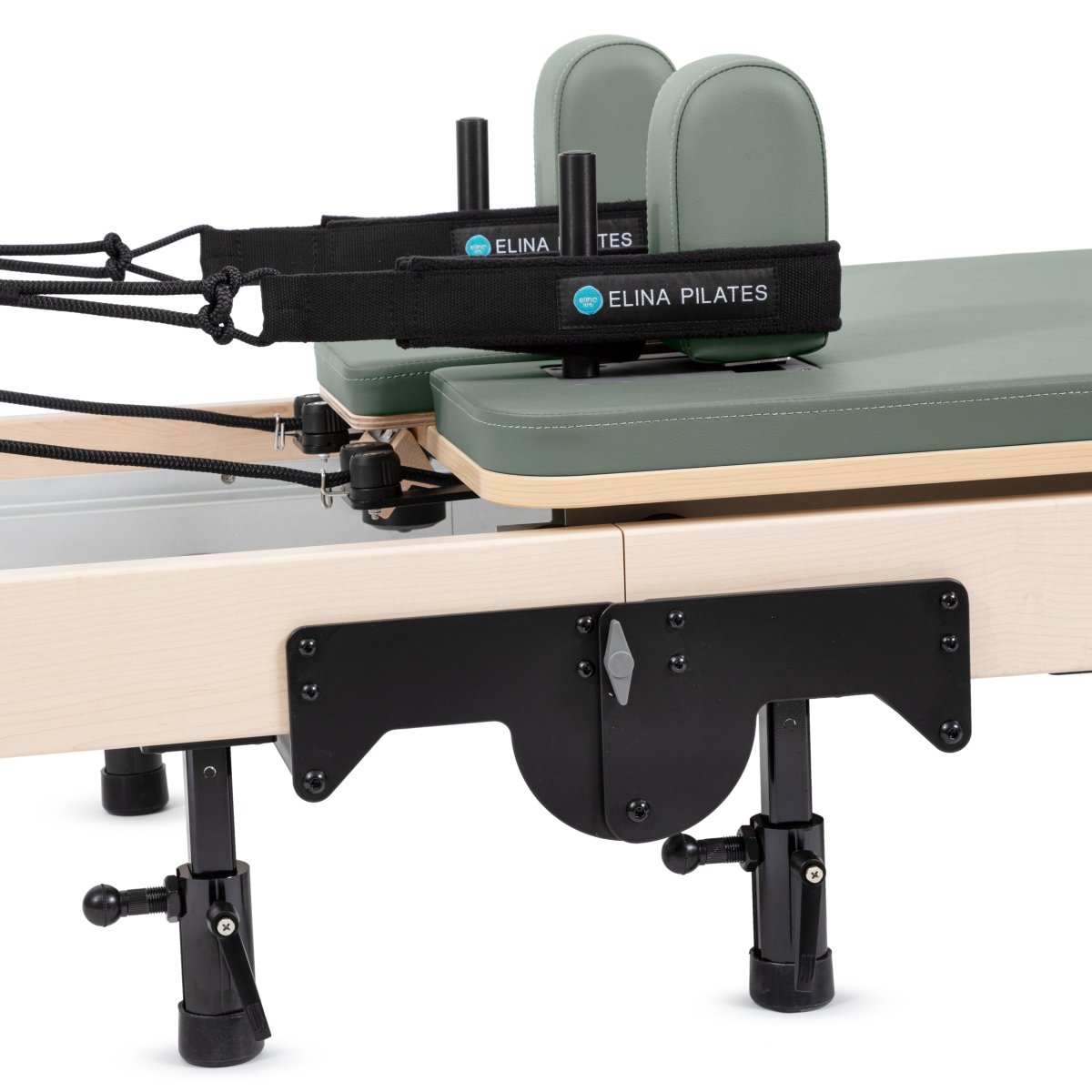

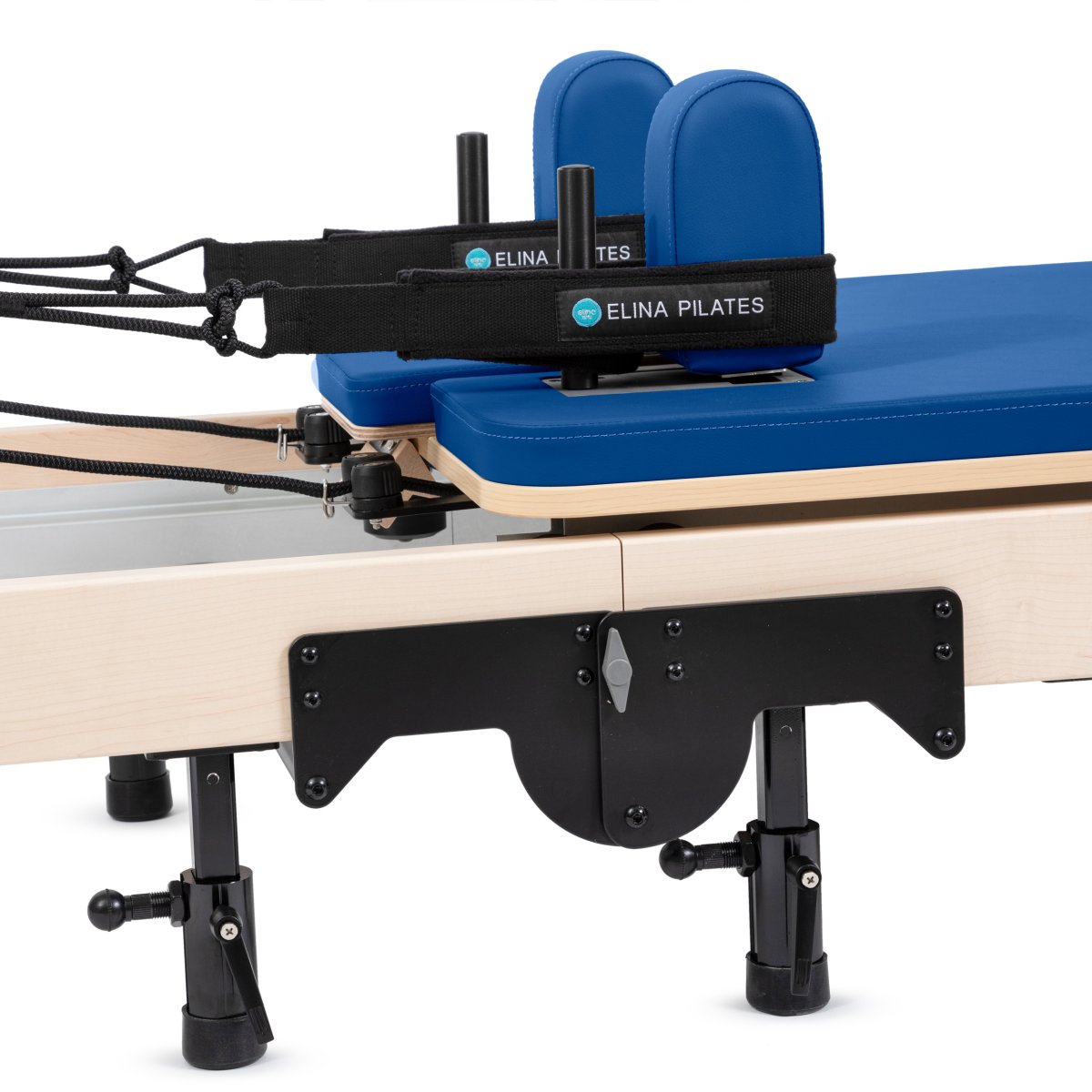

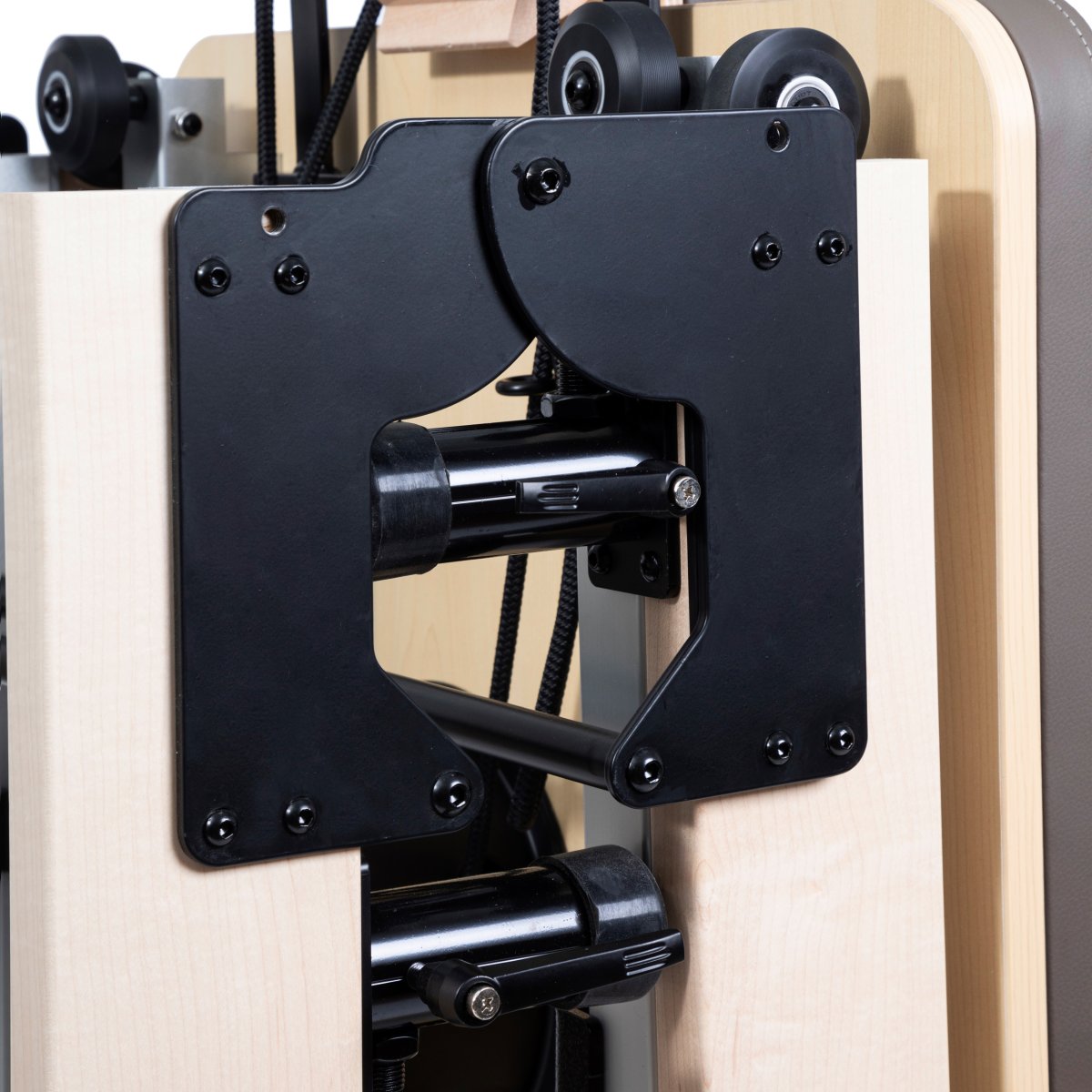

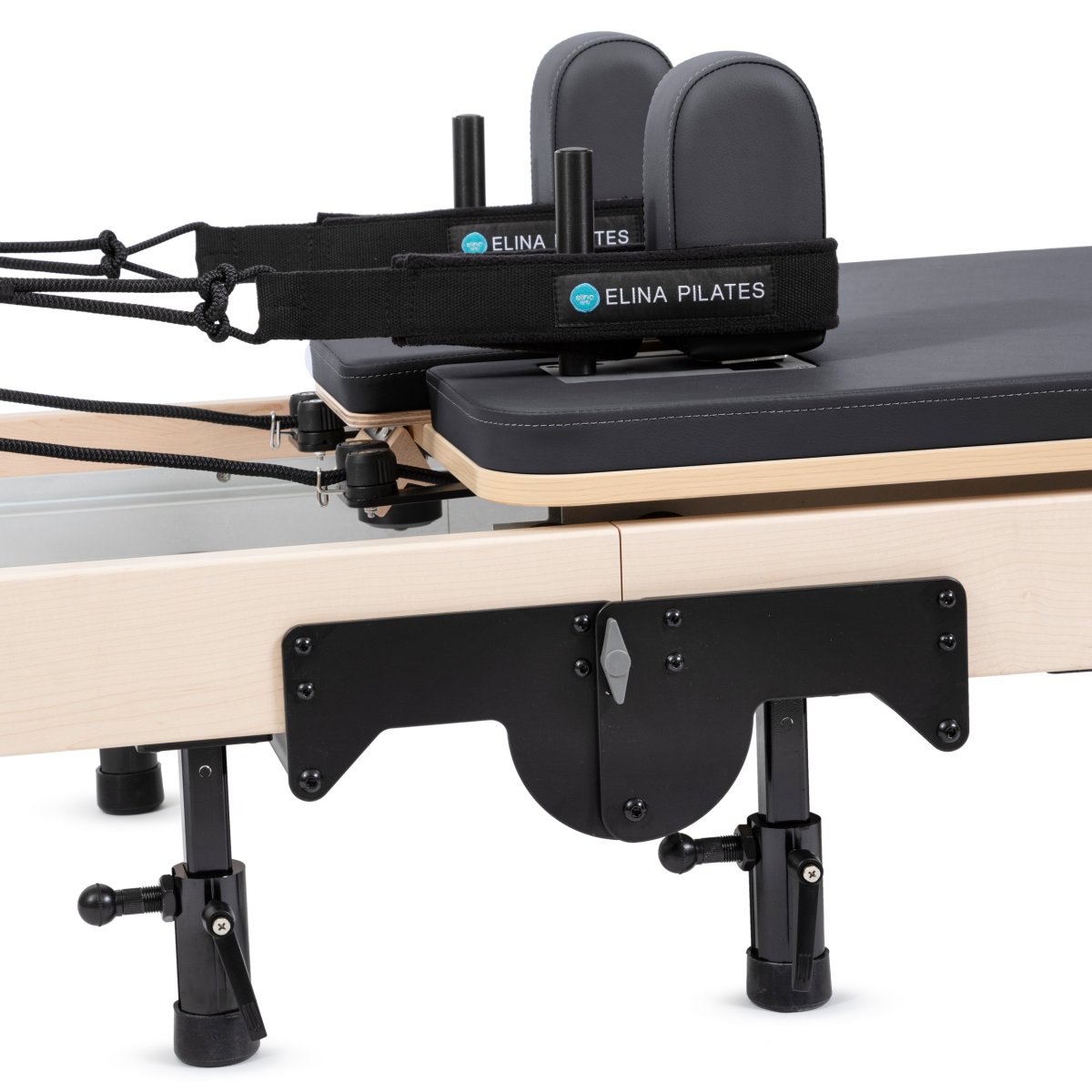

With our patented system, the two parts of the reformer align perfectly when unfolded, eliminating the uncomfortable gap often felt when the carriage moves. Unlike other models that create bothersome gaps over time, our mechanism guarantees smooth, continuous, and uninterrupted sliding. Tested by Elina Pilates' R&D department after being subjected to multiple high-intensity workouts.
It includes everything needed for a complete workout in the comfort of your home. This reformer allows for hundreds of exercises suited for all levels, from beginner to advanced.
At Elina Pilates, we always prioritize quality, which is why this reformer is made from American maple wood, ideal for providing the machine with the necessary firmness, stability, and durability.

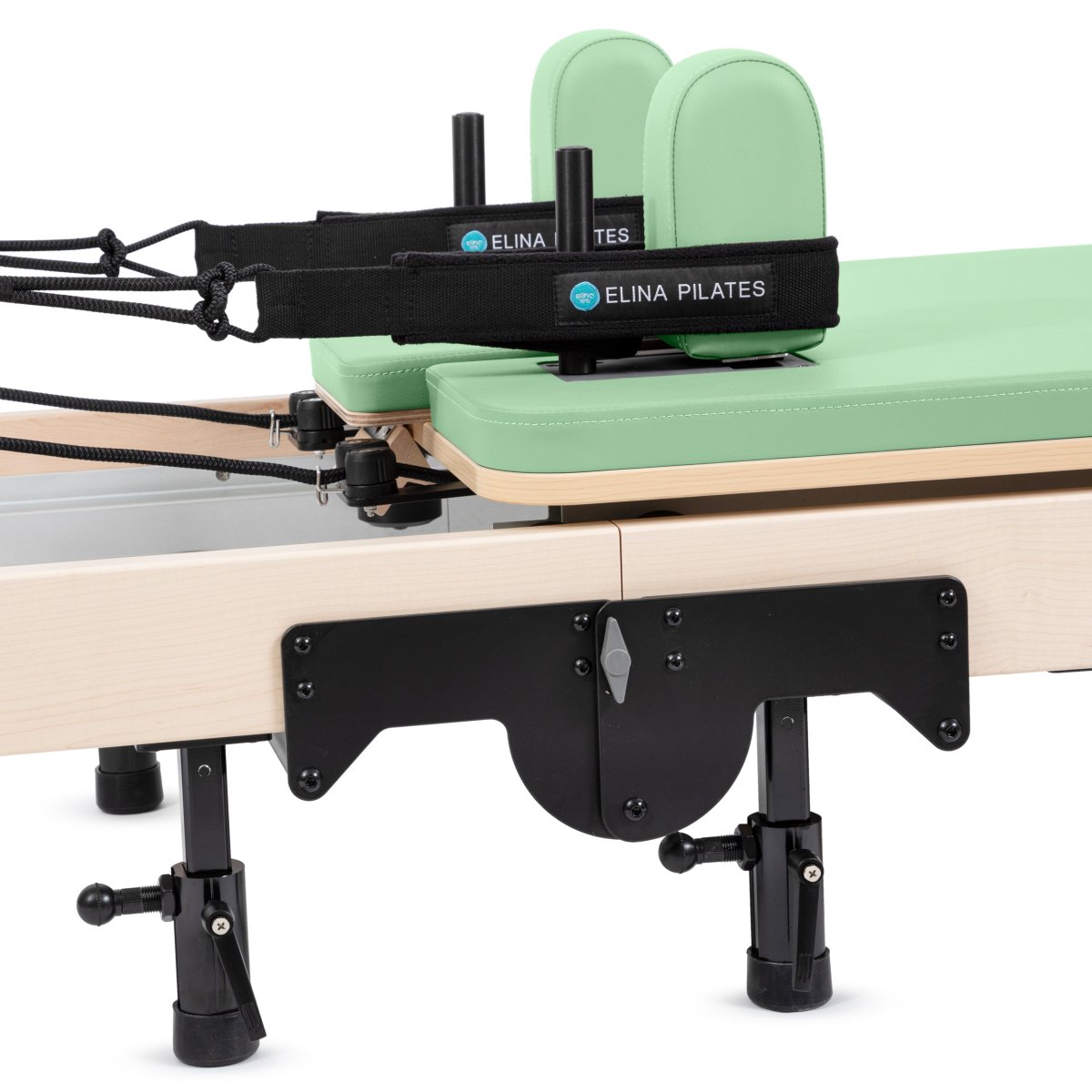

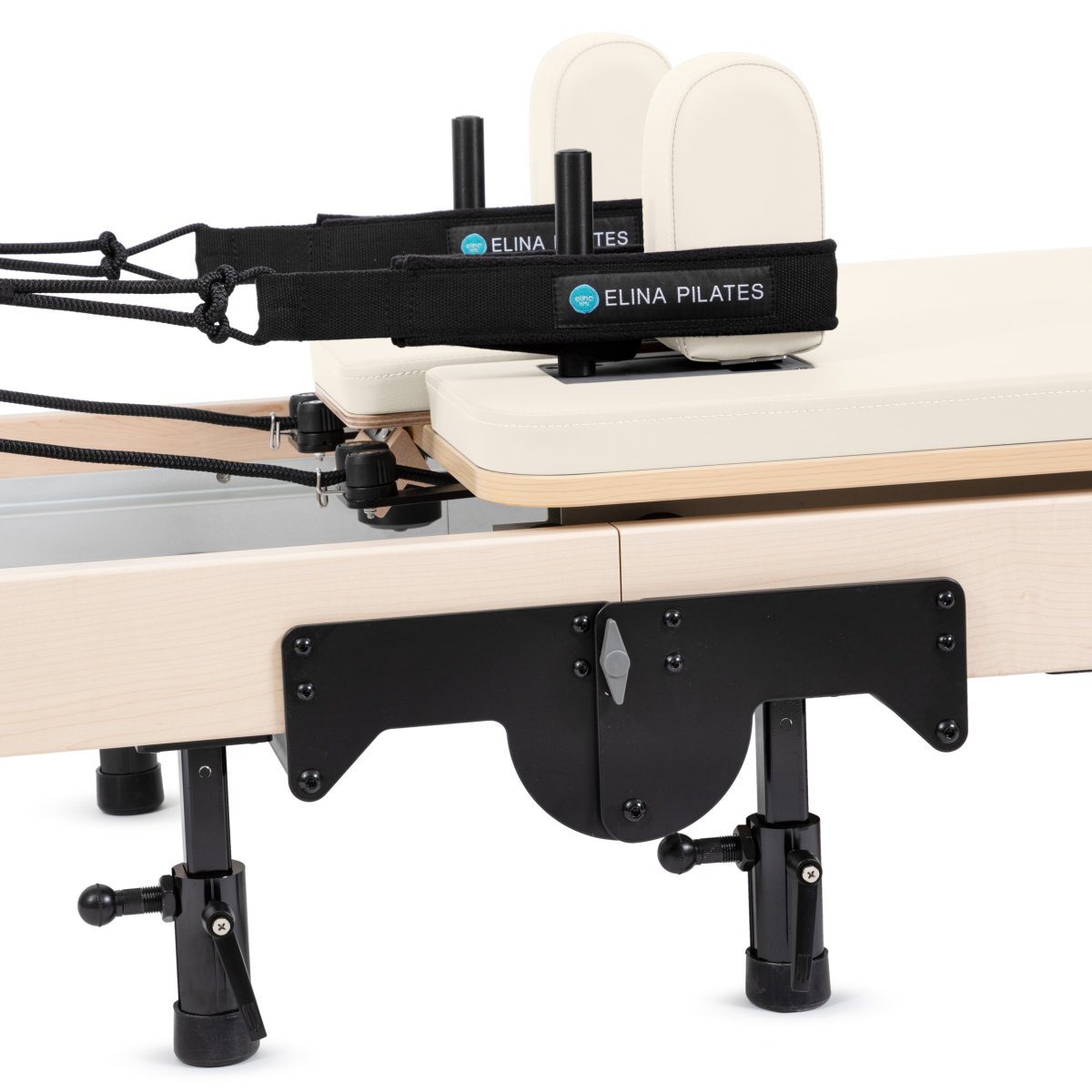

To better meet the needs of each user, the Elina Pilates foldable wooden reformer offers two bed height options thanks to its adjustable legs (28 cm with folded legs and 35.5 cm with extended legs).

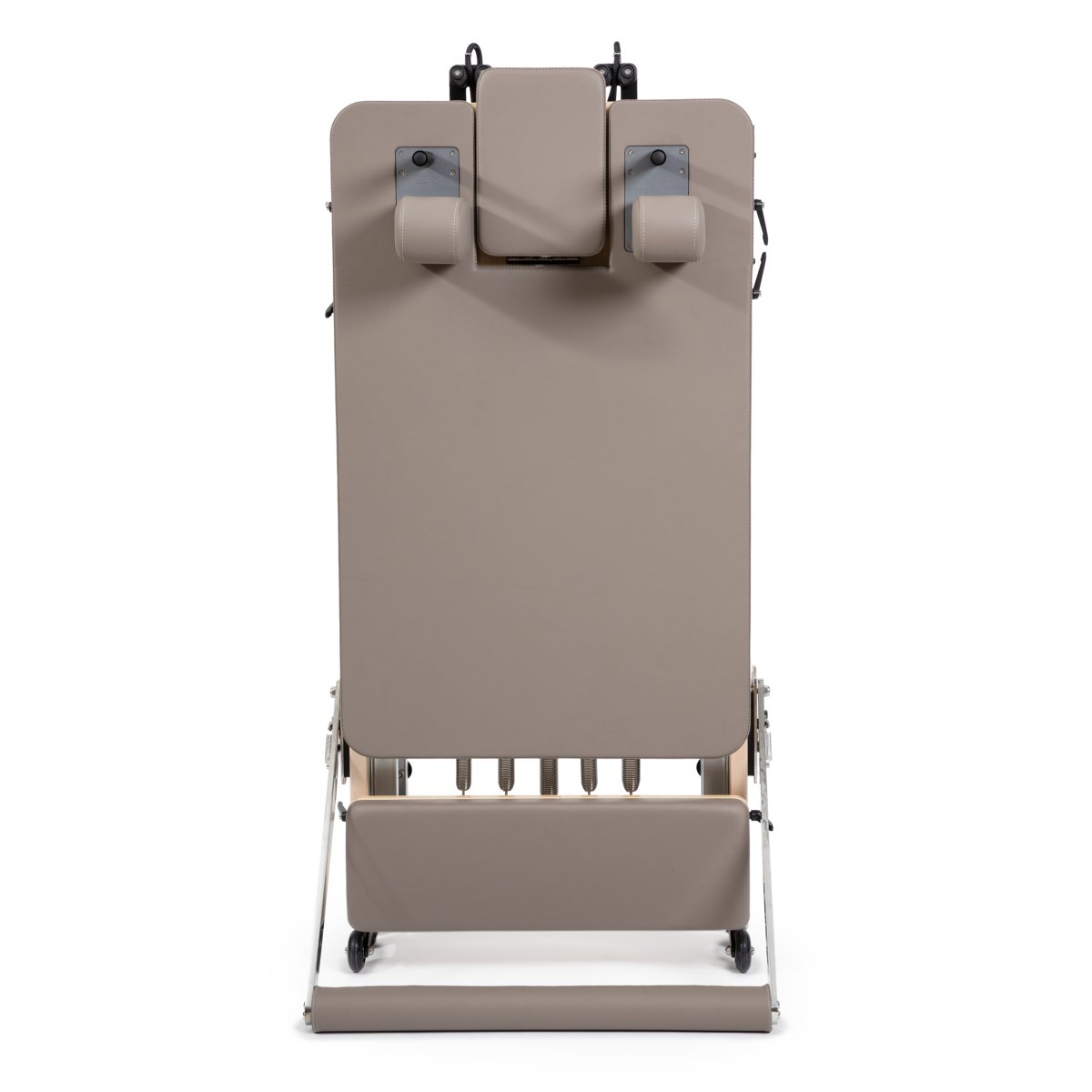

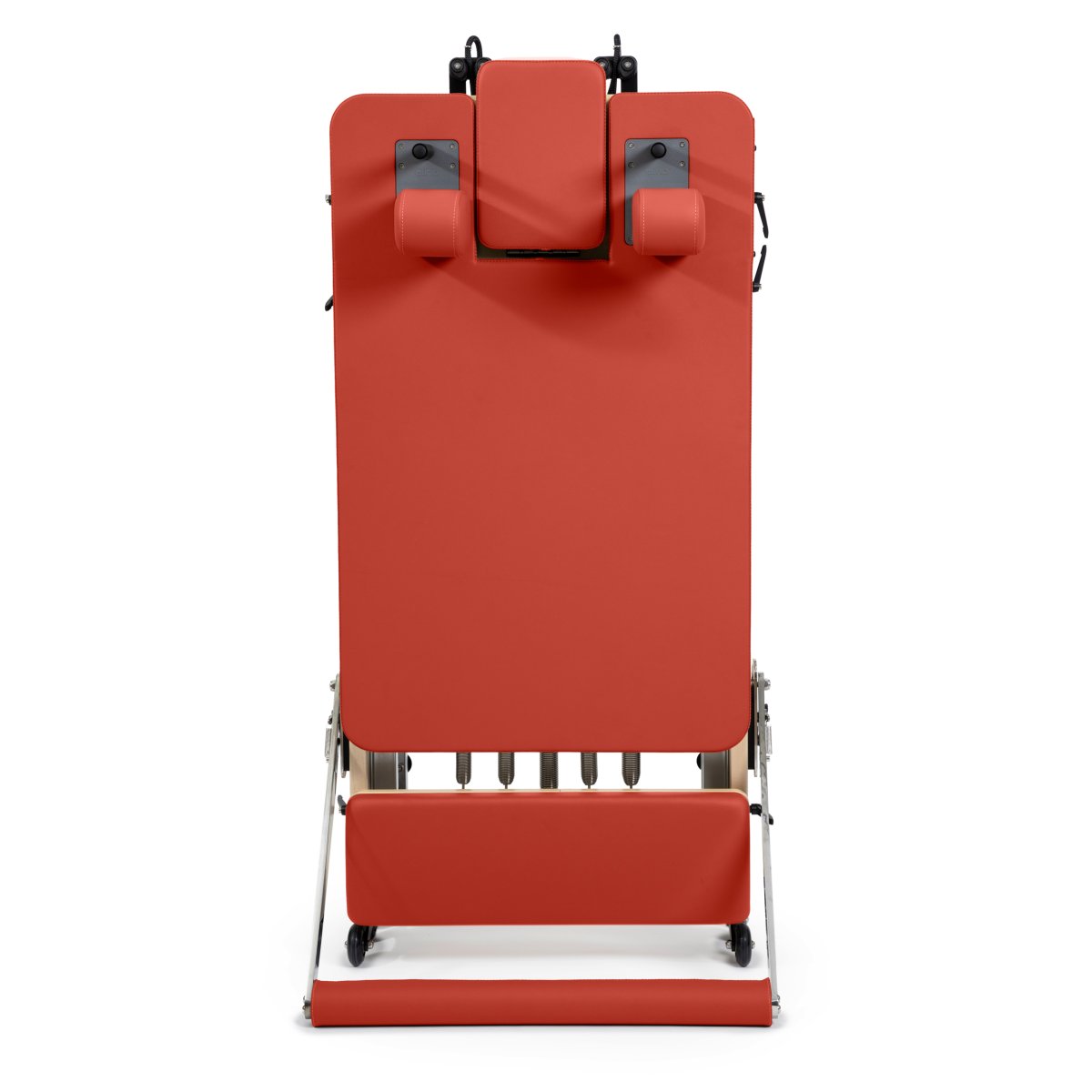

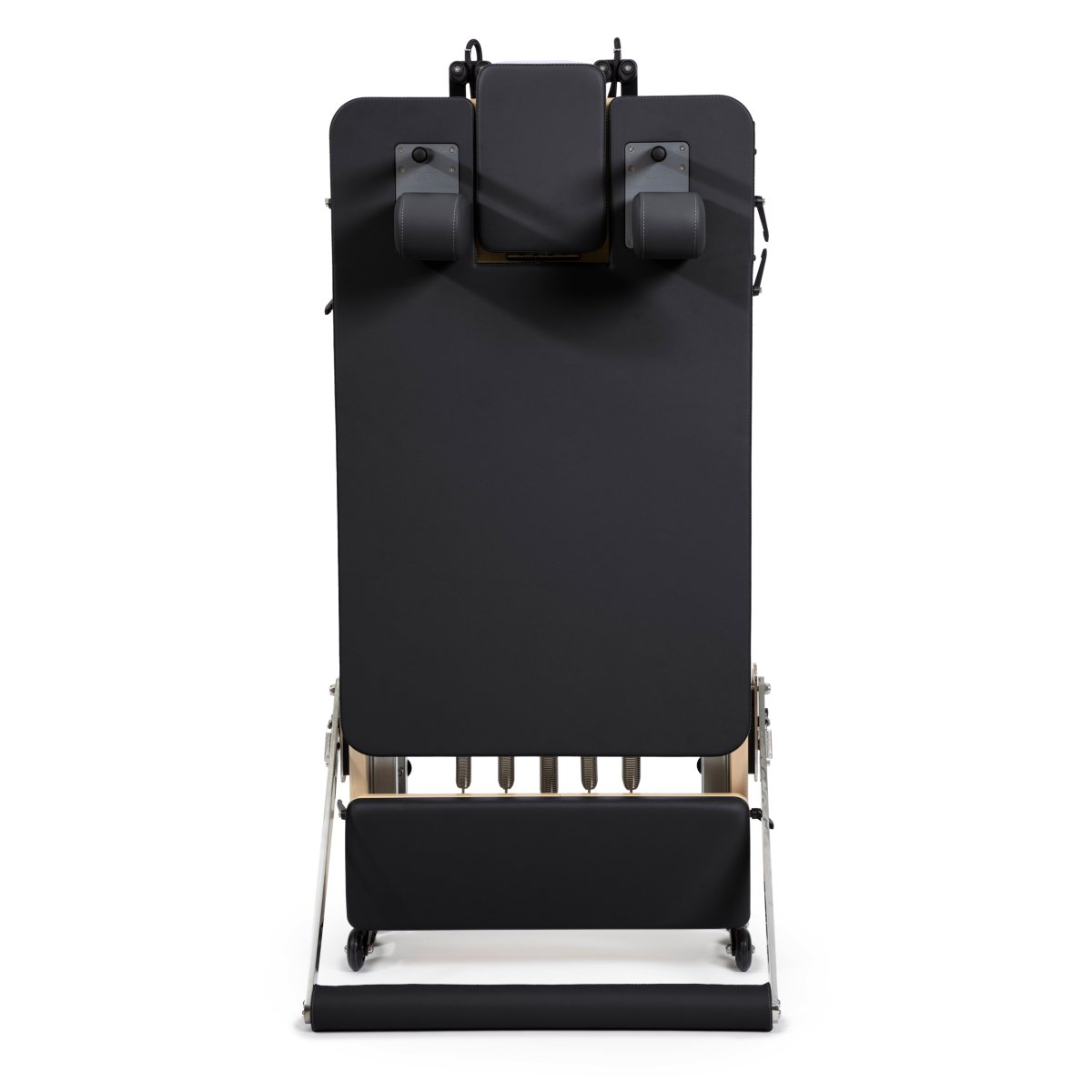

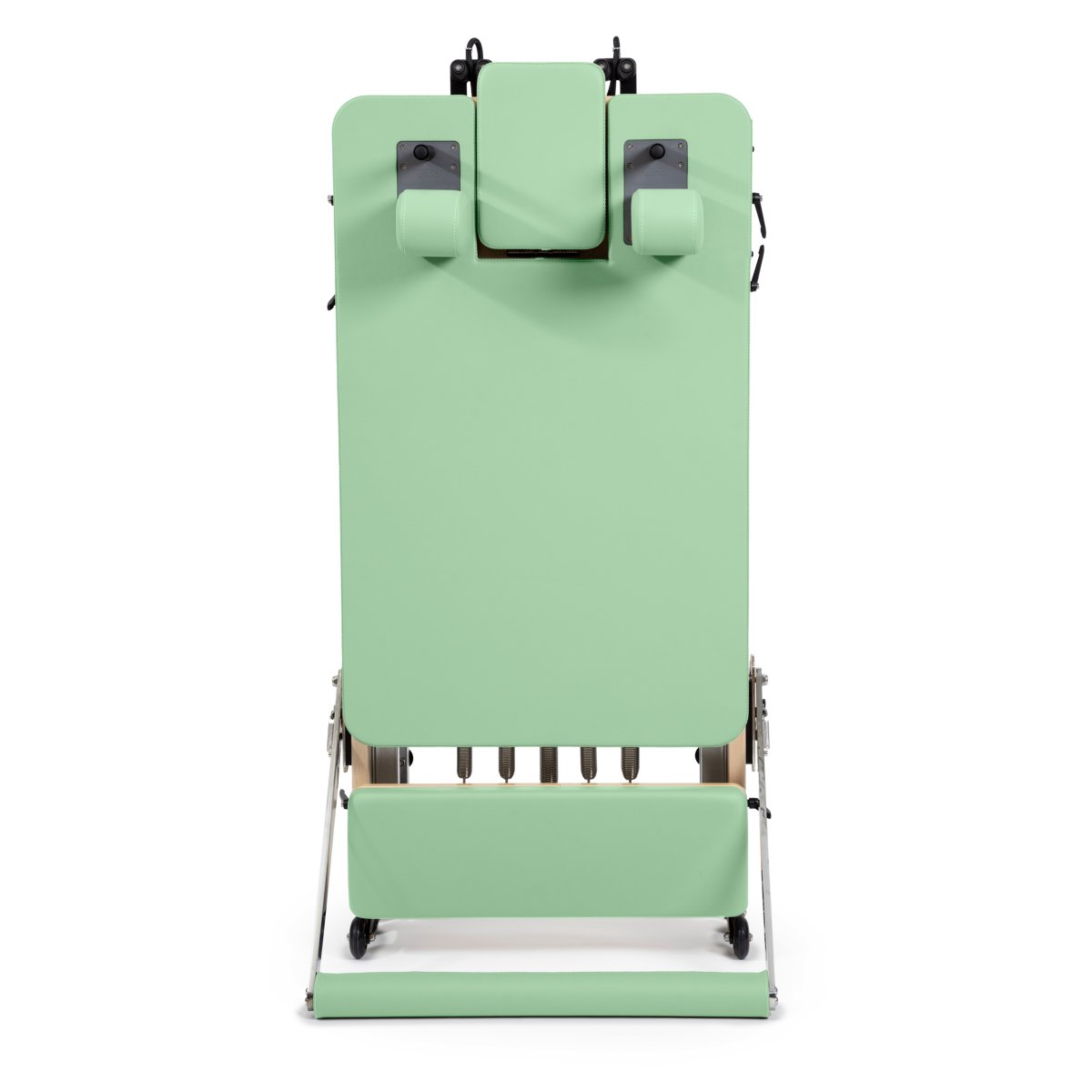

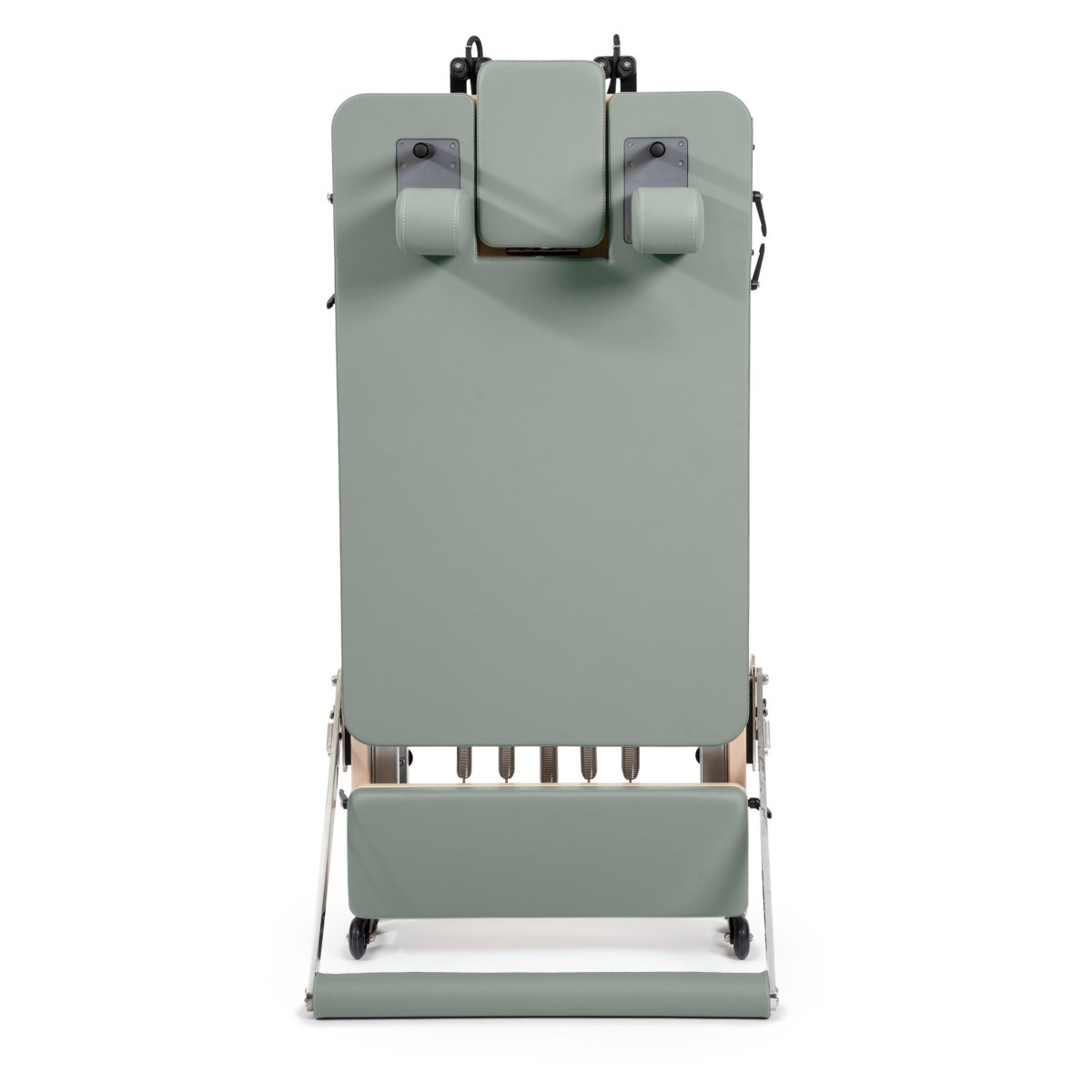

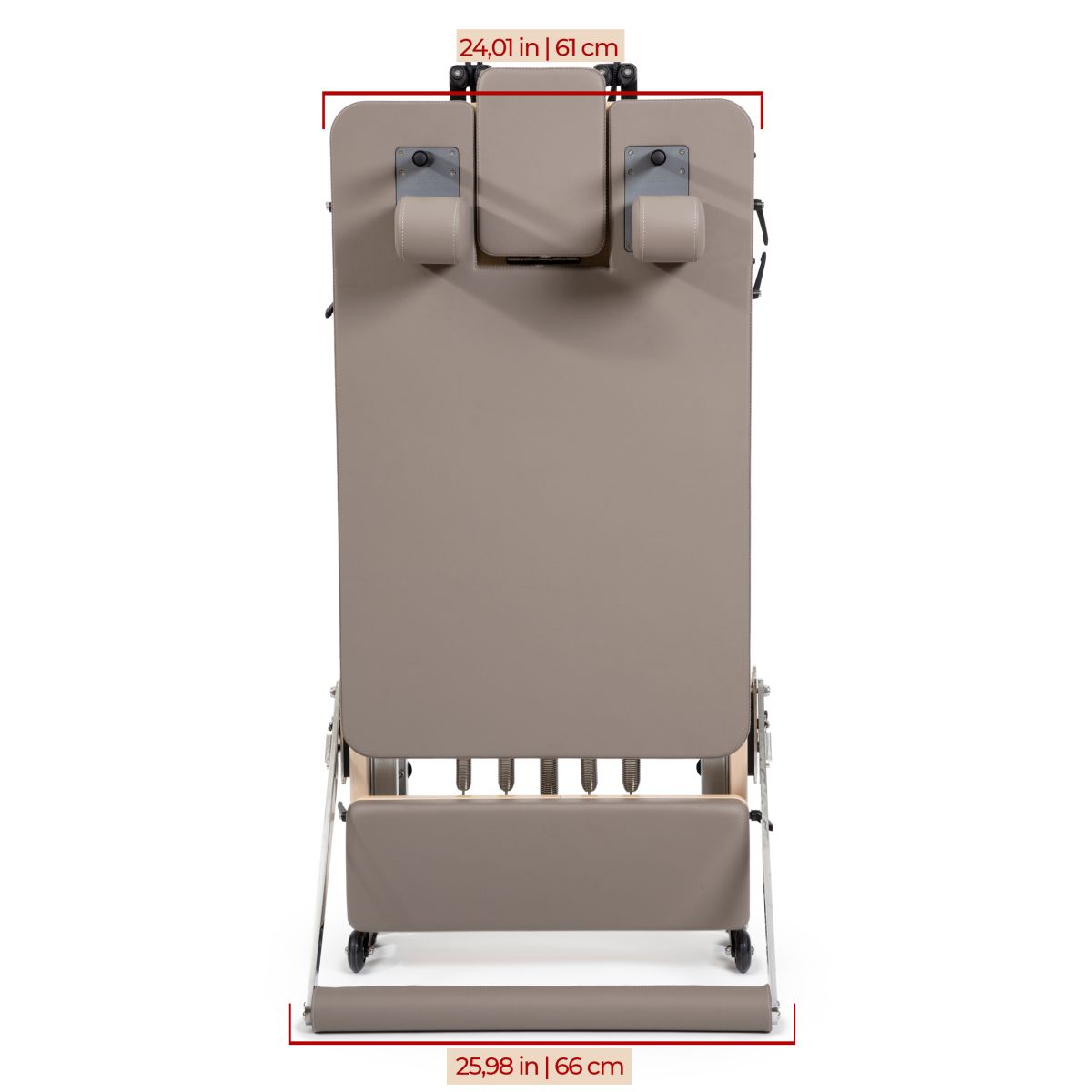

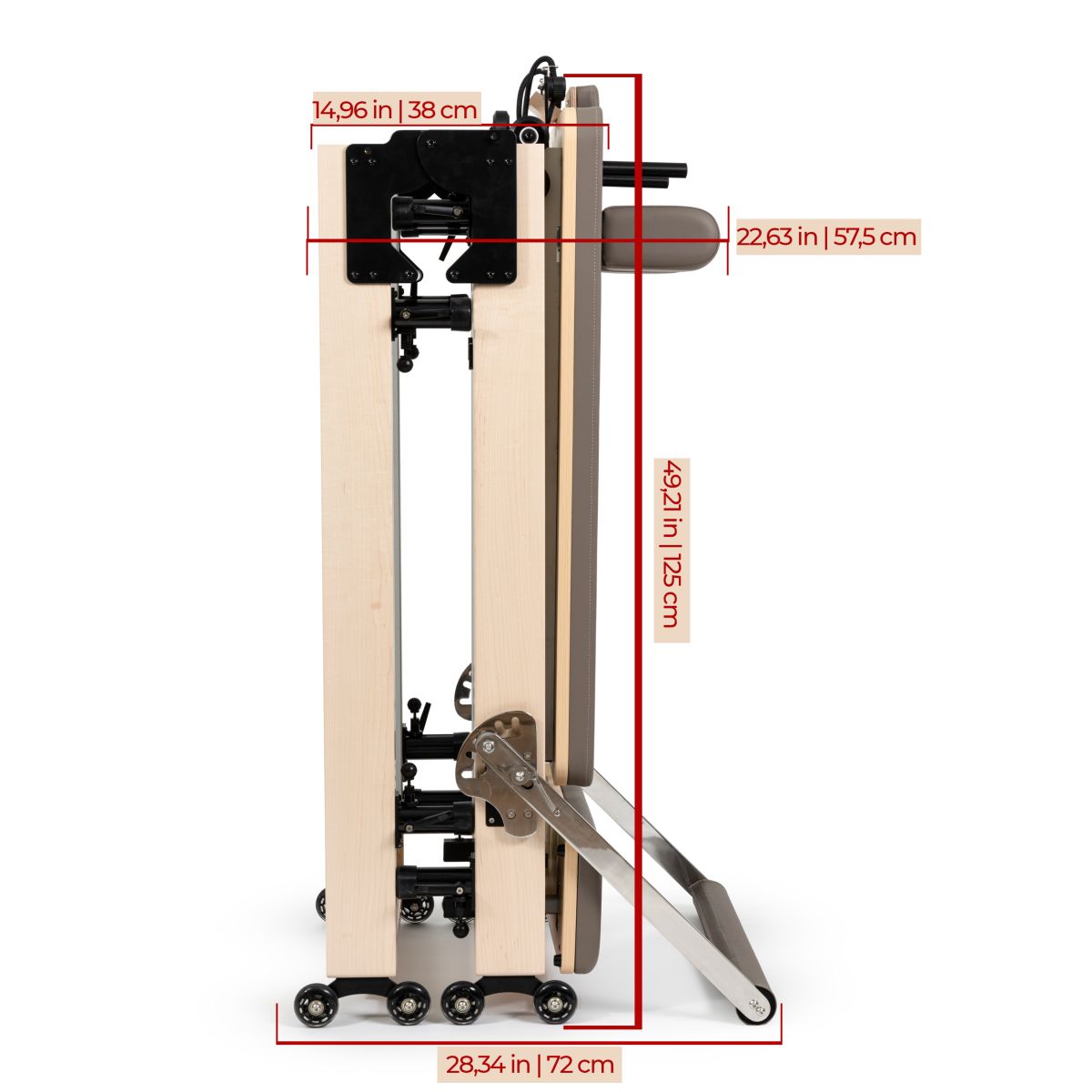

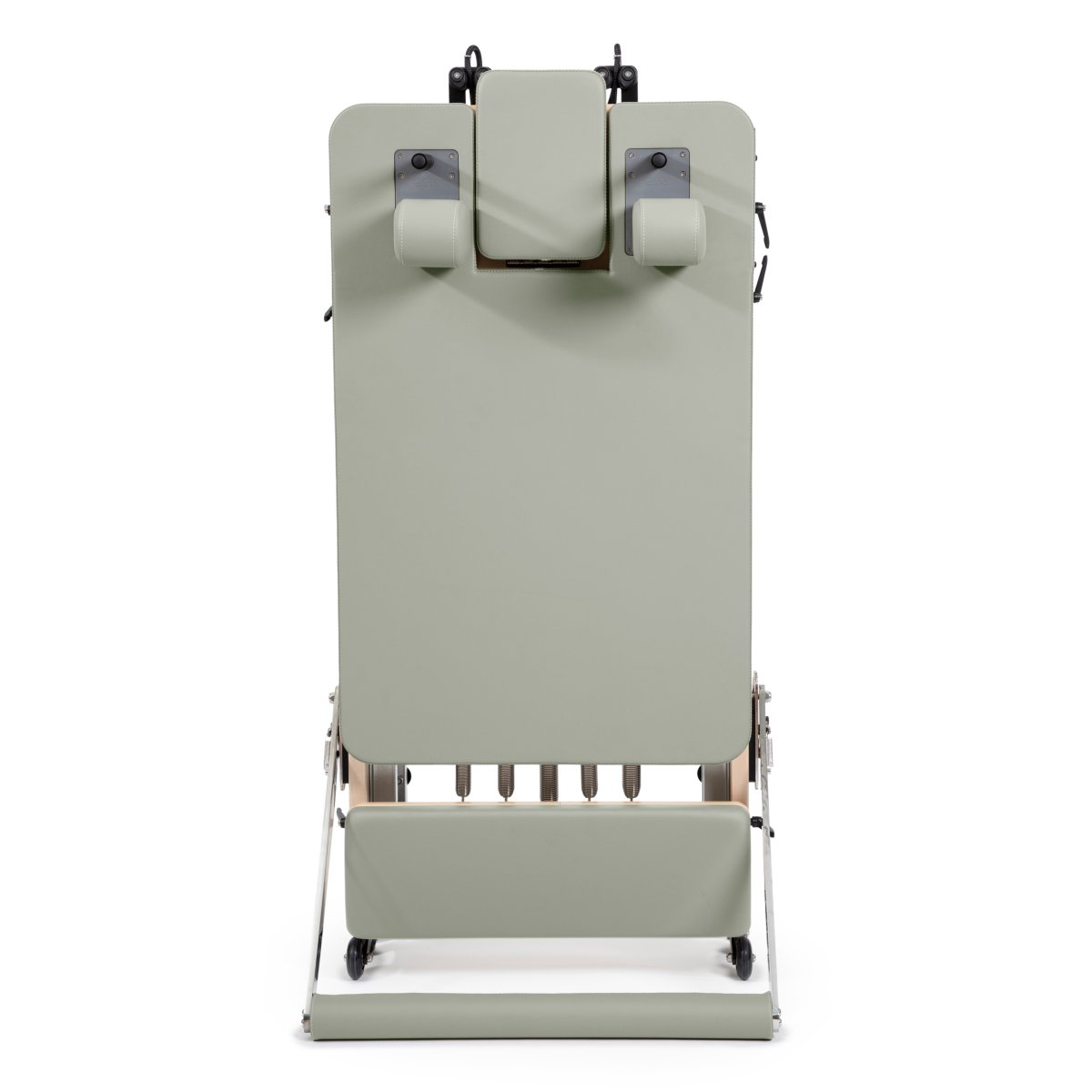

Fold Reformer Dimensions: 42 cm width (without foot bar) X 130 cm height X 66 cm depth
73 cm width (with foot bar)
Features
Structure
- Made from light-toned American maple wood.
- Waterproof varnish that protects the wood from wear and tear.
Foot Bar
- Quick release system with six adjustable positions.
- Padded bar to prevent slipping of feet and hands.
Carriage
- Ultra-quiet carriage thanks to its eight special polyurethane wheels and high-precision bearings.

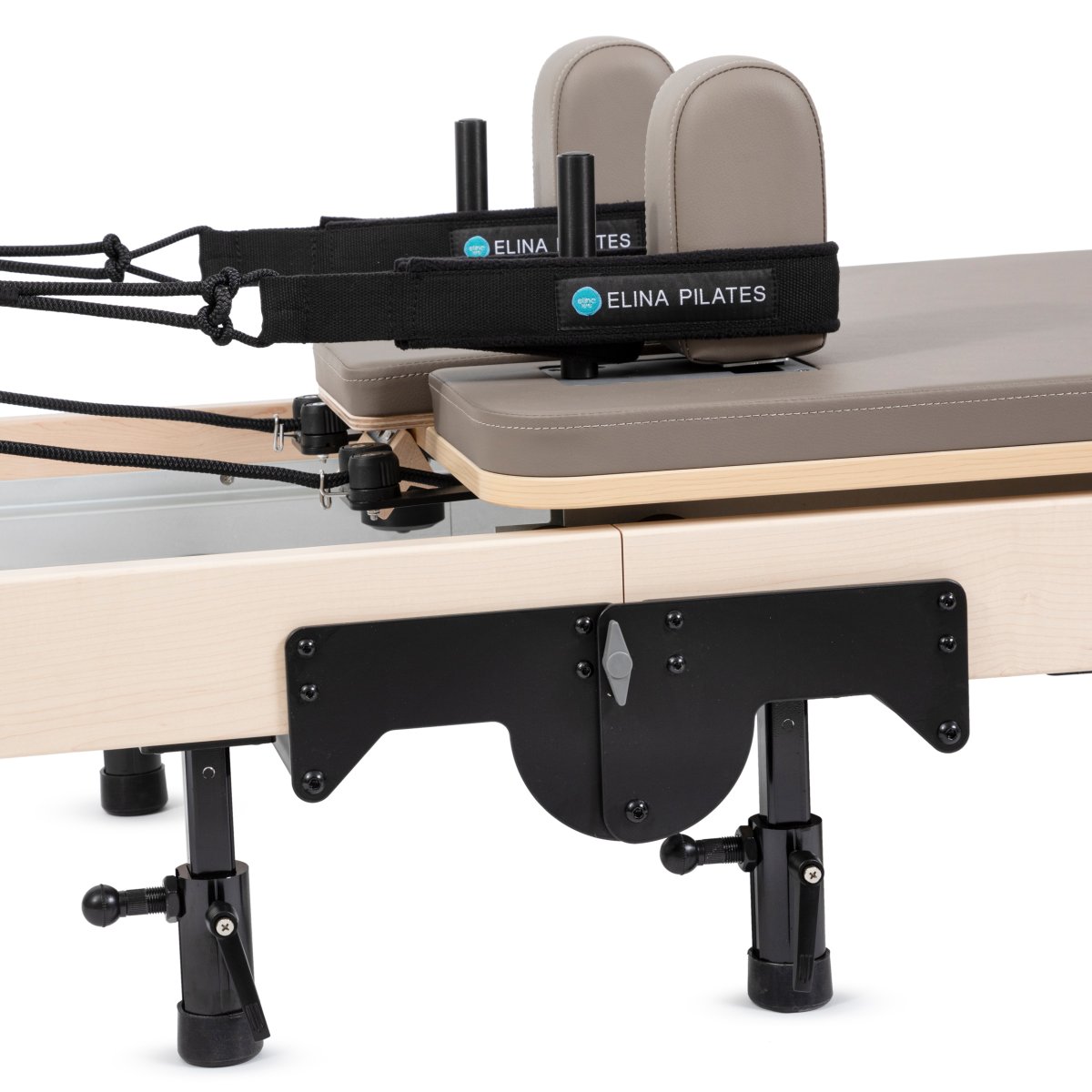

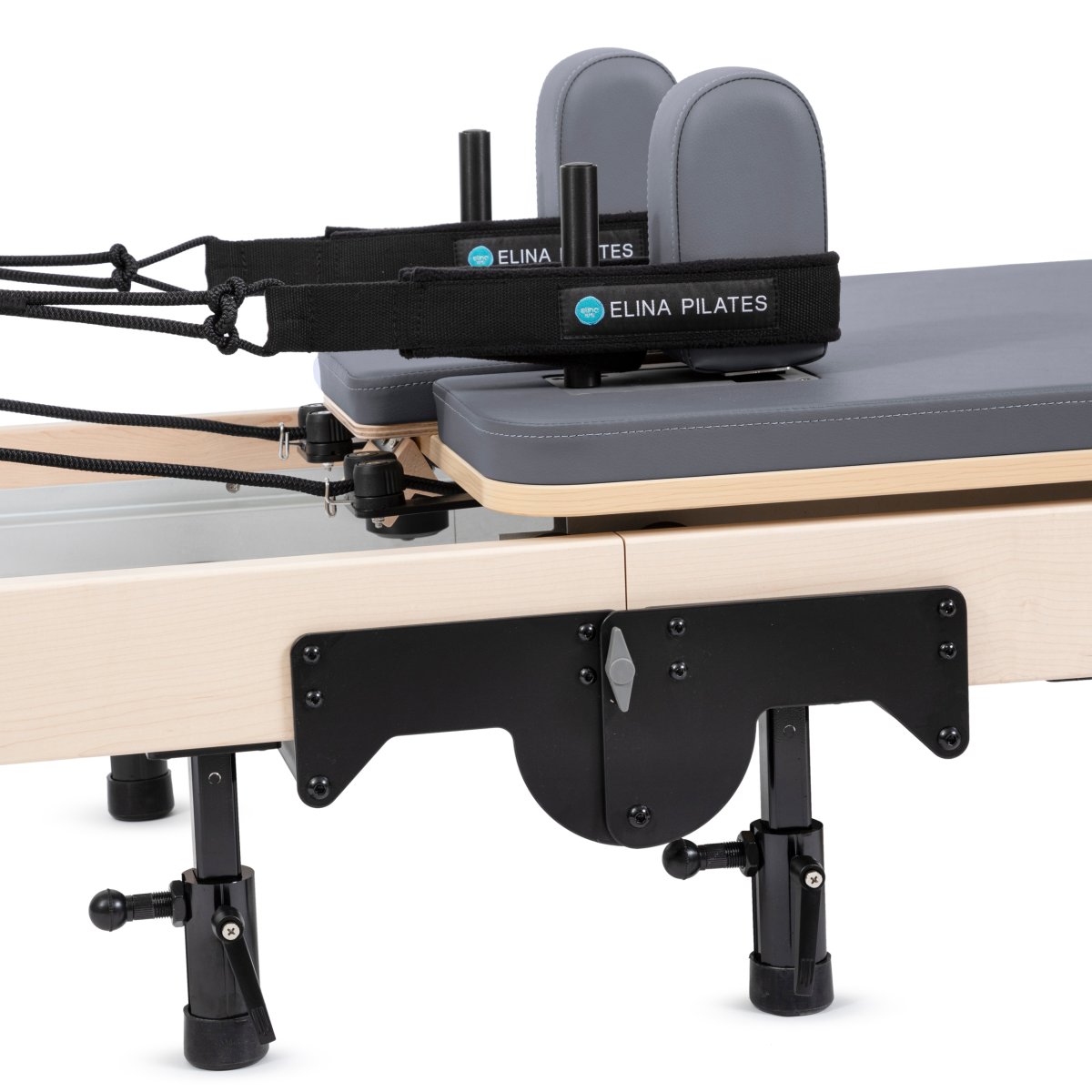

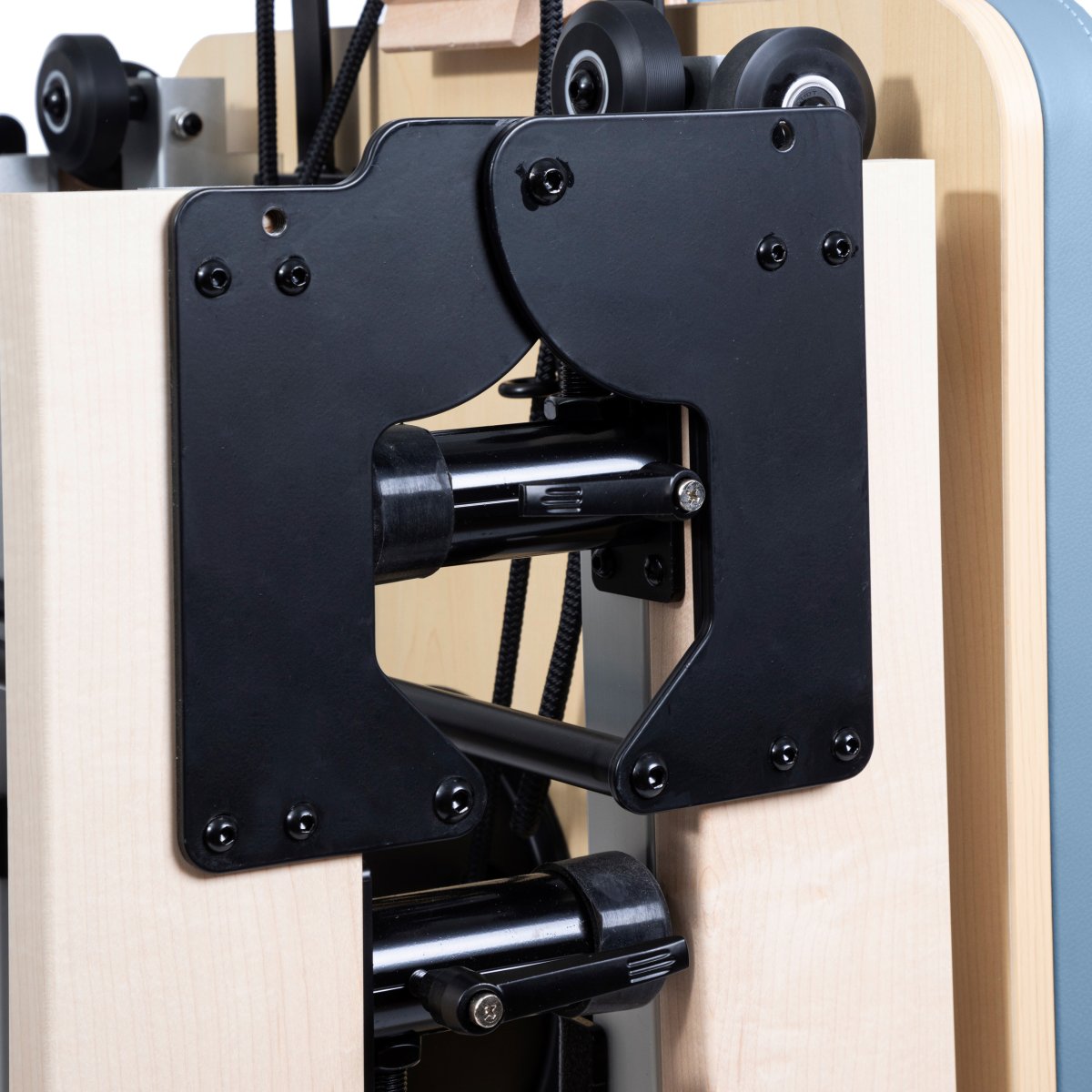

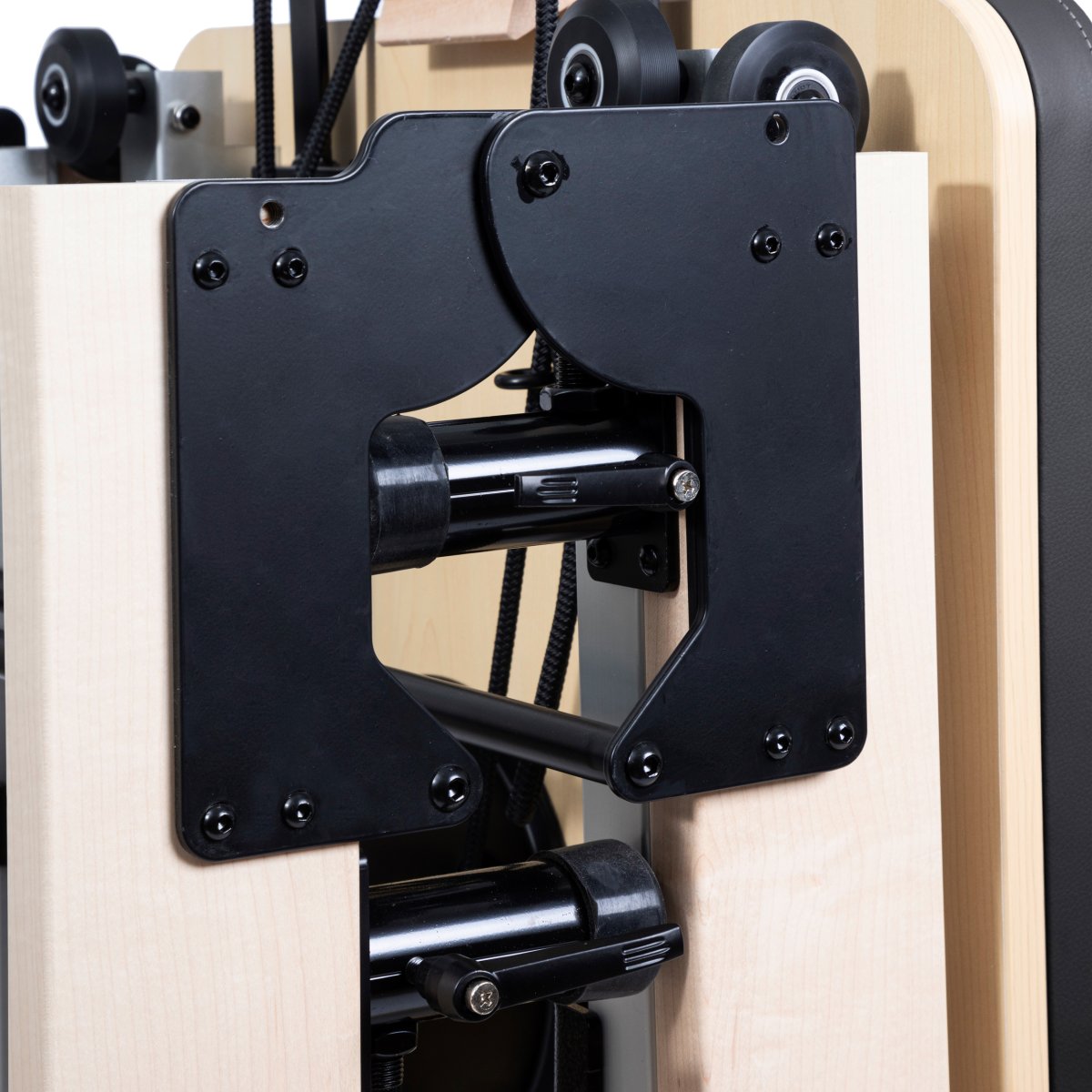

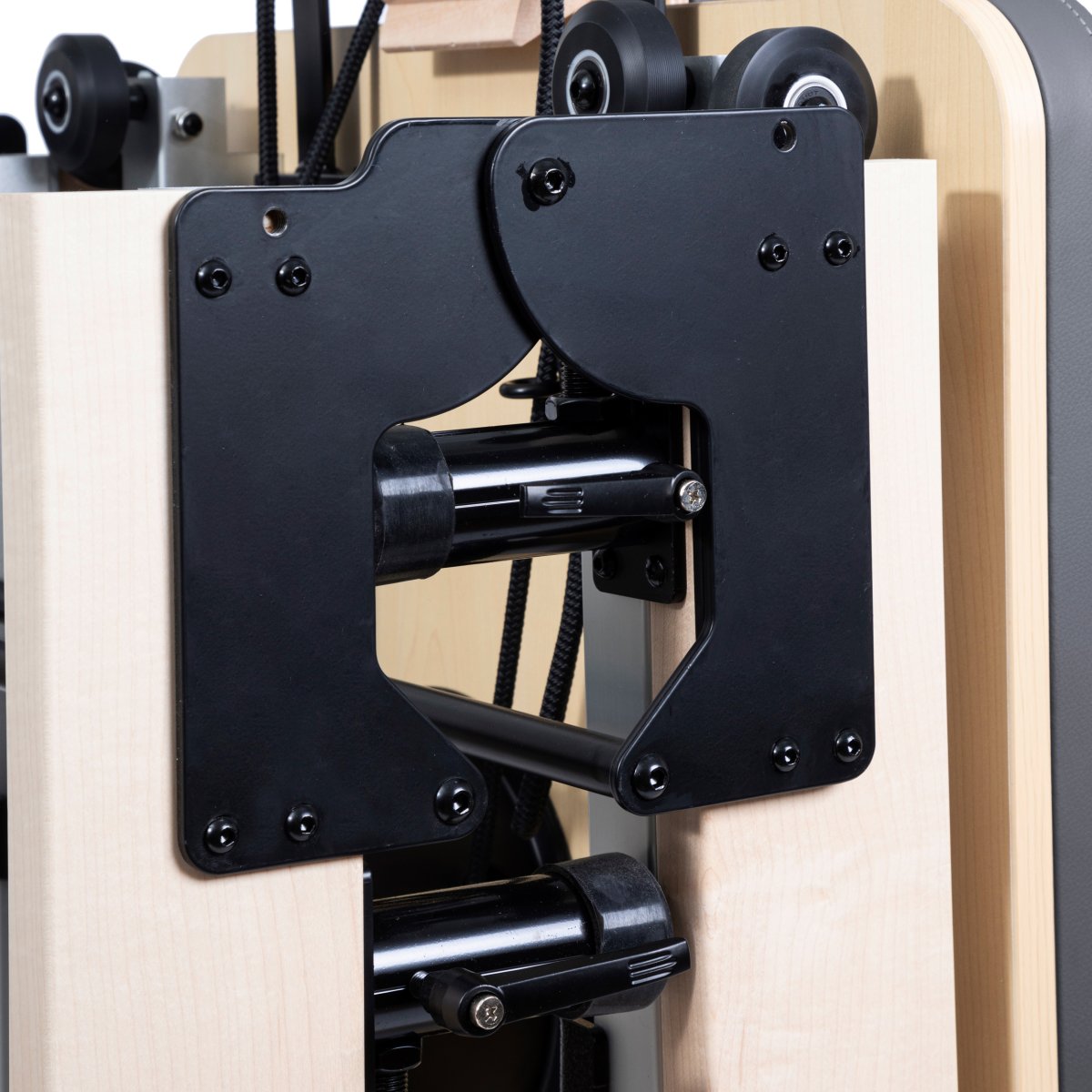

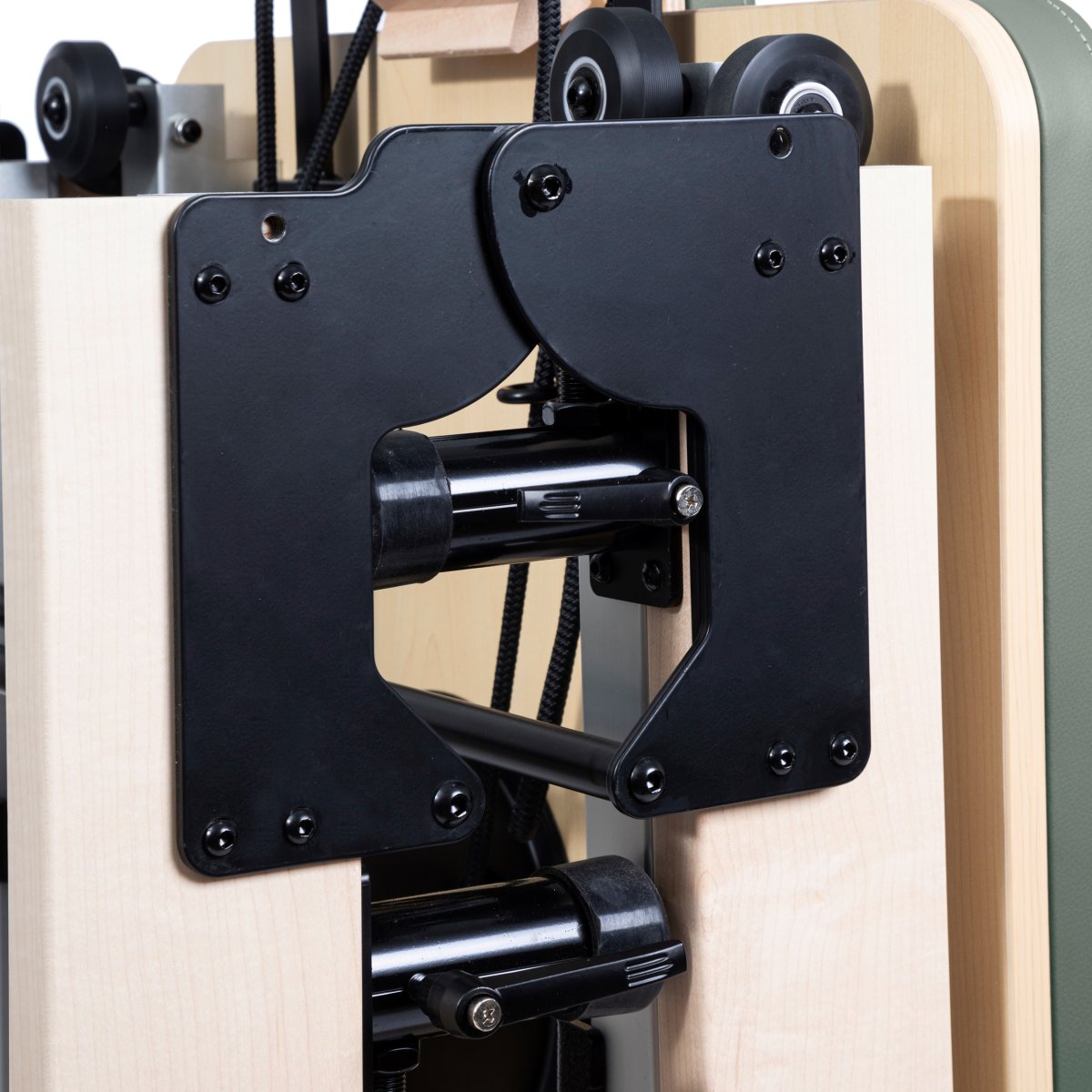

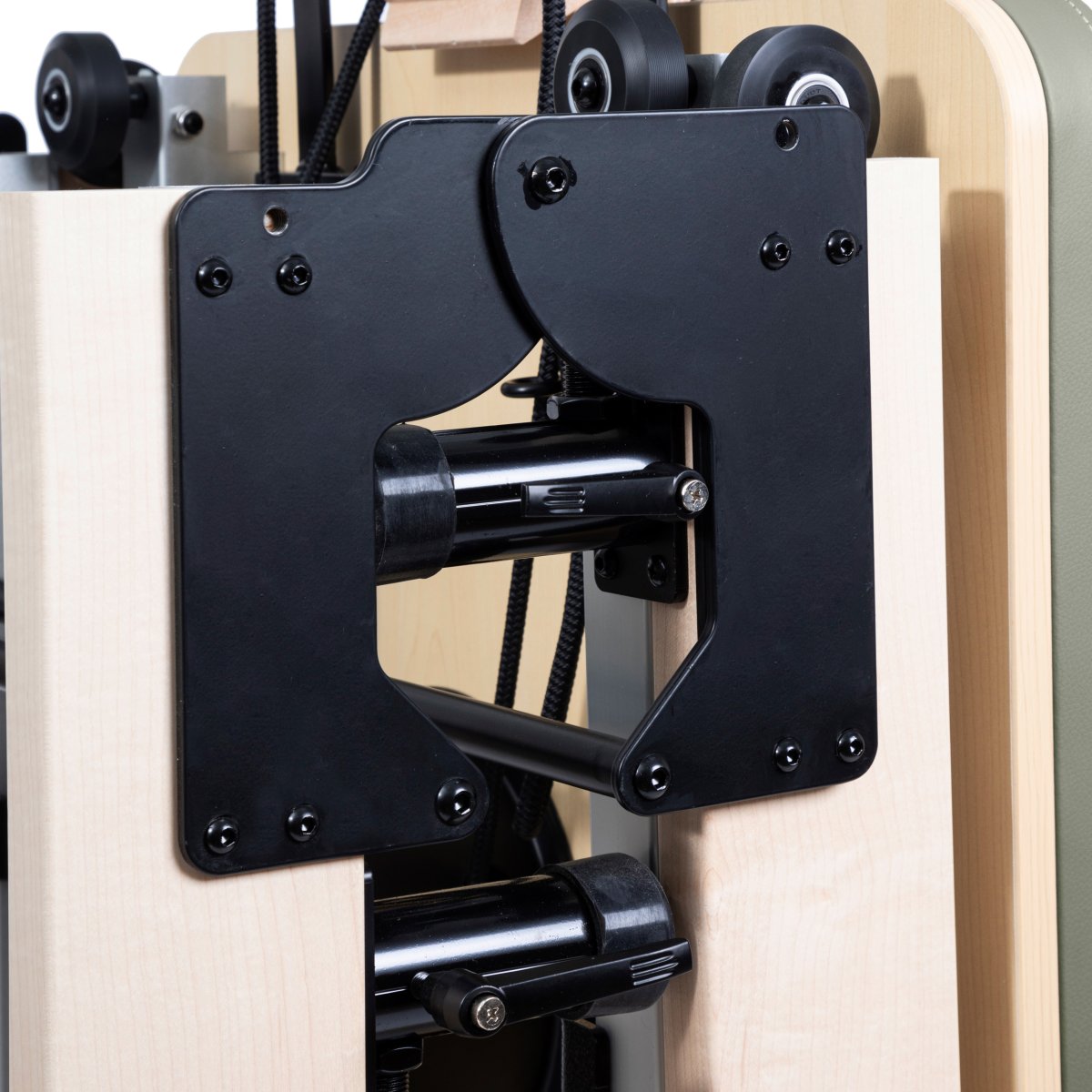

- Patented alignment system.
- Retractable automatic cord storage system that allows cords to be stored at the bottom of the carriage.

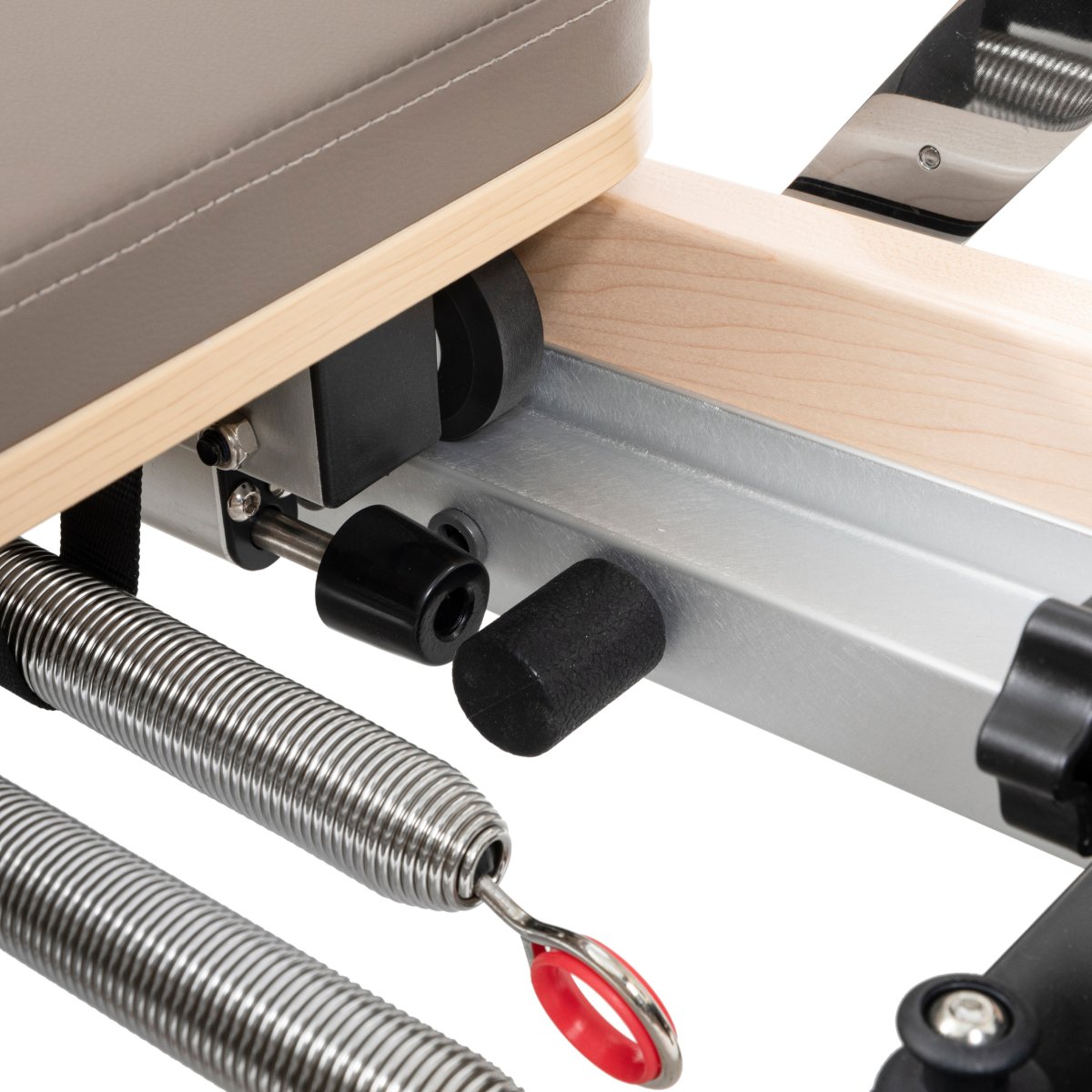

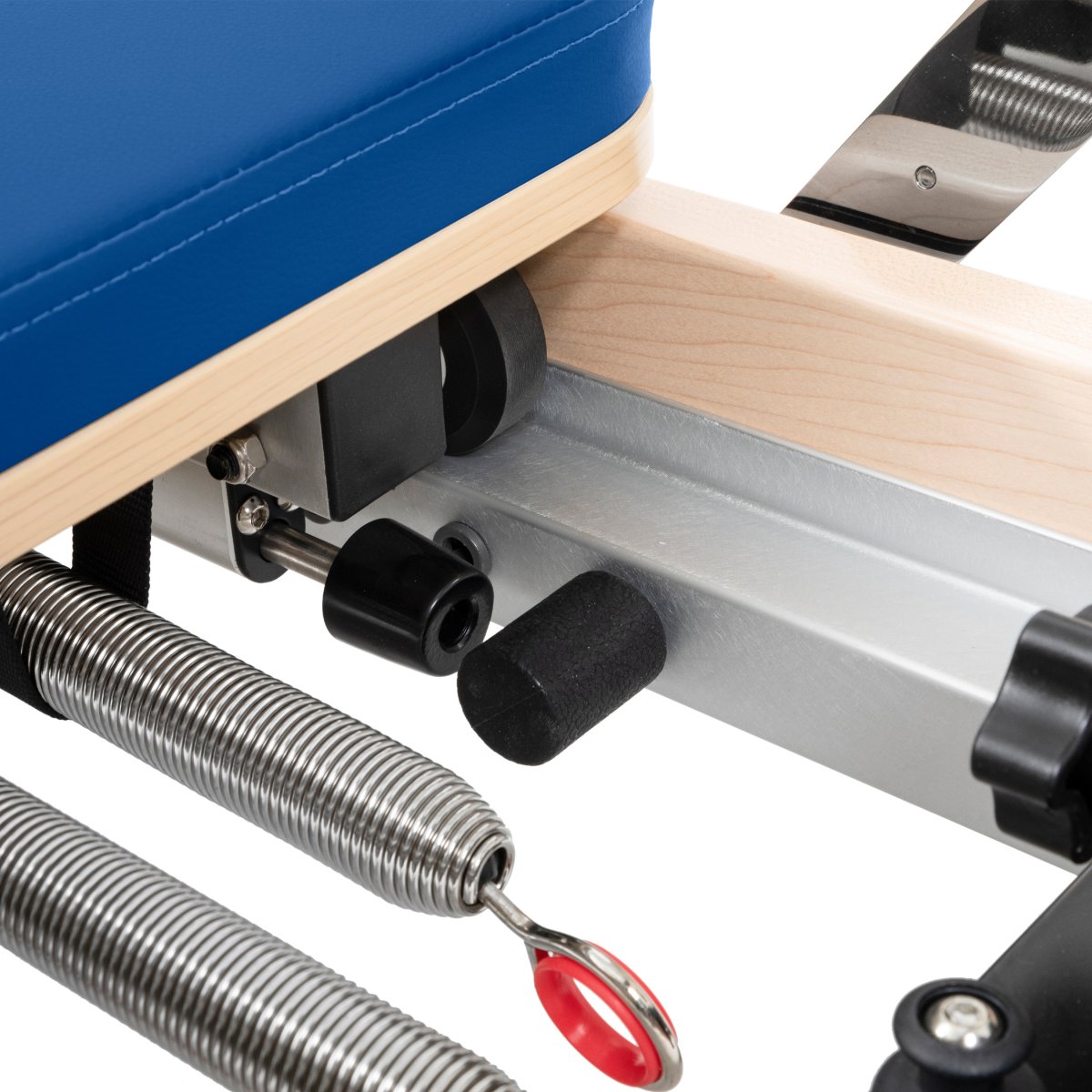

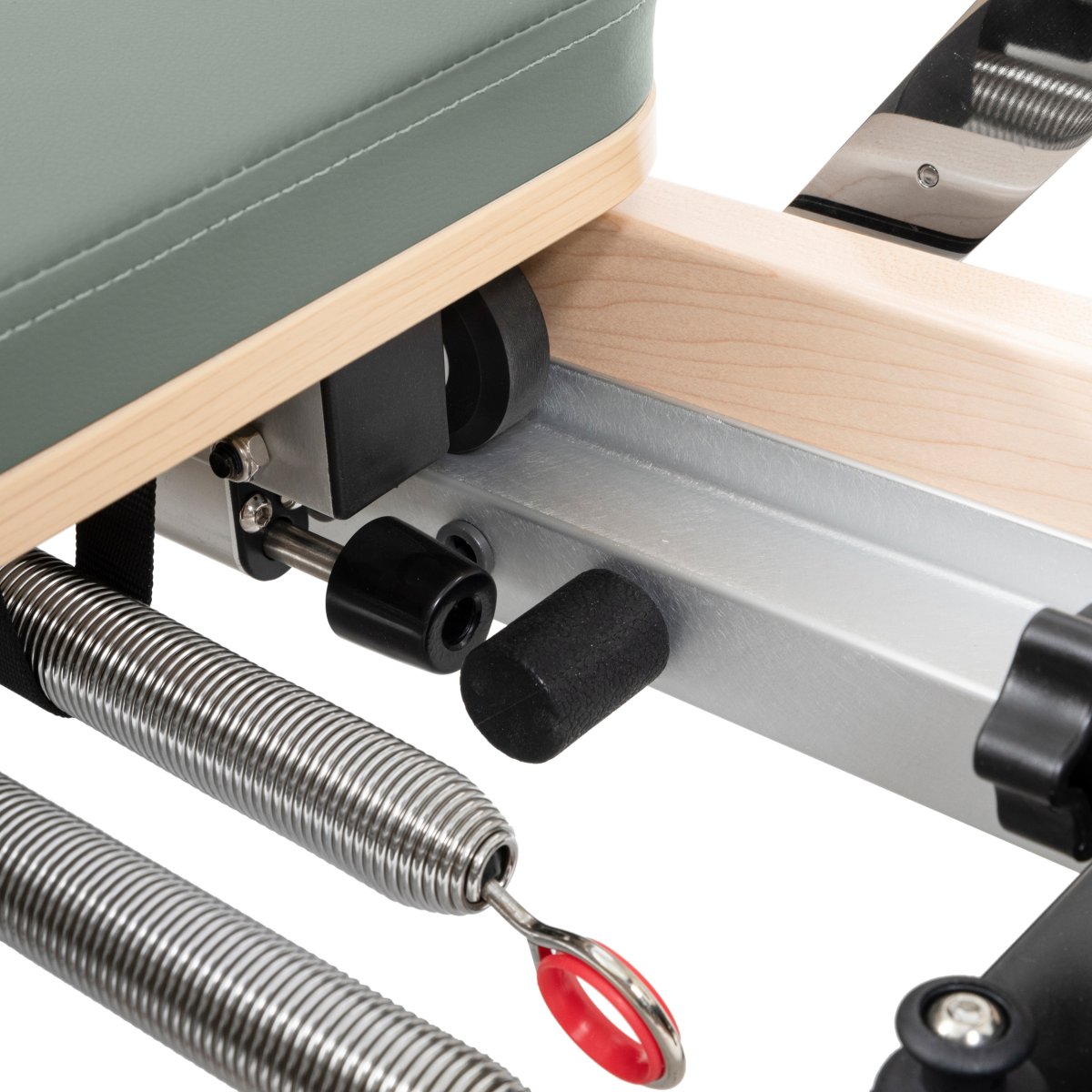

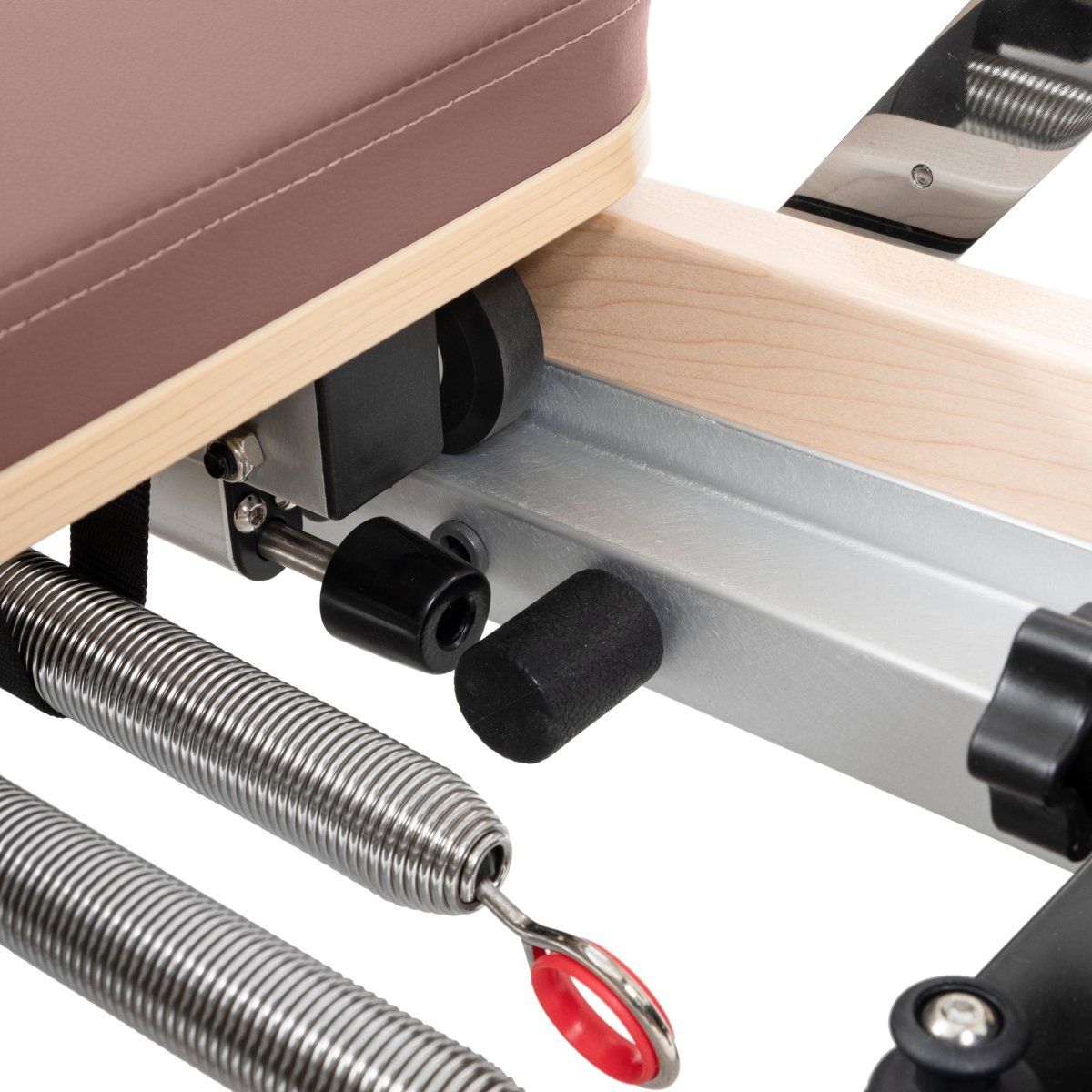

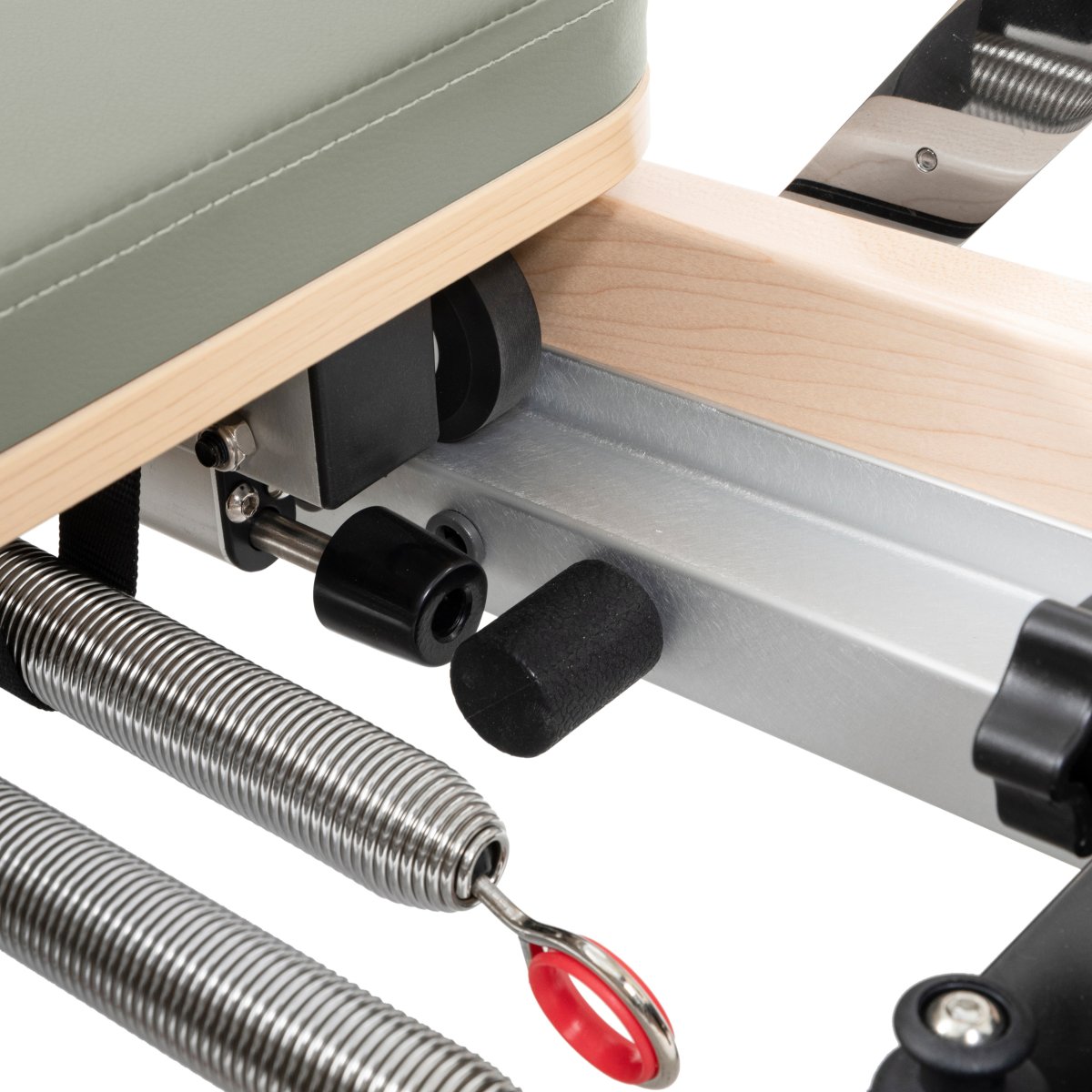

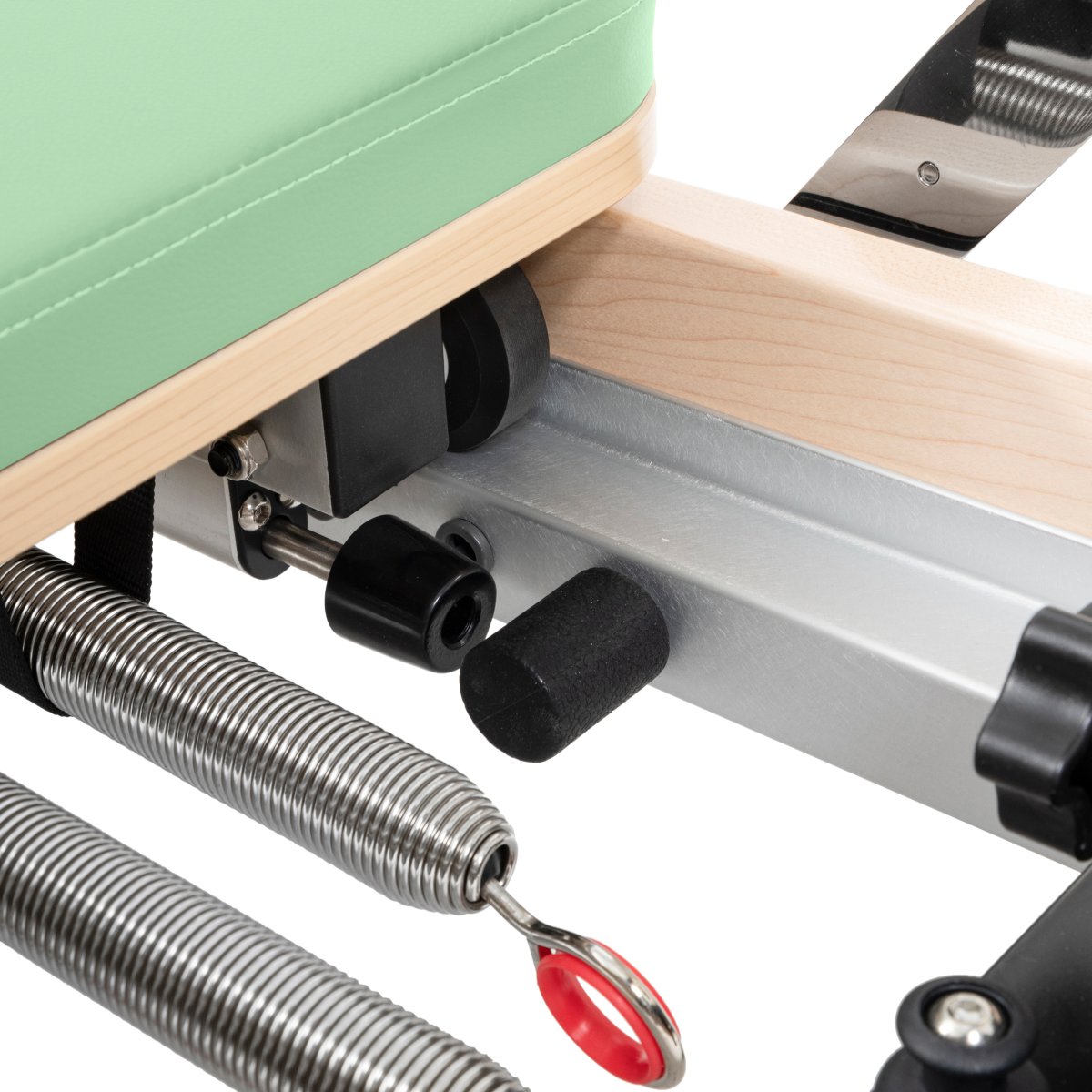

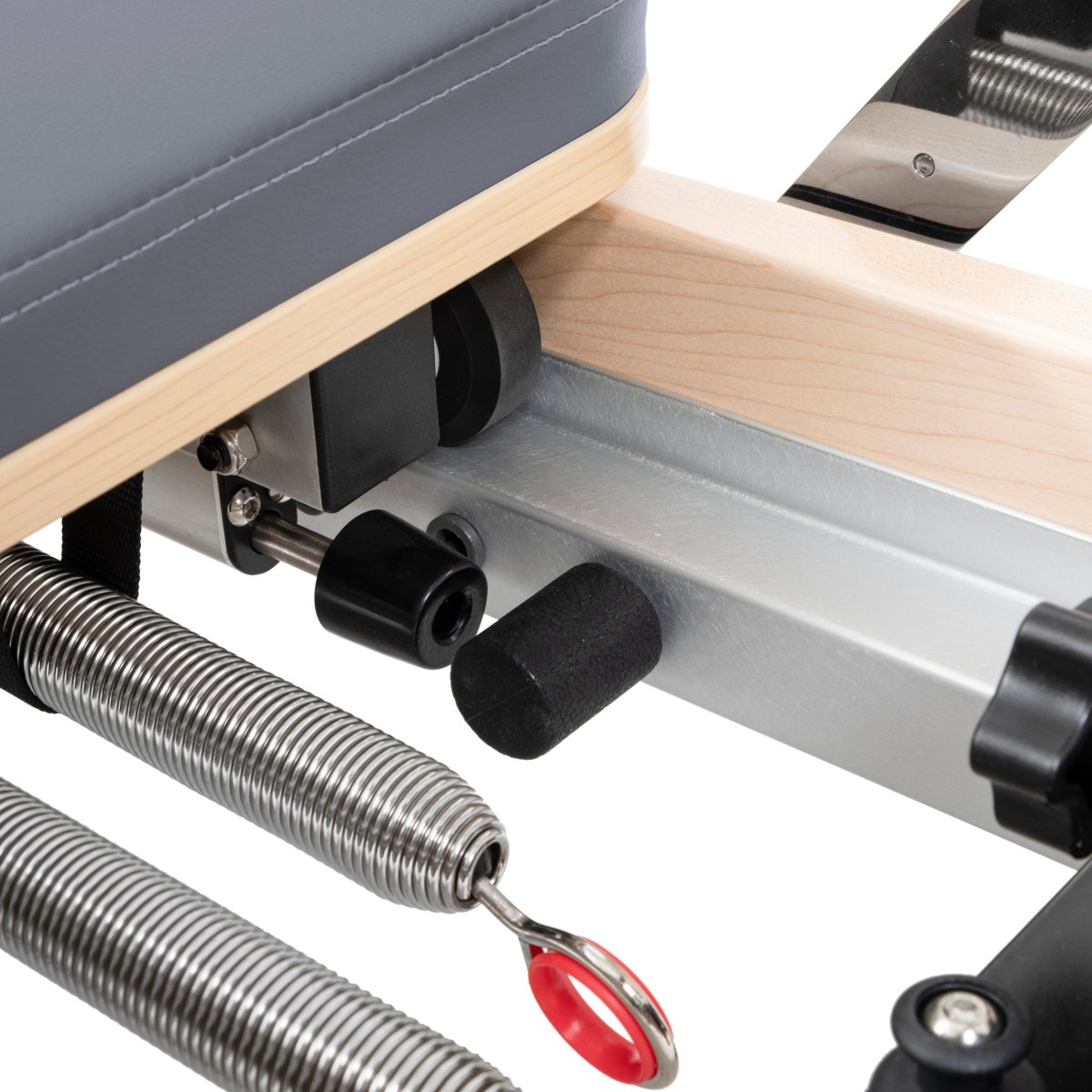

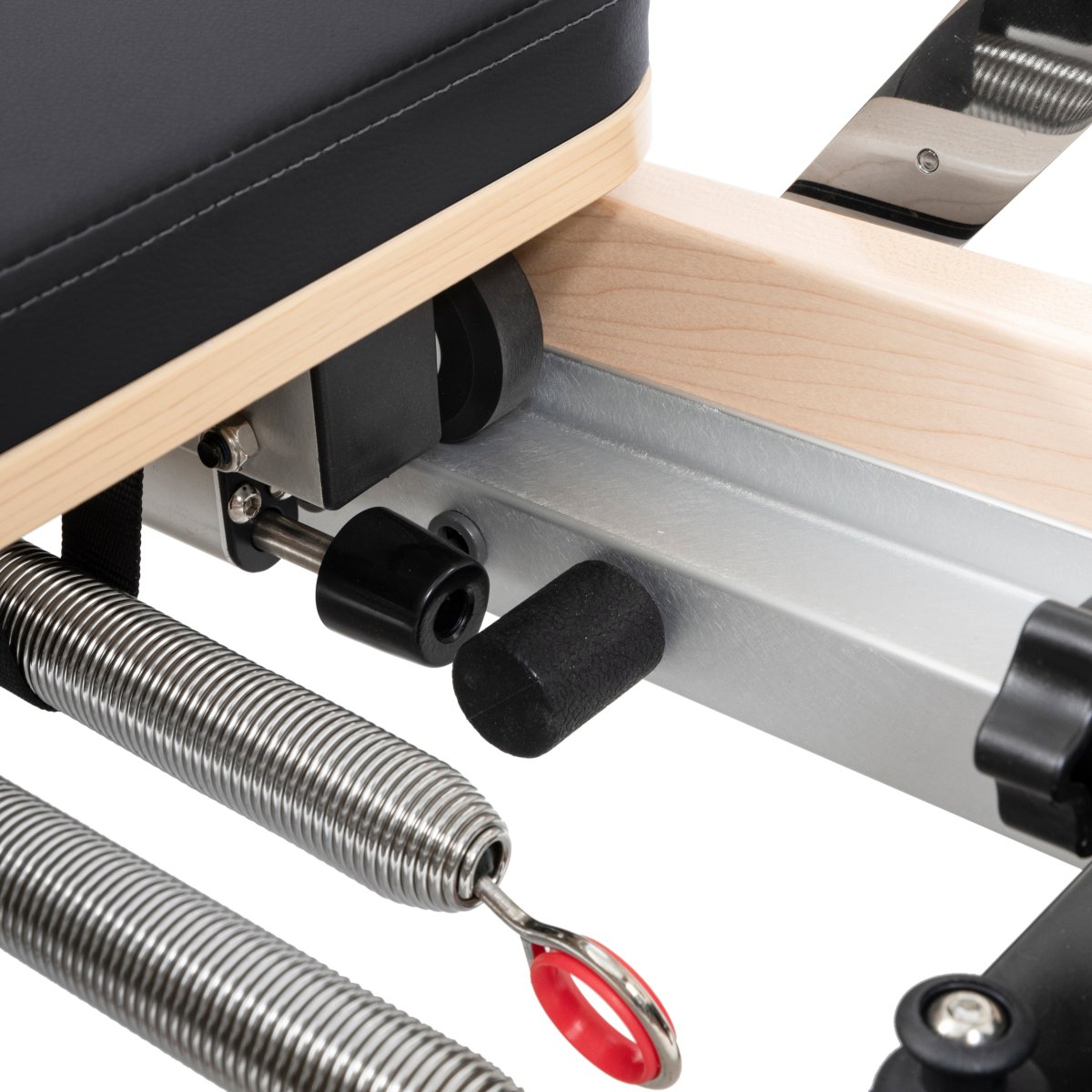

- Sophisticated bed cushioning mechanism that allows exercises to be performed smoothly, preventing noise and sudden impacts.

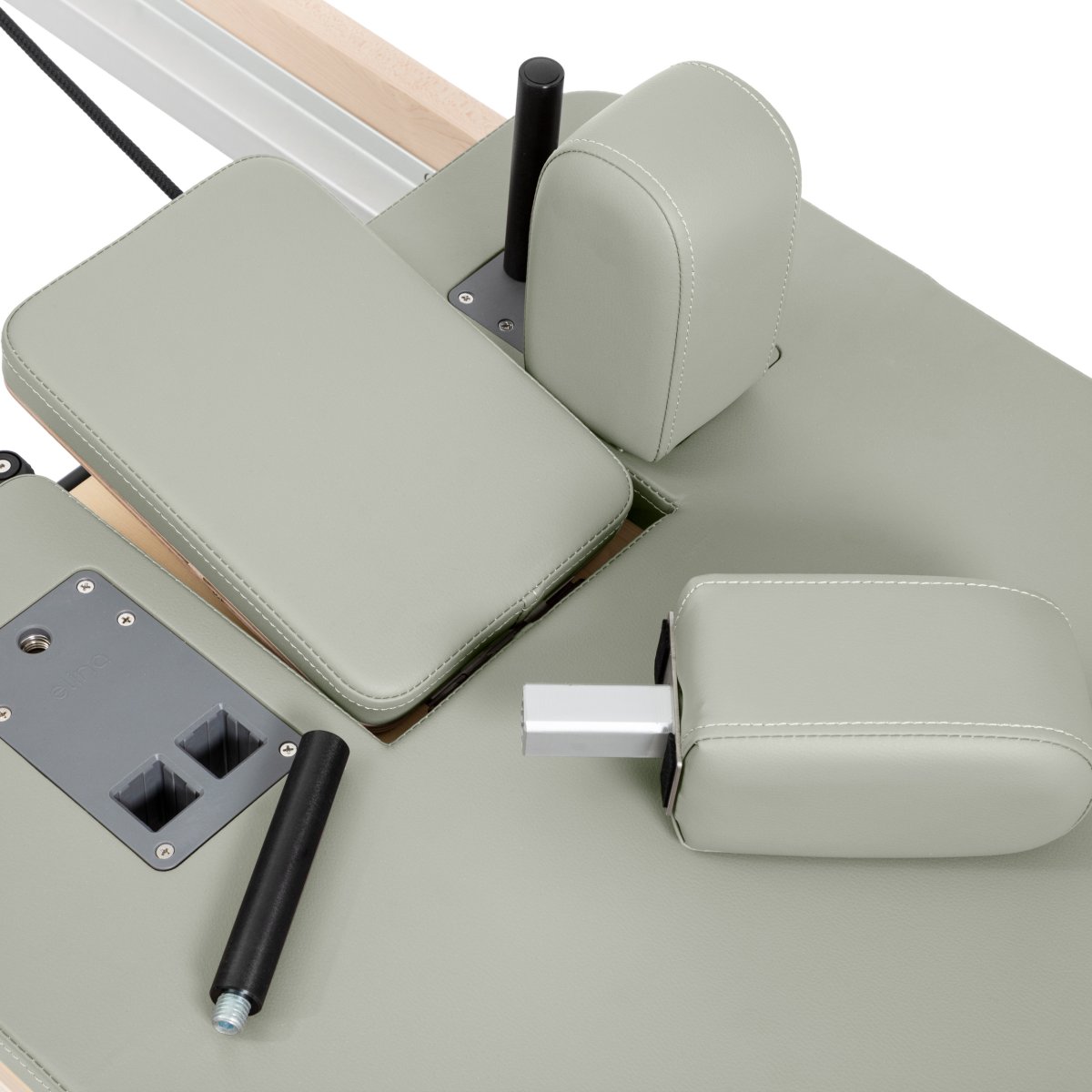

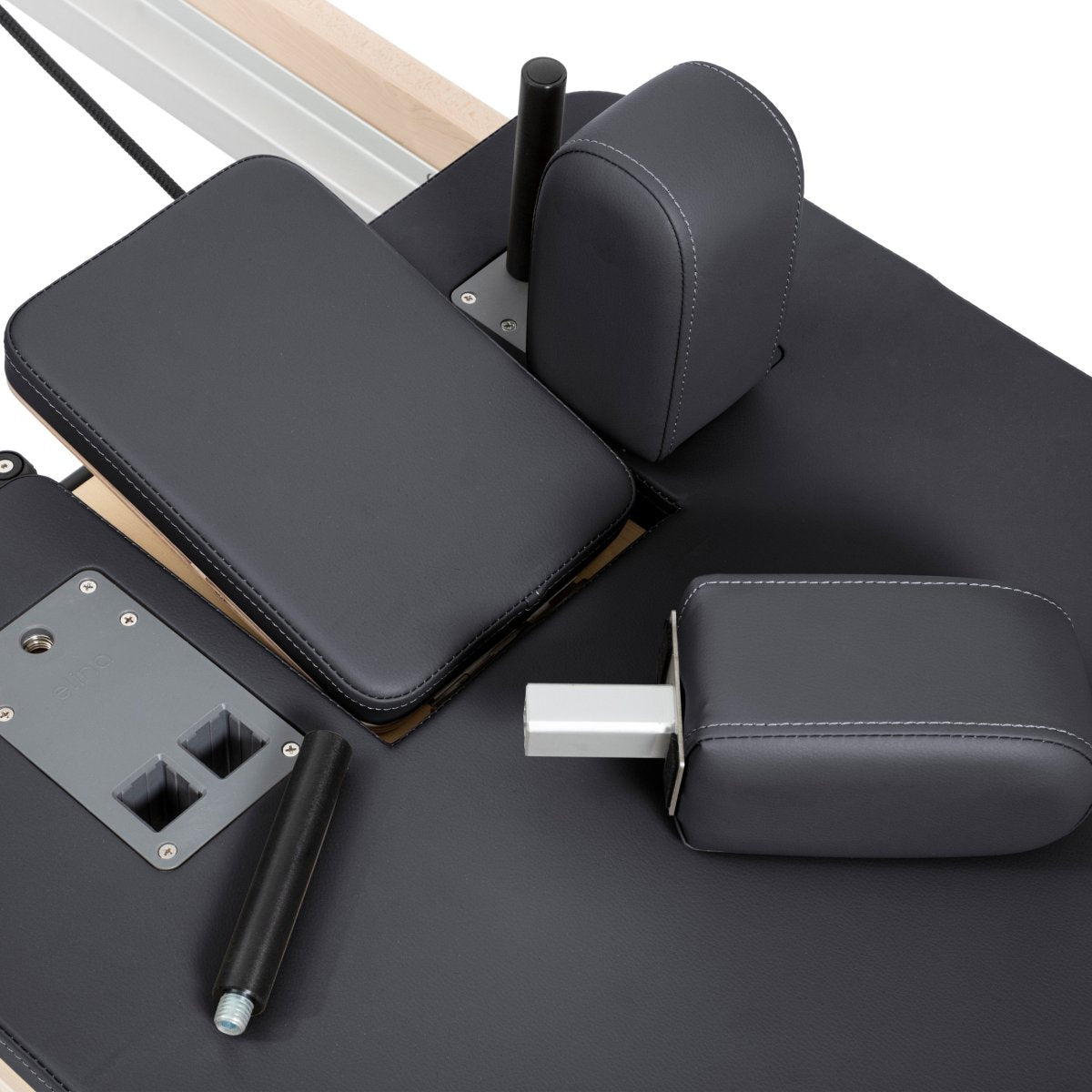

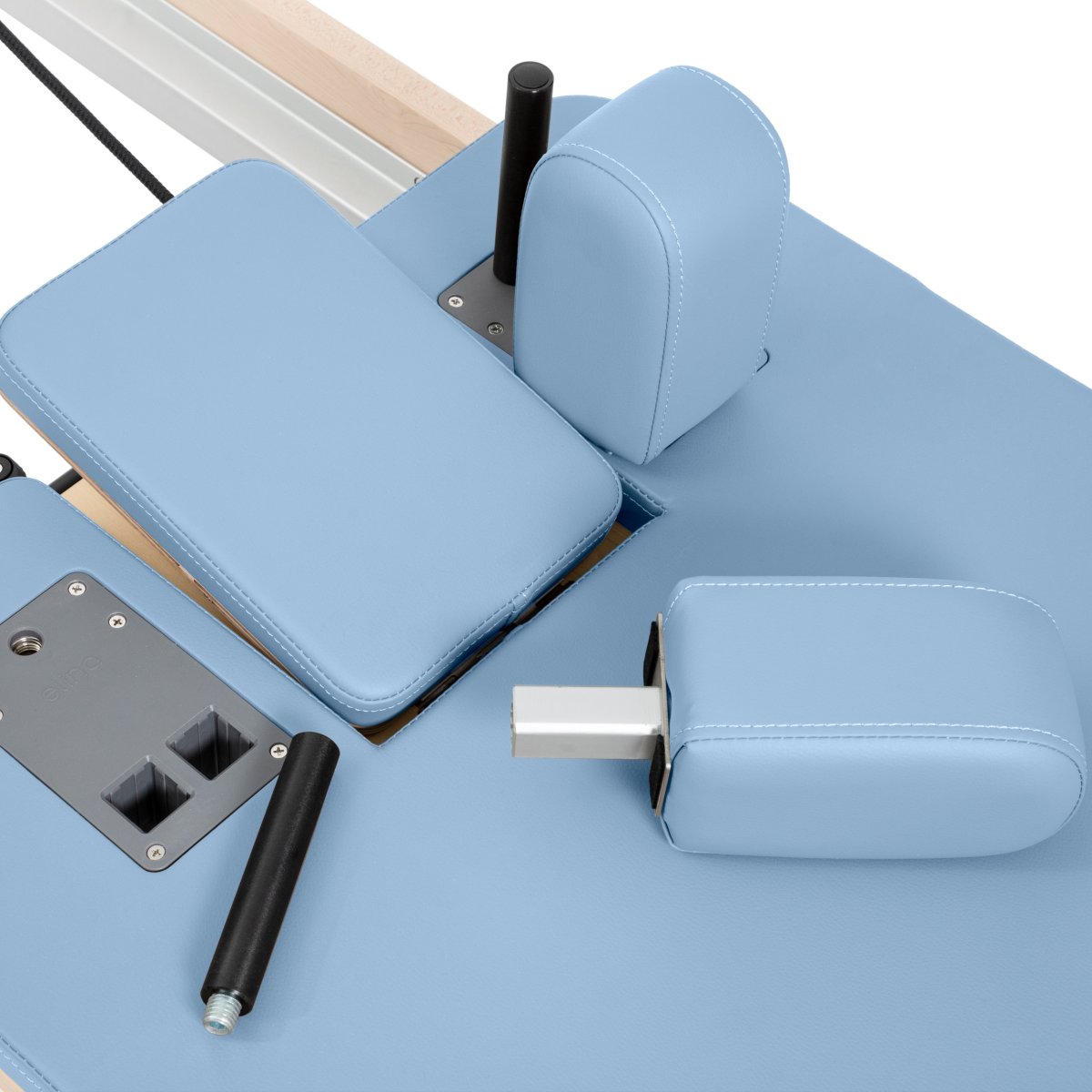

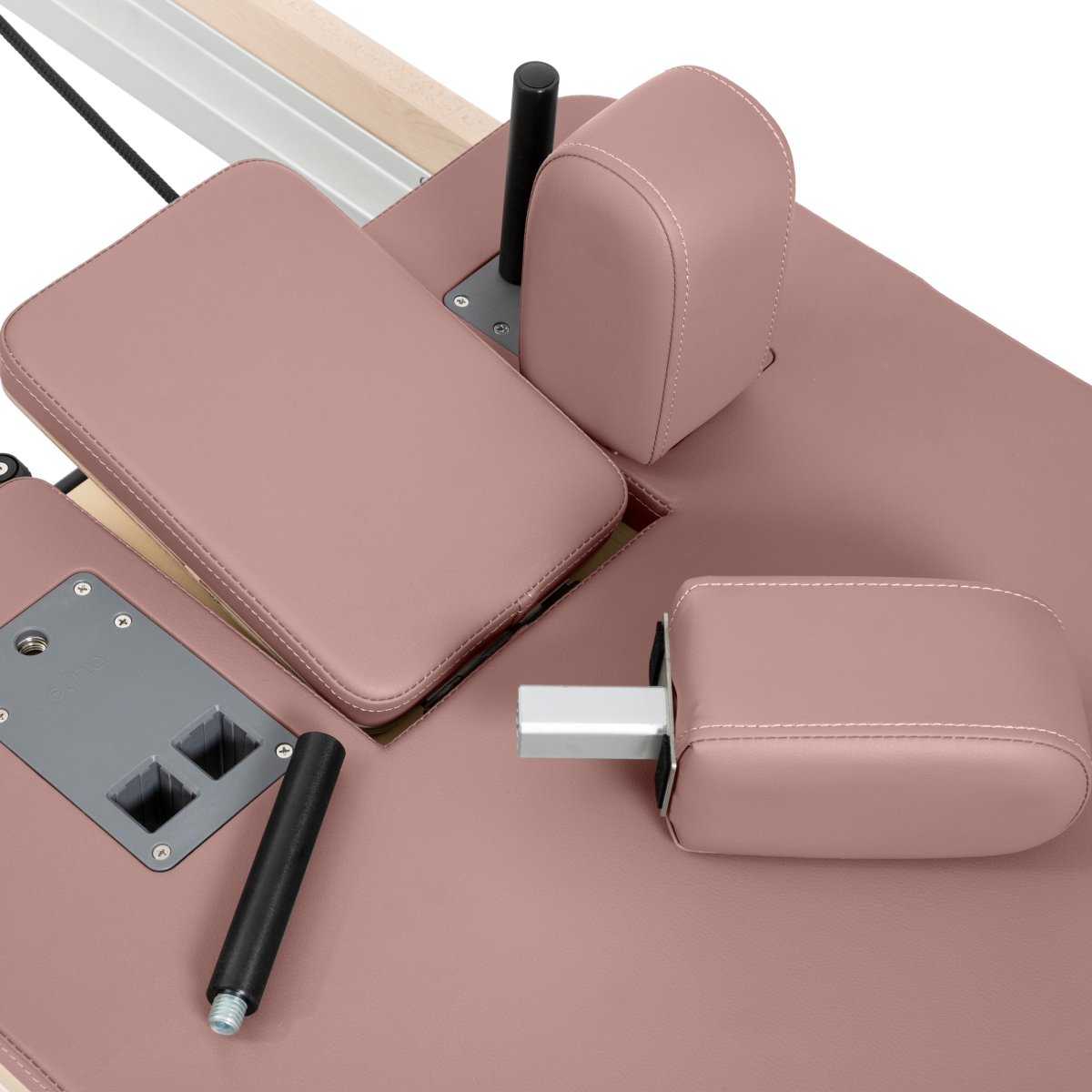

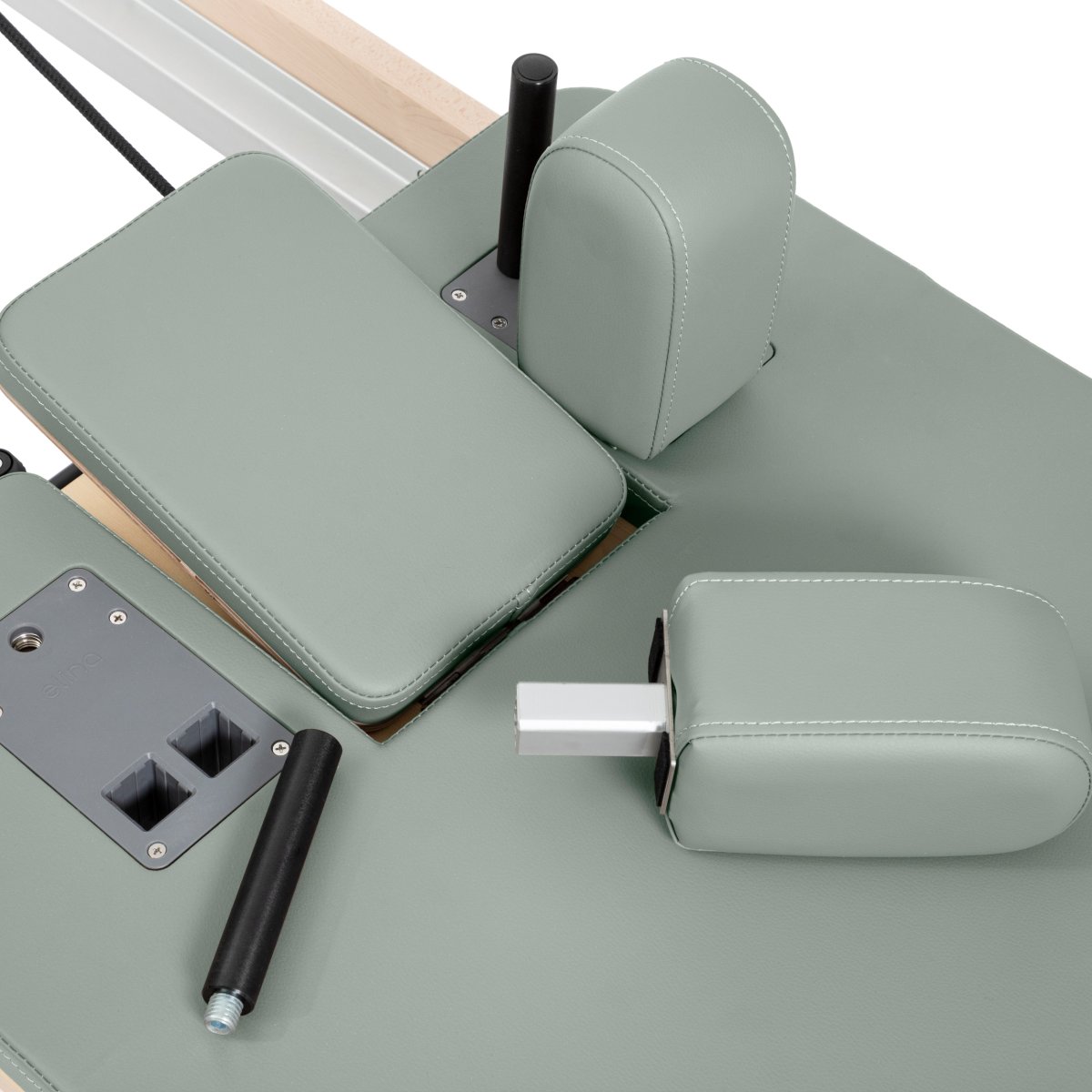

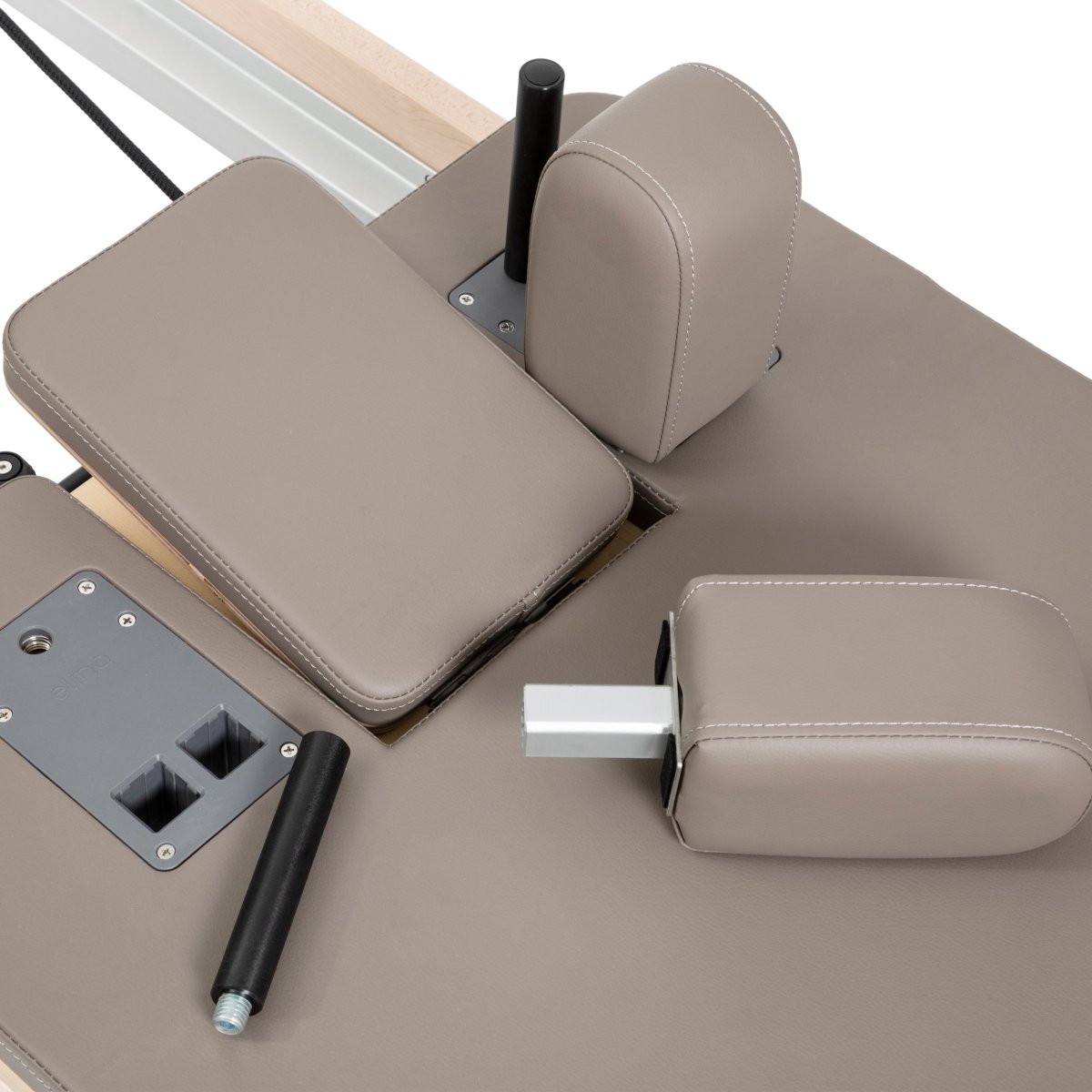

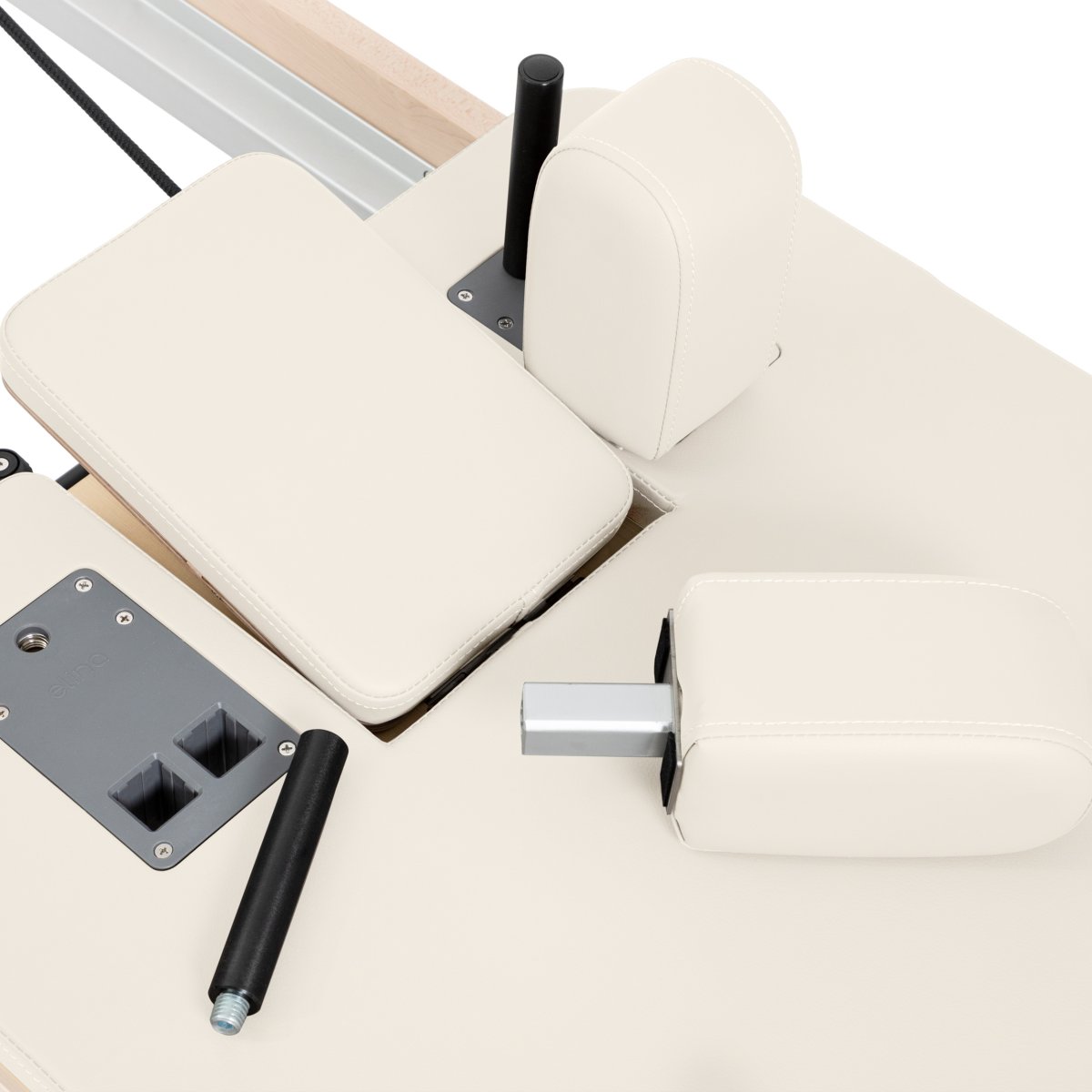

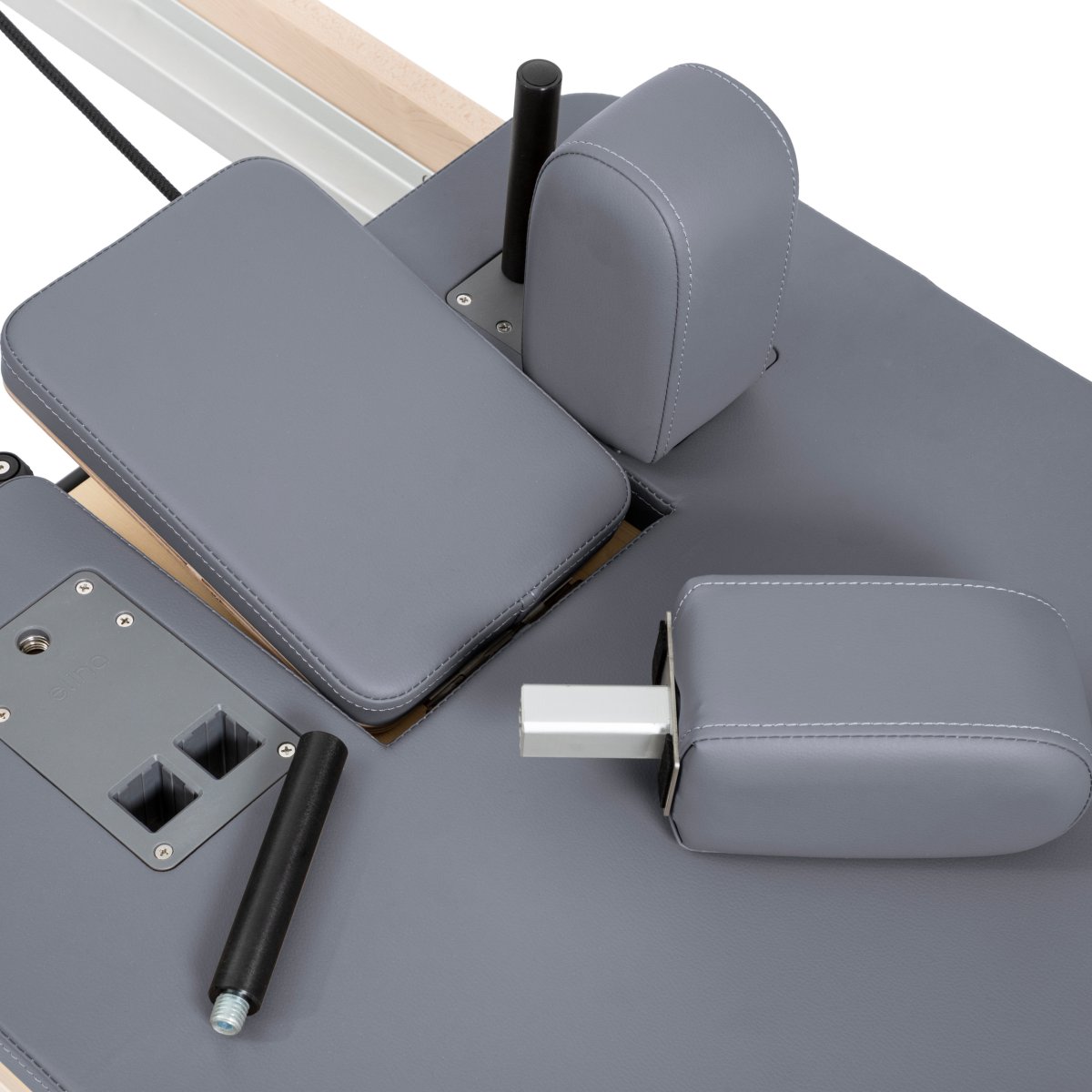

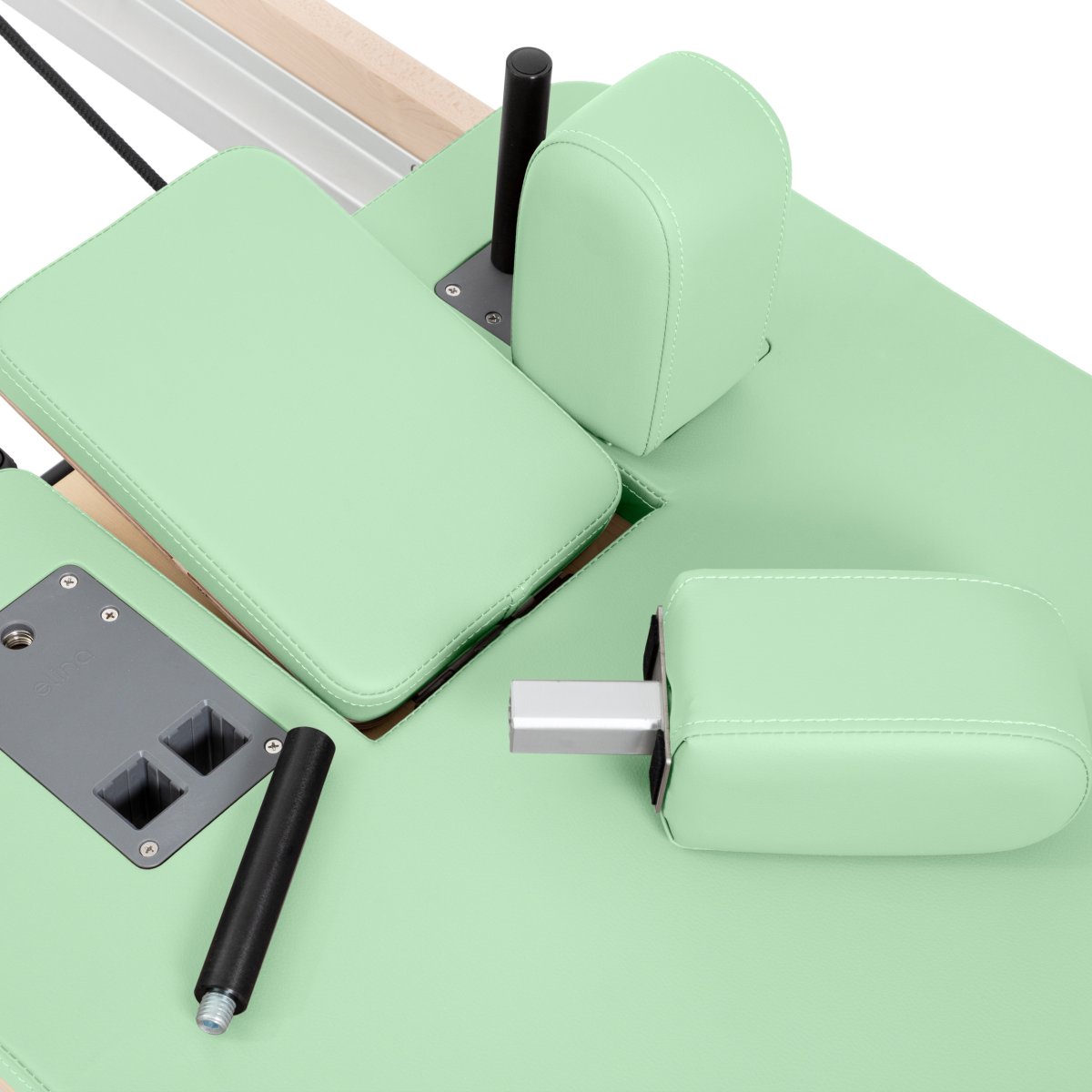

- Adjustable padded shoulder rests for easy placement and removal.

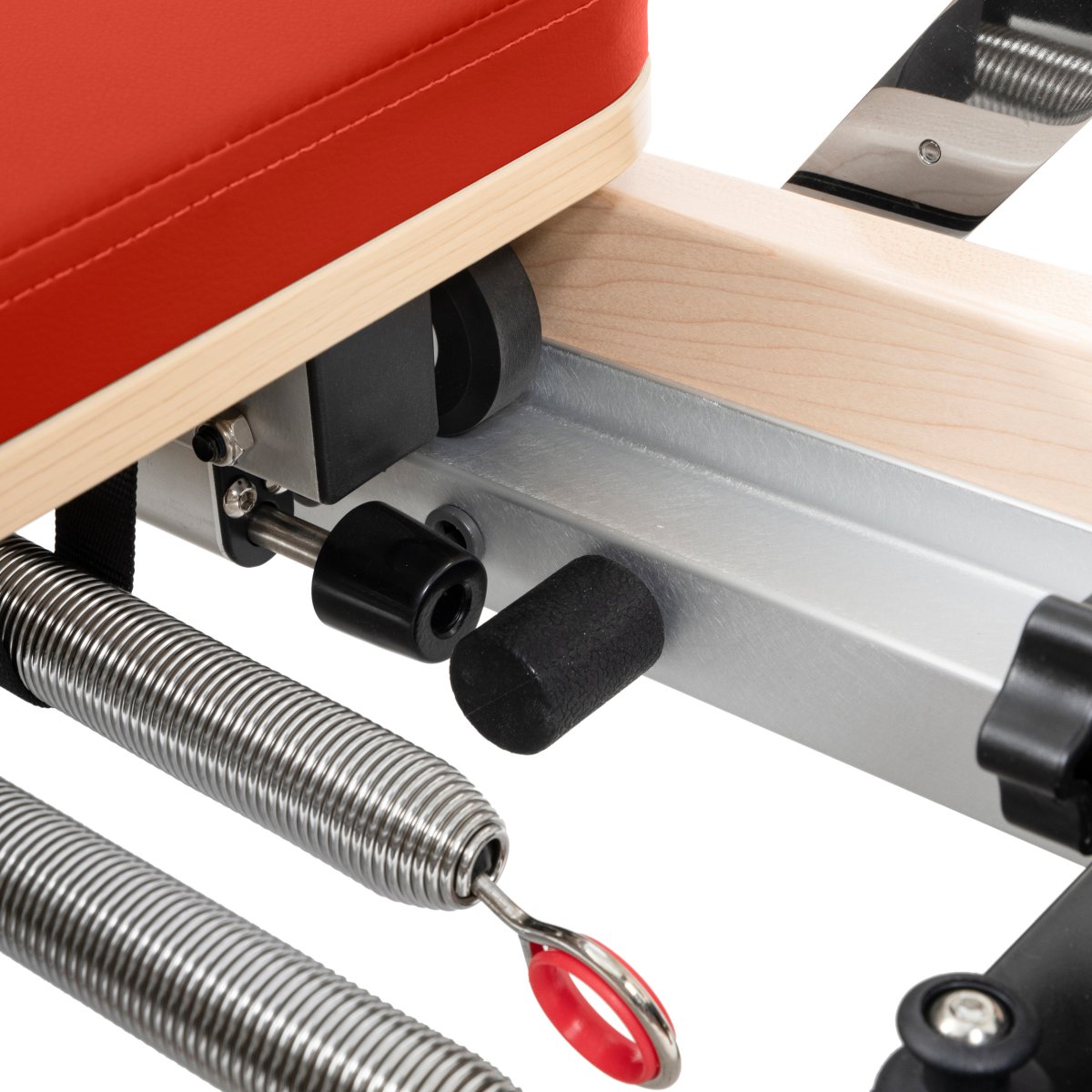

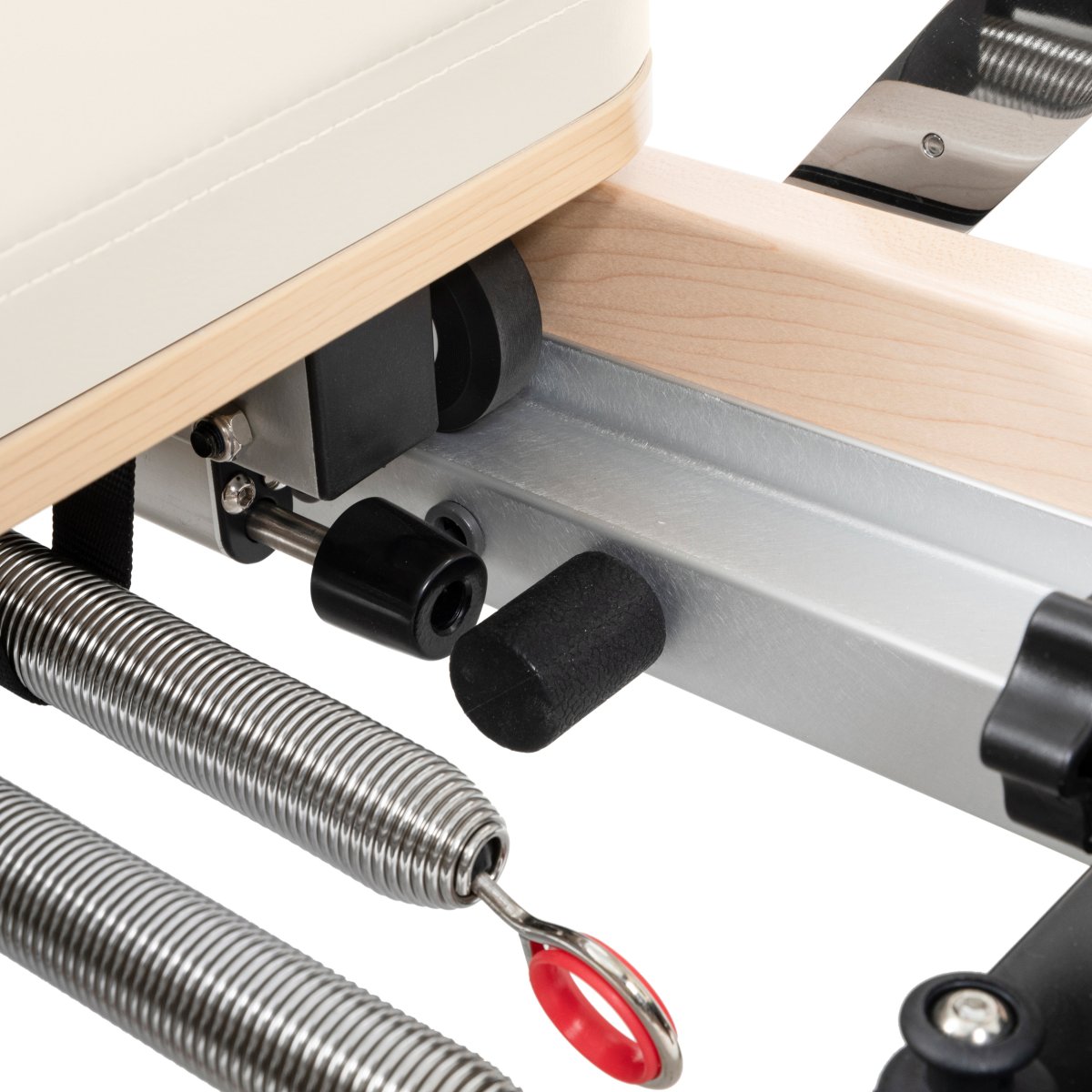

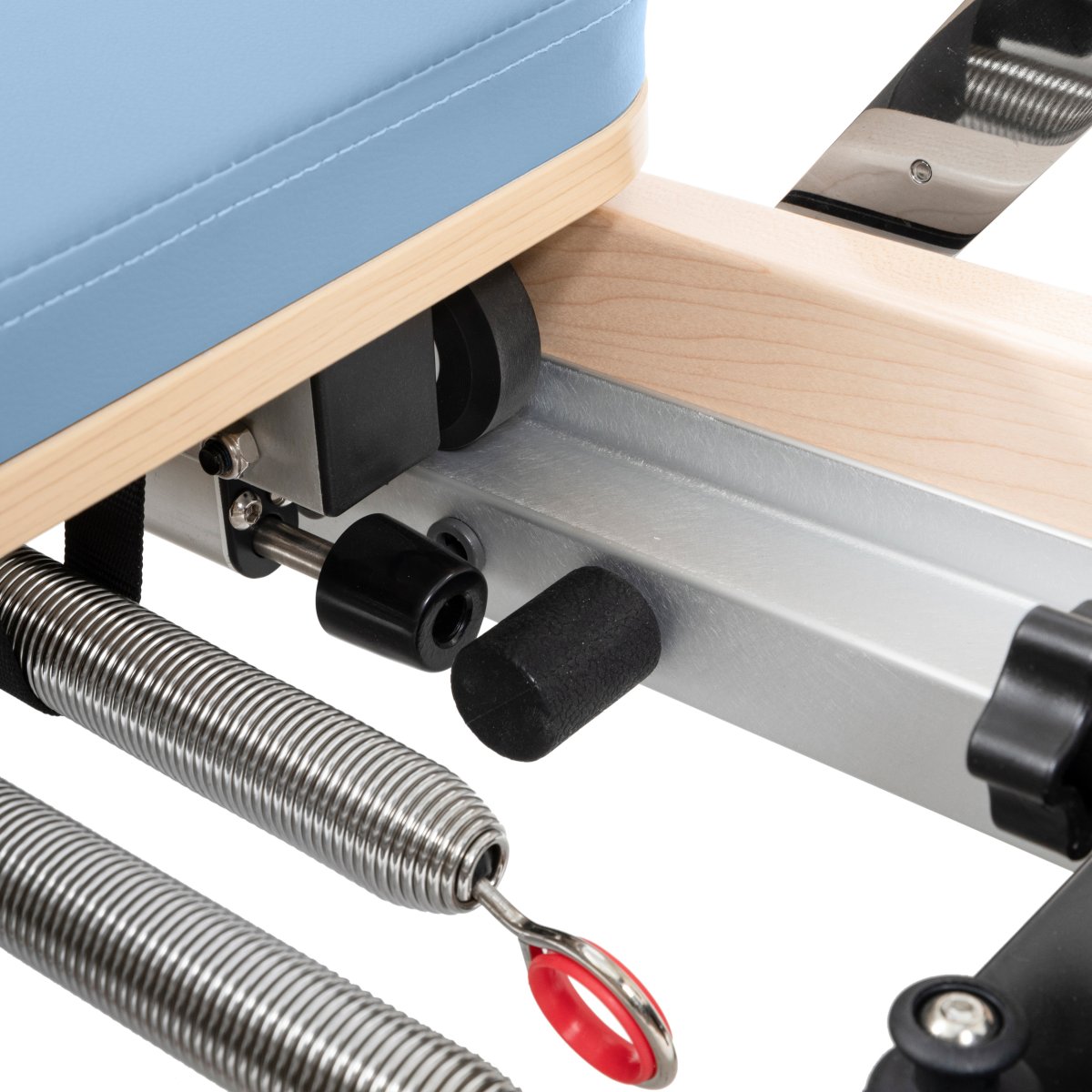

- Springs made from a high-quality, durable alloy that provides optimal resistance.
- Adjustable headrest with three positions.
- Removable foot support that is easy to place, with a lateral finish that facilitates gripping.
Includes
- Foldable Reformer for home use: Structure + carriage.
- Five high-precision springs with three resistance levels that can be combined based on the desired intensity.
- Two green springs with low resistance
- One yellow spring with medium resistance
- Two red springs with high resistance.
- Wide padded box that makes it easy to place between the shoulder rests and supports, providing complete stability. It can be placed both parallel and perpendicular to the reformer.
- Padded shoulder rests that are very easy to insert and remove.
- Sturdy and wide jump board designed to facilitate foot placement and easy positioning and removal.
- Padded foot platform.
- One set of hand straps and one set of double-loop hand and foot straps.
- One set of ropes.
- Anti-slip mat.
- Retractable automatic cord storage system.
- 8 wheels for transporting the Foldable Reformer.
- 4 adjustable legs with 2 height options.
Dimensions
Reformer Length: 92.52 in | 235 cm
Reformer Width: 24.02 in | 61 cm
Reformer Structure Height: 11.02 in | 28 cm (With folded legs) 13.98 in | 35.5 cm (With extended legs. Maximum height)
Bed Length: 39.76 in | 101 cm (Total) 29.53 in | 75 cm (Under shoulder rest)
Bed Height: 14.17 in | 36 cm
Weight: 158.733 lb | 72 kg (without accessories)
Max Weight Supported: 330.7 lb | 150 kg
Box Dimensions: 26.77 in long X 15.35 in wide X 11.02 in high | 68 cm long X 39 cm wide X 28 cm high
Jump Board: 22.44 in long X 23.03 in wide | 57 cm long X 58.5 cm wide
Maximum Carriage Travel: 74.80 in | 190 cm
Options
Colors
Our reformers are available in nine standard upholstery colors (black, gray, blue, green, red, ivory, ocean blue, cream, and mocha) and over one hundred customizable upholstery colors, available upon request (contact us for details).
Height
Available in two heights: 28 cm and 35.5 cm, measured from the reformer bed to the floor with the legs extended.
Warranty
Two years warranty
Maintenance Tips
Wheels, Adjustable Bars, and Guides
To ensure the proper functioning of the wheel bearings, the adjustable spring bars, and the guides on which the carriage slides, periodic cleaning and lubrication are recommended.
Upholstery
Clean with water and a microfiber cloth.
Springs
To maintain the tension and safety of the springs, it is recommended to replace them approximately every two years, although this will depend on the intensity of use.
Product Details
| SPECIFICATIONS |
DETAILS |
| Reference |
ELN 300692 |
| Length |
92.52 in | 235 cm
|
| Width |
24.02 in | 61 cm
|
| Structure height |
11.02 in | 28 cm (Legs folded) 13.98 in | 35,5 cm (Legs extended. Maximum height) |
| Maximum height |
31.50 in | 80 cm (With jump board) |
| Width of the bed |
14.17 in | 36 cm |
| Bed length |
39.76 in | 101 cm (Total) 29.53 in | 75 cm (Under shoulder pad) |
| Weight |
158.733 lb | 72 kg |
| Box |
Yes |
| Foot Platform |
Yes |
| Jumping Board |
22.44 in long X 23.03 in wide | 57 cm long X 58.5 cm wide |
| Double Loop Wings (Hands & Feet) |
Yes |
| Padded Hands |
Yes |
| Simple Handles |
Yes |
| Tower |
No |
| Removable / Adjustable Shoulder Pads |
Yes | 4 positions |
| Springs |
2 reds, 2 greens, 1 yellow |
| Pulley Ropes |
Yes |
| Footrest |
Yes |
| Structural Material |
American maple wood |
| Rope Anchoring System |
Retractable |
| Tower Possibility |
No |
| Mat |
No |
| Mini Tower |
No |
| Spring Bar |
Fixed | 2 heights |
| Pulley Positions |
Yes |
| Adjustable Pulley Height |
No |
| Adjustable Pulley Width |
No |
| Transport Wheels |
Yes |
| Bed Brake Mechanism |
Cushioned, 2 positions |
| Foldable |
Yes |
| Vertical Position |
No |
| Roll-down Bar |
No |
| Box Size |
26.77 in length X 15.35 in width X 11.02 in height | 68 cm length X 39 cm width X 28 cm height |
| Push-bar |
No |
| Foot Bar System |
Traditional 6 positions |
| Foot Bar Displacement |
No |
| Headrest Adjustment |
3 positions |
| Foot Restraint Strap |
No |
| Chop Wood |
No |
| Safety Strap |
No |
| Stackable |
No |
| Structural Warranty |
5 years |
| Maximum Supported Weight |
150 Kg / 330,7 lb |
